Basic Procedure for Wipe Settings
Chapter 5 Wipes
When Angle is selected
When Speed is selected
When Magnitude is selected

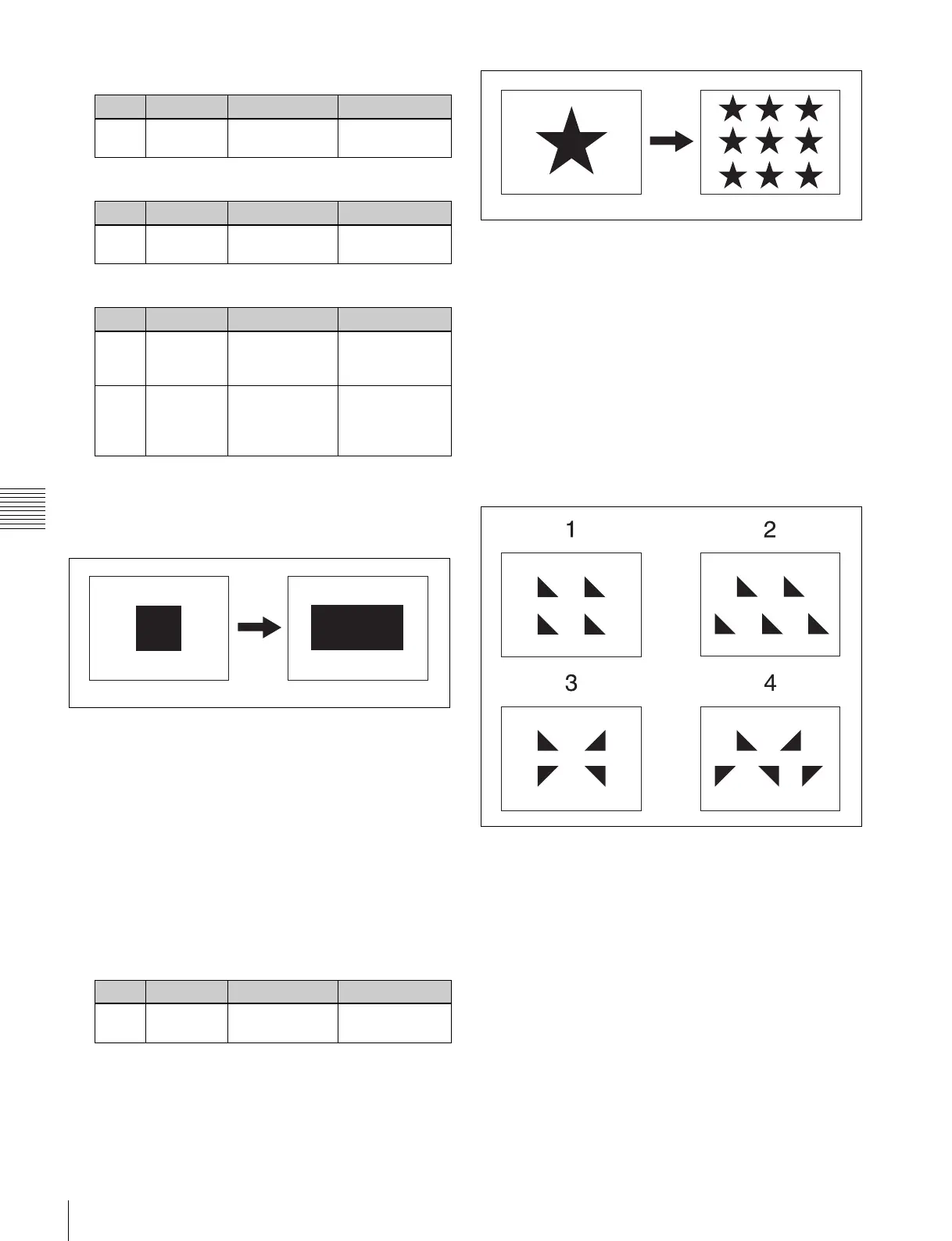

Setting the wipe pattern aspect ratio
(Aspect ratio)
You can freely change the aspect ratio of the pattern.
A negative value of the parameter Aspect stretches the
pattern vertically; a positive value stretches the pattern
horizontally.
You can set the aspect ratio independently for the main
pattern and sub pattern.
1
In the M/E-1 >Wipe menu, select HF5 ‘Main Modify.’
The Main Modify menu appears.
2
Press [Aspect], turning it on.
3
Set the following parameter.
Setting the wipe pattern replication (Multi)
The same pattern can be repeated horizontally and
vertically or both, up to 63 times. You can also change the
orientation of alternate copies, or change the position.
• The parameter H Multi determines the number of pattern
replications horizontally, and the parameter V Multi
determines the number of pattern replications vertically.
• The parameter Shift determines the manner of
replication.
At a value of –100.00, the pattern of the adjacent odd-
numbered column on the left lines up with the central
coordinate horizontally.
At a value of +100.00, the pattern of the adjacent odd-
numbered column on the right lines up with the central
coordinate horizontally.
For an independent key transition wipe, you can use the
“Invert Type” parameter to select from the following four
types of replication pattern.
1: All replications in the same orientation
2: Even-numbered rows staggered
3: Even-numbered columns and rows inverted
4: Even-numbered columns and rows inverted, and even-
numbered rows staggered
You can set pattern replication independently for the main
pattern and sub pattern.
1
In the M/E-1 >Wipe menu, select HF5 ‘Main Modify.’
The Main Modify menu appears.
2
Press the [Multi] button, turning it on.
3
Set the following parameters.
Knob Parameter Adjustment Setting values
1 Angle Angle of pattern
rotation
–100.00 to
+100.00
Knob Parameter Adjustment Setting values
1 Speed Rotation rate of
pattern
–100.00 to
+100.00
Knob Parameter Adjustment Setting values
1 Angle Angle of pattern
rotation at start
of transition
–100.00 to
+100.00
2 Magnitude Angle of
rotation through
course of
transition
–200.00 to
+200.00
Knob Parameter Adjustment Setting values
1 Aspect Aspect ratio –100.00 to
+100.00
Aspect Off Aspect On
Multi Off
Multi On
To Next Page
