Serial Port Settings (Serial Port Assign Menu)
Chapter 22 DCU Setup (DCU)

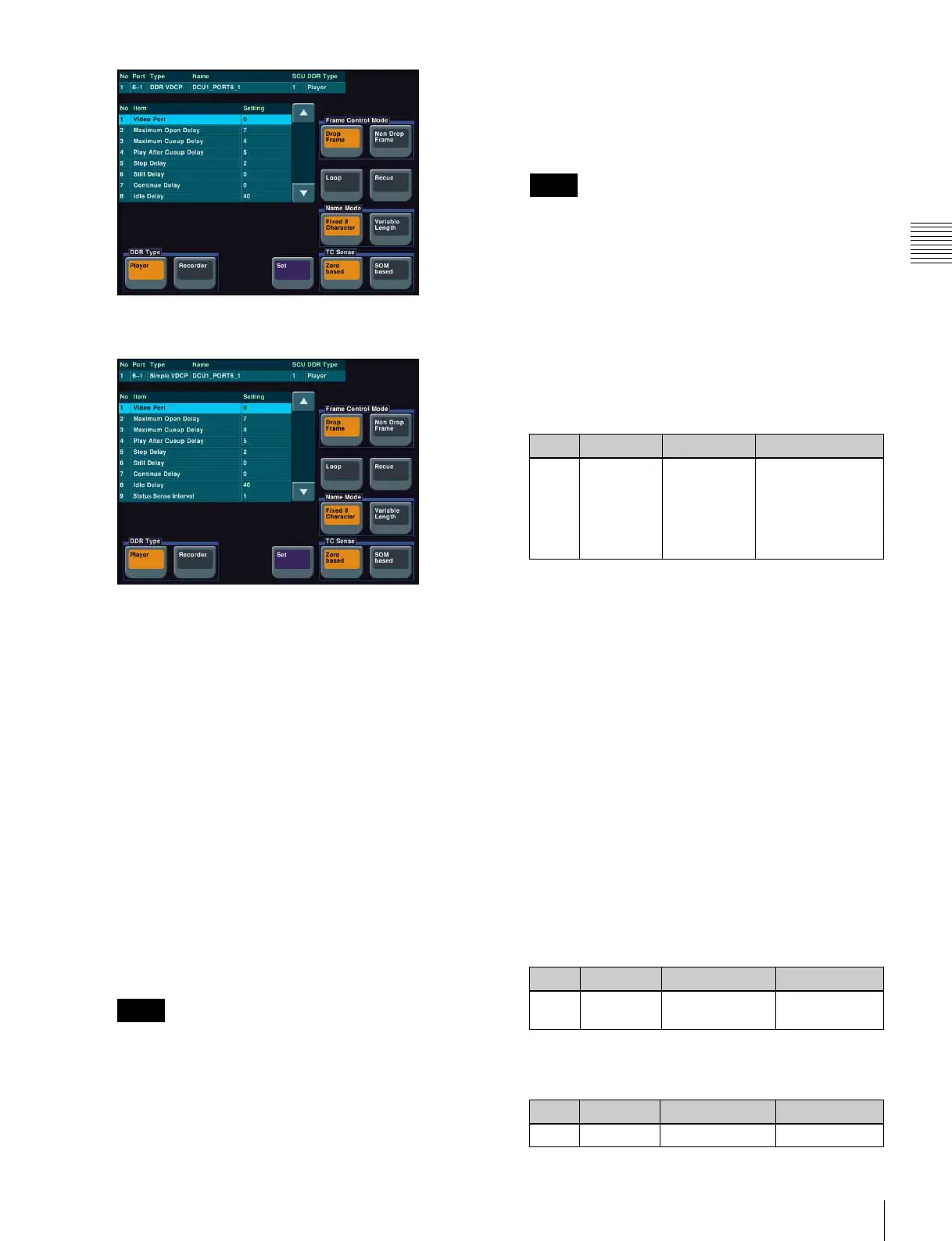

When “Simple VDCP” is selected as the protocol, the
Simple VDCP Setting menu appears.
4
In the <DDR Type> group, select the type of disk
recorder.
Player: Functioning as a player.
Recorder: Functioning as a recorder.
5
In the <Name Mode> group, select the file name
character count mode.
Fixed 8 Character: Use 8-character file names.
Variable Length: Use variable-length file names.
(The file name is limited to 23 characters.)
6
In the <TC Sense> group, select the type of timecode
sensing.
Zero based: Mode in which timecode is detected
taking the first frame of the recalled file as
00:00:00:00
SOM based: Mode in which timecode saved in the
recalled file is detected
The details of the above operation modes depend on
the connected device. For more information, consult
the documentation for the connected device.
7
When using a disk recorder that does not support the
timecode drop frame bit, in the <Frame Control
Mode> group, select the drop frame mode or non-drop
frame mode.
Drop Frame: Drop frame mode.
Non Drop Frame: Non-drop frame mode.
This setting is only valid when the system field
frequency is one of the following values.
29.97, 30, 59.94, 60
8
Using any of the following methods, specify the item
to which the video port number or response speed
setting applies.
• Press directly on the list in the status area.
• Press the arrow keys to scroll the reverse video
cursor.
• Turn the knob.
a) 1. Video Port: Number of the video port associated with the serial
port to which the setting applies
For a player, the output port setting
For a recorder, the input port setting
2. Maximum Open Delay: maximum time required to open a file
3. Maximum Cueup Delay: maximum time required to cue up a file
4. Play After Cueup Delay: delay time from the cued-up state to
begin playback
5. Stop Delay: delay time from issuing the stop command until
actually stopping
6. Still Delay: delay time from issuing the still command until
actually stopping
7. Continue Delay: delay time from issuing the continue command
until actually stopping
8. Idle Delay: delay time from unloading a file until entering the idle
state
(The idle state is a state wherein a file has been unloaded but a new
file has not been loaded yet, that is, a state wherein no file is
loaded.)
9. Status Sense Interval: time until the next Status Sense command is
issued (Simple VDCP Setting menu only)
9
Turn the knob to set the disk recorder video port
number or response speed.
When setting the video port number
a) 0: No assignment
When setting the response speed
Notes
Notes
Knob Parameter Adjustment Setting values
1 Item No Item
selection
DDR VDCP
Setting menu:1
to 8
a)
Simple VDCP
Setting menu:1
to 9
a)
Knob Parameter Adjustment Setting values
2 Setting Video port
number
0 to 127
a)
Knob Parameter Adjustment Setting values
2 Setting Response speed 0 to 255
