AUXILIARY PANEL GEN II
The auxiliary panel is located on the right side of the system and accessed from the access panels. With the
MAC board interface and control, the auxiliary panel provides two primary functions; vacuum generation and air
drying. These functions are performed using an external compressed air source (non-lubricated) at 90-120 psi).
Because of the large build area offered by the F900, two separate vacuum zones on the vacuum platen are
provided. The zones are identified as the “inner” and “outer” and permit use of either large or small build sheets.
Dried air is supplied to the filament feed path of the system making sure that material delivered to the head does
not become contaminated by moisture that could cause part quality issues.
Auxiliary Panel Components:
• R
elief Valve
•
Solenoid Air Valve
•
Input Regulator and Filter
•
Coalescing Water and Oil Filter
•
Input Manifold and Dual Pressure Sensor
•
Vacuum Generators
•
Air Dryer
•
Dry Air Filter
•
Output Manifold and Gauges

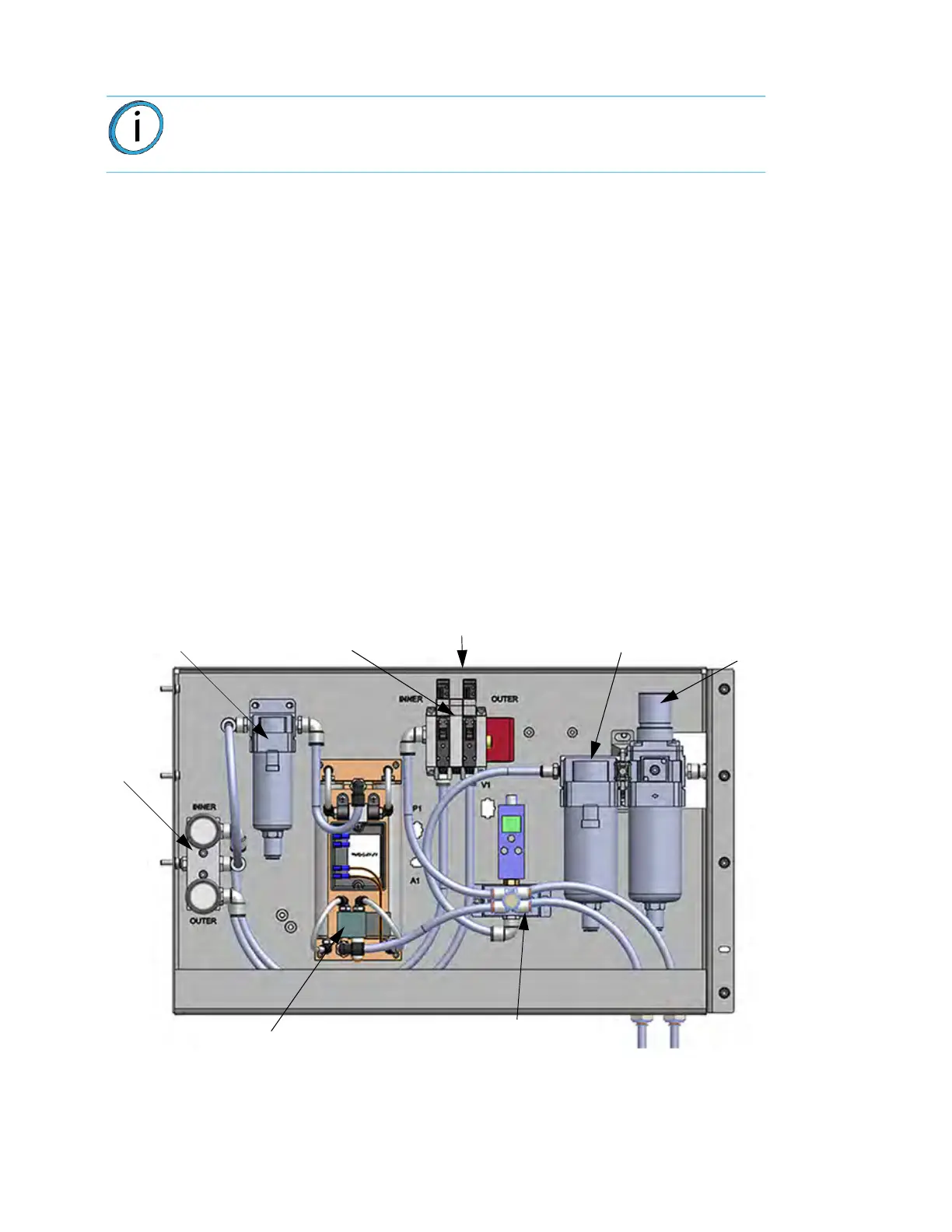

Fi
gure 8-4: Au
xiliary Panel Components
Note: The following description and diagram represent the Gen II version only,
serial numbers > 1030 and < 2000
Dry Air Filter
Air Dryer
Input Manifold and
Dual Pressure Sensor
Coalescing Water
Pressure Regulator
(on reverse side of panel)
Vacuum Generators
and Filter
and Oil Filter
Solenoid Air Valve
Output
Manifold,
Gauges
and
Airflow
Orifice
To Next Page
