HEAD ASSEMBLY
The Head Assembly (Figure 2-7) is designed for use with a wide range of model materials. The board inside the
head provides direct heater and thermocouple control. Model and support material are extruded through the
he
ad using two liquefiers.

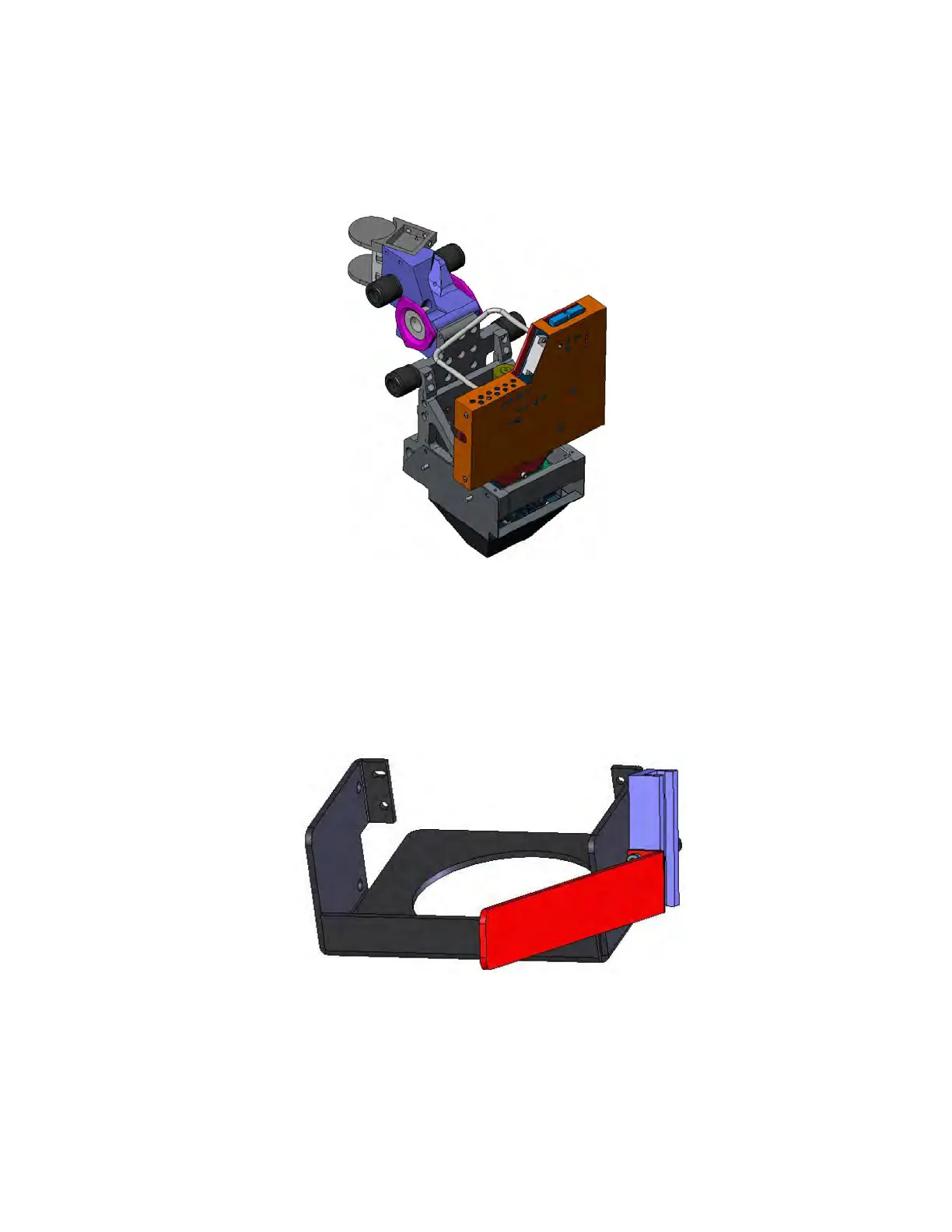

Figure 2-7: He
ad Assembly
HEAD MAINTENANCE BRACKET
The Head Maintenance Bracket is designed to hold the head assembly while performing maintenance on the
head such as tip replacement. (Figure 2-9) The red handle is designed so the top slide covers cannot be closed
while the bracket is in place.
Figure 2-8: He
ad Maintenance Bracket
