27
PURGE BUCKET
The debris chute directs debris into the purge bucket located under the tip cleaning assembly inside the oven
chamber. The purge bucket is designed to catch debris from the tip cleaning assembly and collects model and
support filament waste. The purge bucket is removable from the system and has a door at the bottom of the
basket for waste disposal.

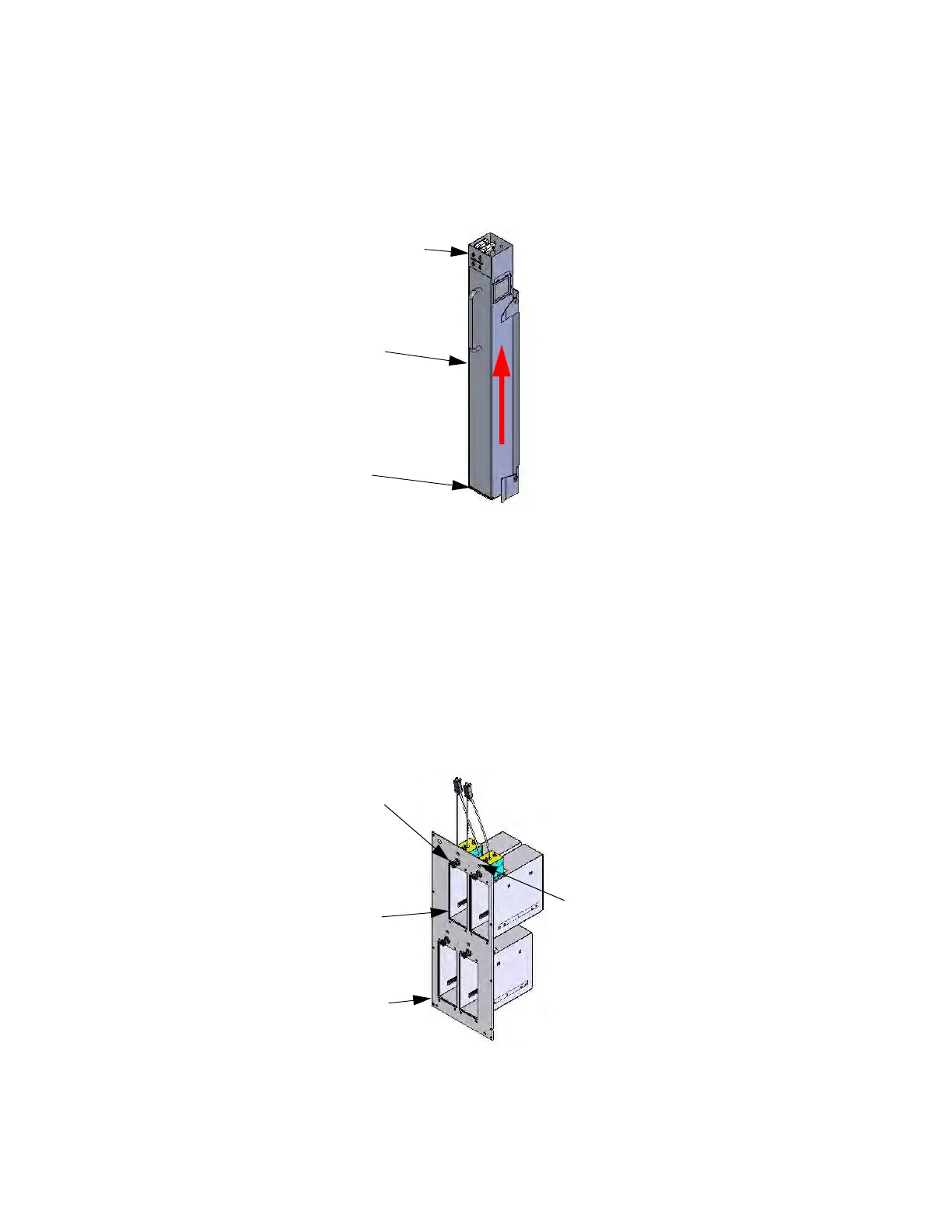

Figure 2-16: Pu
rge Bucket
CANISTER BAY
ACCESSING THE BAYS
The four canister bays are accessed by opening the canister bay door on the front of the system (Figure 2-17).
The canister bay door is not a part of the door safety interlock system and can be opened during system
op
eration.
Figure 2-17: Ca
nister Bay Components
Debris Chute
Purge Bucket
Bottom Waste
Door
Support Material
Canister Drive
Levers (4X)
Canister
LEDs (4X)
Model Material
Bays (2X)
Bays (2X)
M1
M2
S1
S2
