47
SENSOR STATUS
The Sensor Status window displays dynamic information of the status of the system. The following information is
displayed.
• Temperature of the oven, model and support temperatures along with setpoints and dew point
•
Limit Switch detection
•
Oven door and top cover slide locks
•
Inner and outer vacuum status
•
Motion fault, machine state, AC contactor status, and tip sensor
•
Support and model filament motor status
•
Sense head switch 1 and 2
•
Filament at model and support head

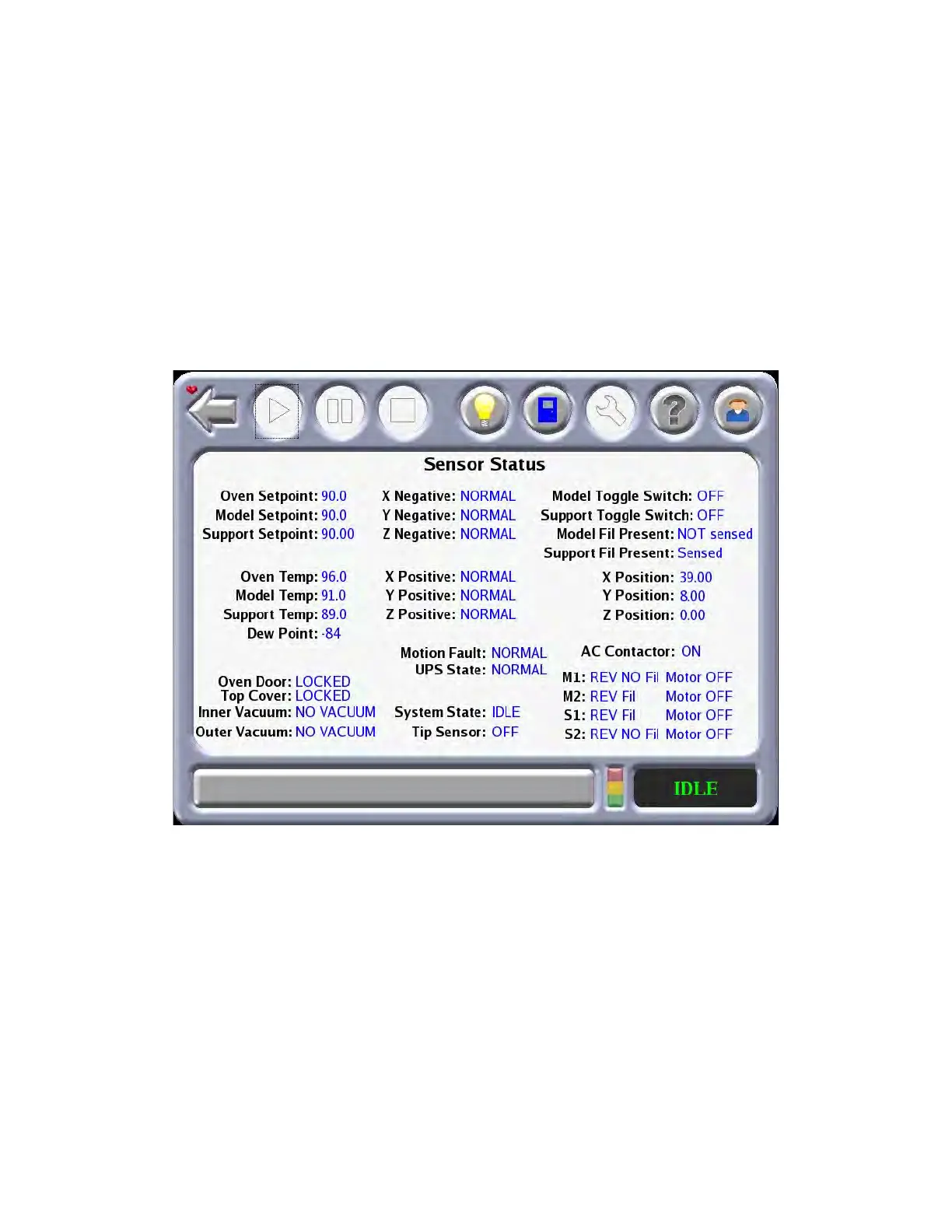

Fi
gure 4-5: Se
nsor Status
