SV 977D User Manual
Logger Setup

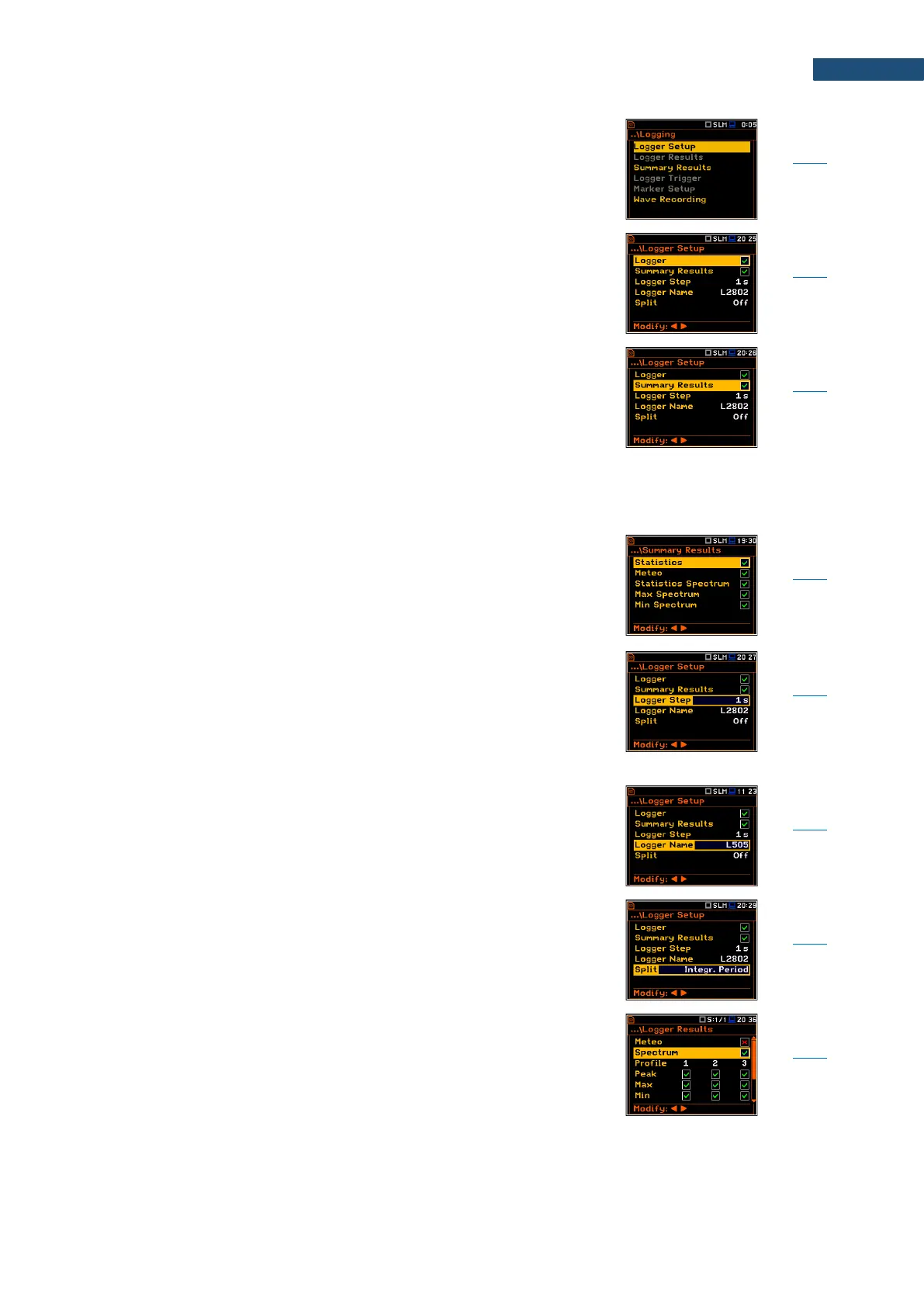

Screen that enables setting the main logging parameters:
Logger, Summary Results, Logger Step, Logger Name
and Split.
Chapter
4.4.1
Logger
Position in the Logger Setup list that switches on or off
the Logging function.
If Logger is switched off only Wave Recording is
available.
Chapter
4.4.1
Summary Results
Position in the Logger Setup list that switches on or off
saving of the summary results measured with the
Integration Period step: Spl, Leq, Sel, LEPd, Ltm3, LTeq,
10xLn, Ovl, Peak, Max, Min, EX, SD, NC, NR, 2xLR for
sound measurements and RMS, Ovl, Peak, P–P for
vibration measurements. Summary Results are
measured, displayed and saved in a logger file as
records as many times as defined by the
Repetition Cycles parameter. They are renewed at the
display every second when the measurement is running.
Chapter
4.4.1
Summary Results
Screen in the Logging list enabling configuring of the
Summary Results structure which may include also:
results from the meteorological station (Meteo),
Statistics, statistics for 1/1 and 1/3 octaves (Statistics
Spectrum), spectra for max and min results
(Max Spectrum and Min Spectrum).
Chapter
4.4.3
Logger Step
Time of measuring/integrating Logger Results and
recording them to the logger file (same meaning as
Integration Period for Summary Results). Logger Step
can be selected from the set: 2 ms, 5ms, 10ms, 20ms,
50ms, 100ms, 200ms, 500ms or from 1 second to
59 seconds with 1-second step or from 1 minute to
59 minutes with 1-minute step and up to 1 hour.
Chapter
4.4.1
Logger Name
Position in the Logger Setup screen that enables defining
the name of file in which Logger Results,
Summary Results and Markers will be saved.
Chapter
4.4.1
Split
Position in the Logger Setup screen that enables saving
of the logger records in separate files according to
different rules: after the integration period, or every
quarter / half an hour / hour, or on specific times of a day.
Chapter
4.4.1
Logger Results
Screen in the Logging list enabling selecting results that
will be logged to a logger file with Logger Step as time-
histories: Peak, Max, Min, Leq, 2xLR and LXY for sound
measurements and Peak, P-P, Max and RMS for
vibration measurements as well as the series of results
obtained from the weather station (Meteo). For the
1/1 Octave and 1/3 Octave functions also spectra can be
logged.
Chapter
4.4.2
