TESTO Saveris User Manual

5 First steps
77
Pos: 84 /TD/Erst e Schritte/testo Saver is/Hardware erwei tern/01 b IP-Adresse der B ase zuweisen @ 12\mod_1338 376877611_79.docx @ 125816 @ 3 @ 1
5.14.5. Assigning an IP address to the Saveris base
(optional)
If an Ethernet probe, converter and/or extender is integrated into
the Saveris system, a static IP address should first be assigned for
the Saveris base.
For assignment of an IP address, the software must be installed ()
and the programming adapter 0440 6723 must be used.

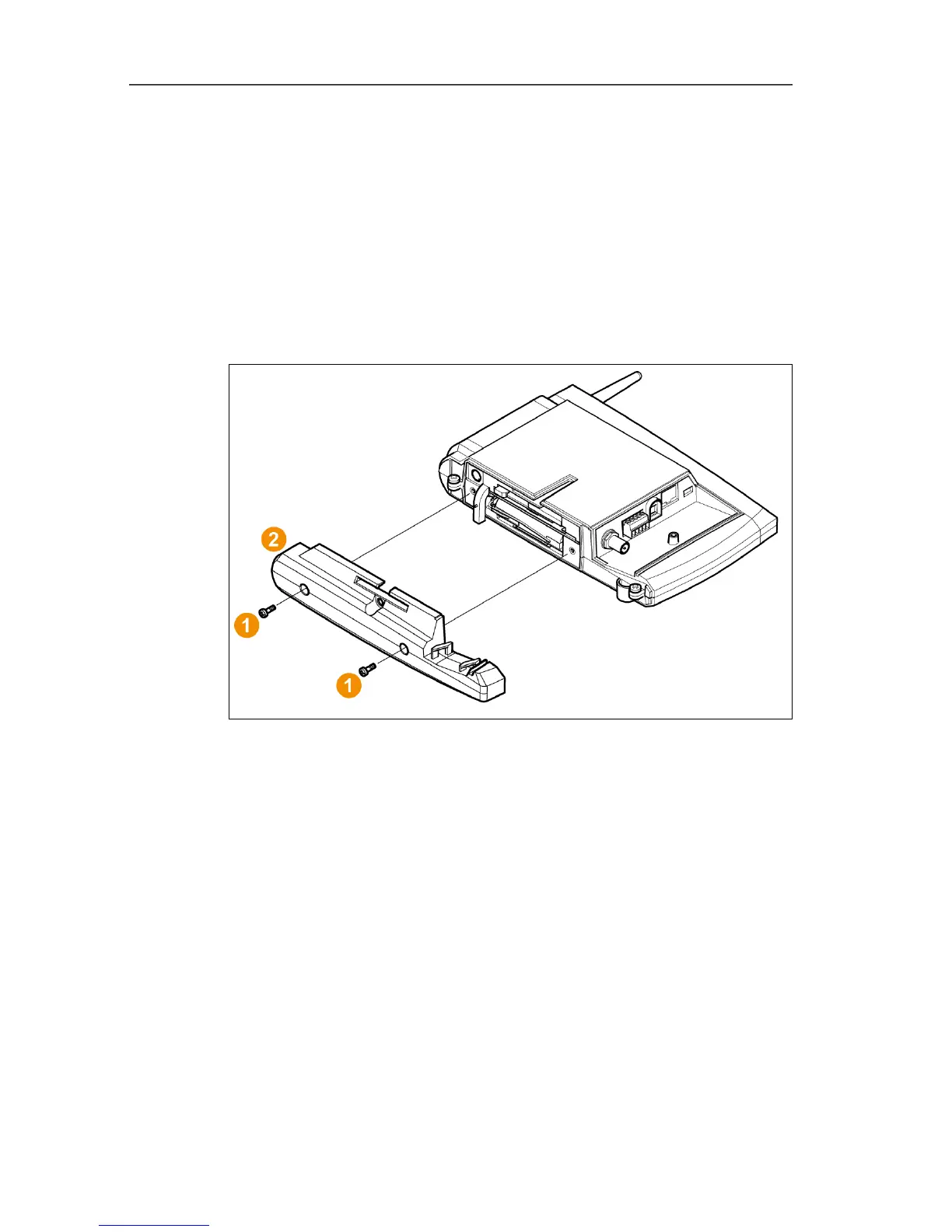

1. Undo the screw connection 1 and remove the base plate 2 from
the Saveris base.
2. Plug the USB cable into the Testo programming adapter (0440
6723) and connect to the service interface for the base.

TESTO Saveris Specifications

General

Humidity Range	0 to 100 %RH
Measurement Parameters	Temperature, Humidity
Data Transmission	Wireless
Alarm Function	Yes
Resolution	0.1 °C, 0.1 %RH
Radio Frequency	868 MHz, 915 MHz
Data Storage	Internal memory, Cloud
Power Supply	Battery
