5-61
dummyheaddummyhead
FUEL SYSTEM

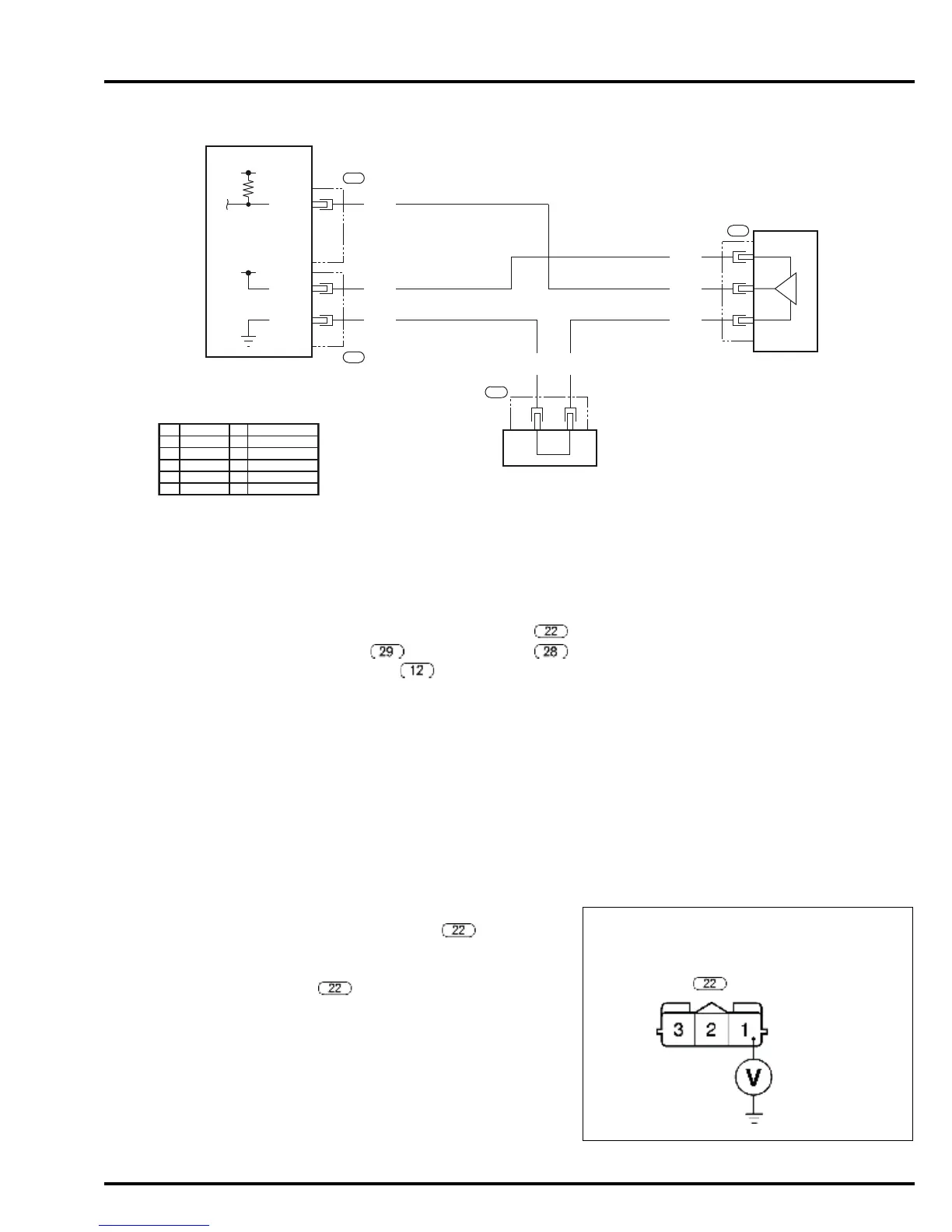

MIL BLINKS 22 (2 LONG BLINKS AND 2 SHORT BLINKS) EOP SENSOR
• When the MIL blinks 6, 7, 10, 22, 24, and 25 at the
same time, the ground line (SG2) is open.
• When the MIL blinks 7 and 22 at the same time, the
power line (VCC2) is open.
1. Symptom reproduction test
Turn the combination switch OFF.
Disconnect the EOP sensor 3P connector ,
ECM connector A , ECM connector B ,
and joint connector 2 , and then reconnect
them.
Clear the DTC (page 5-5).
Turn the combination switch OFF and connect the
SCS service check connector.
Turn the combination switch ON and check the
number of blinks of the MIL.
Does the MIL blink 22?
YES – GO TO STEP 2.
NO – Temporary failure (code does not
reappear)
2. EOP sensor power line open circuit inspection
Turn the combination switch OFF and disconnect
the EOP sensor 3P connector .
Turn the combination switch ON.
Measure the voltage between the EOP sensor 3P
connector main wire harness side No.1 (Blue)
terminal and engine ground.
Is the measurement within 4.75 – 5.25 V?
YES – GO TO STEP 3.
NO – Repair open in the Blue wire. If the main
wire harness is normal, replace the ECM
with a new one and recheck.
G
25
ECM
SG2
28
EOP
SENSOR
3
22
Br/W
7
VCC2
Y/R
10
POIL
29
G
2 1
Y/R
Bu
5V
5V
21
23
GG
12
JOINT CONNECTOR 2
BLACK
YELLOW
BLUE
GREEN
RED
WHITE
BROWN
ORANGE
LIGHT BLUE
LIGHT GREEN
PINK
GRAY
Bl
Y
Bu
G
R
W
Br
O
Lb
Lg
P
Gr
EOP SENSOR 3P CONNECTOR
MAIN WIRE HARNESS SIDE
VCC2
(Blue)
