FUEL SYSTEM

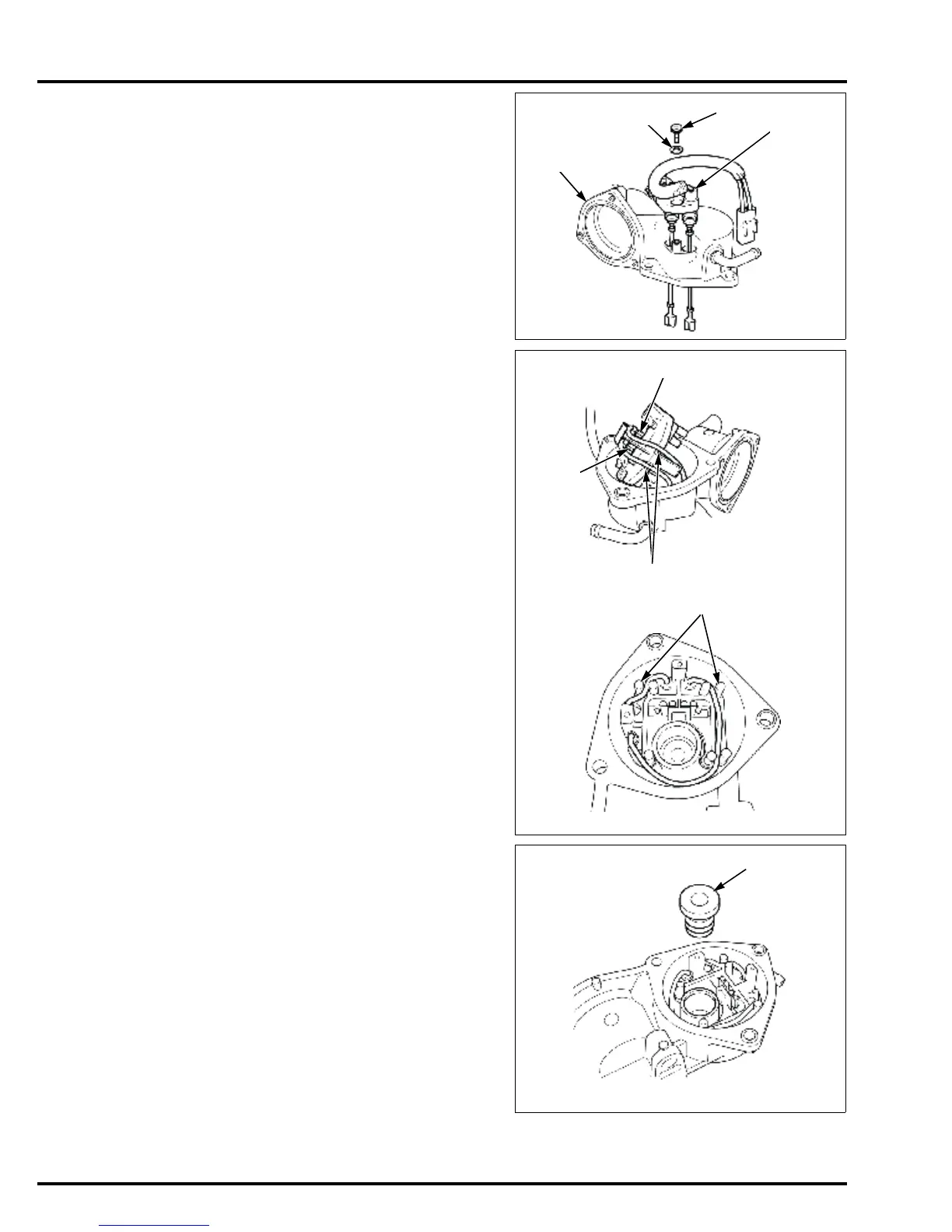

Install the pump harness [1] on the pump cover [2], and
install the screw [3] and washer [4].
Tighten the screw to the specified torque.
Set each wire in the respective recess [1] in the holder,
and set the Blue/Yellow terminal [2] and Black terminal
[3] in the positions shown.
Set the holder in the pump cover.
Set the wires between the projections [4] on the holder.
Install the insulator [1] in the pump cover.
TORQUE: 2.1 N·m (0.21 kgf·m, 1.5 lbf·ft)
