ENGINE COVER

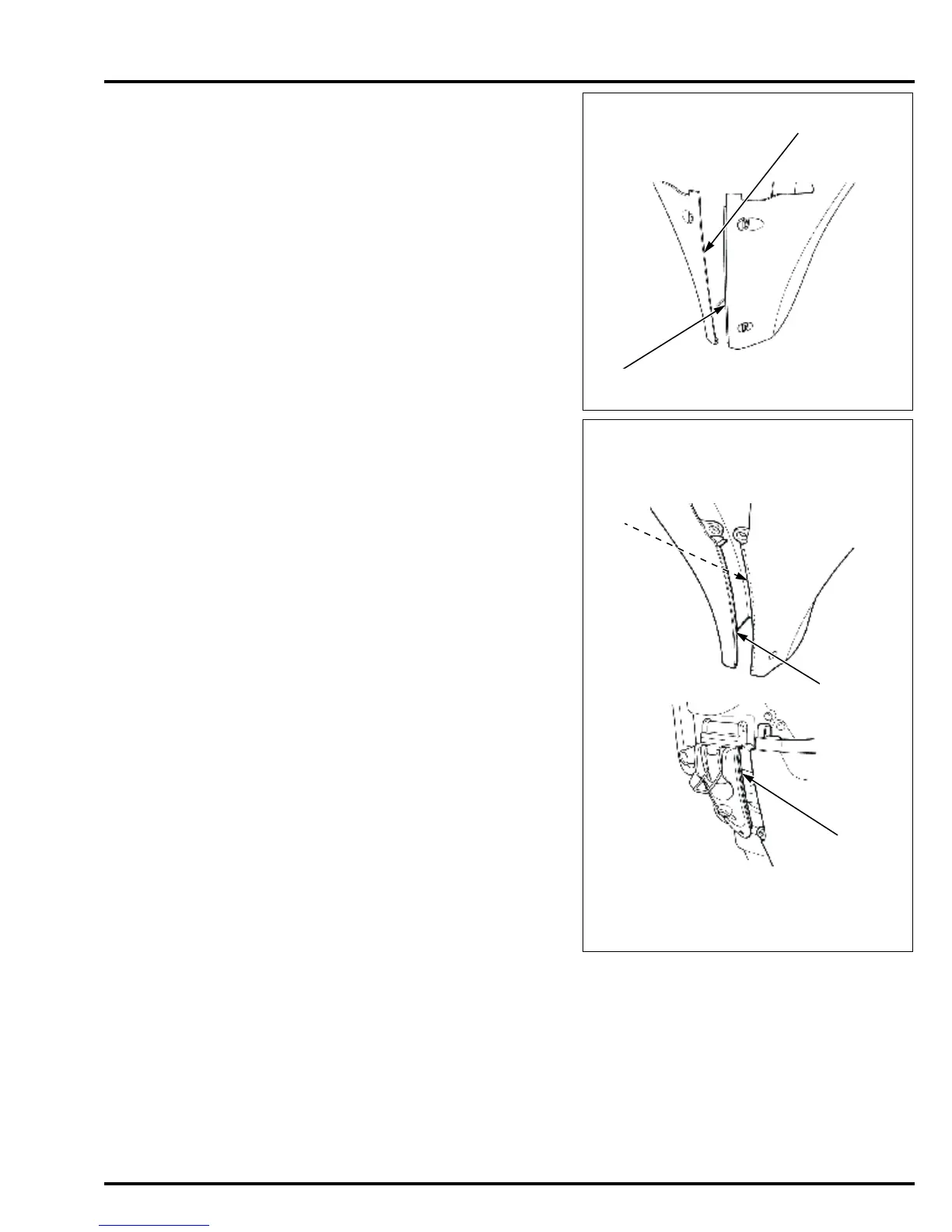

Install the L./R. engine under covers, aligning the
projection [1] on the front side (swivel case side) of the
L. engine under cover with the recess [2] in the R.
engine under cover as shown.
• Do not allow the R. engine under cover to interfere
with the tube (8 x 300 mm) of the mount case or with
the oil drain part of the oil case during installation.
Install the L./R. engine under covers, aligning the
projection [1] on the rear side of the L. engine under
cover with the recess [2] in the R. engine under cover
as shown.
Securely install the L./R. engine under covers in the
groove [3] of the under cover rear bracket.
[1]
[2]
[1]
[2]
[3]
