ENGINE COVER

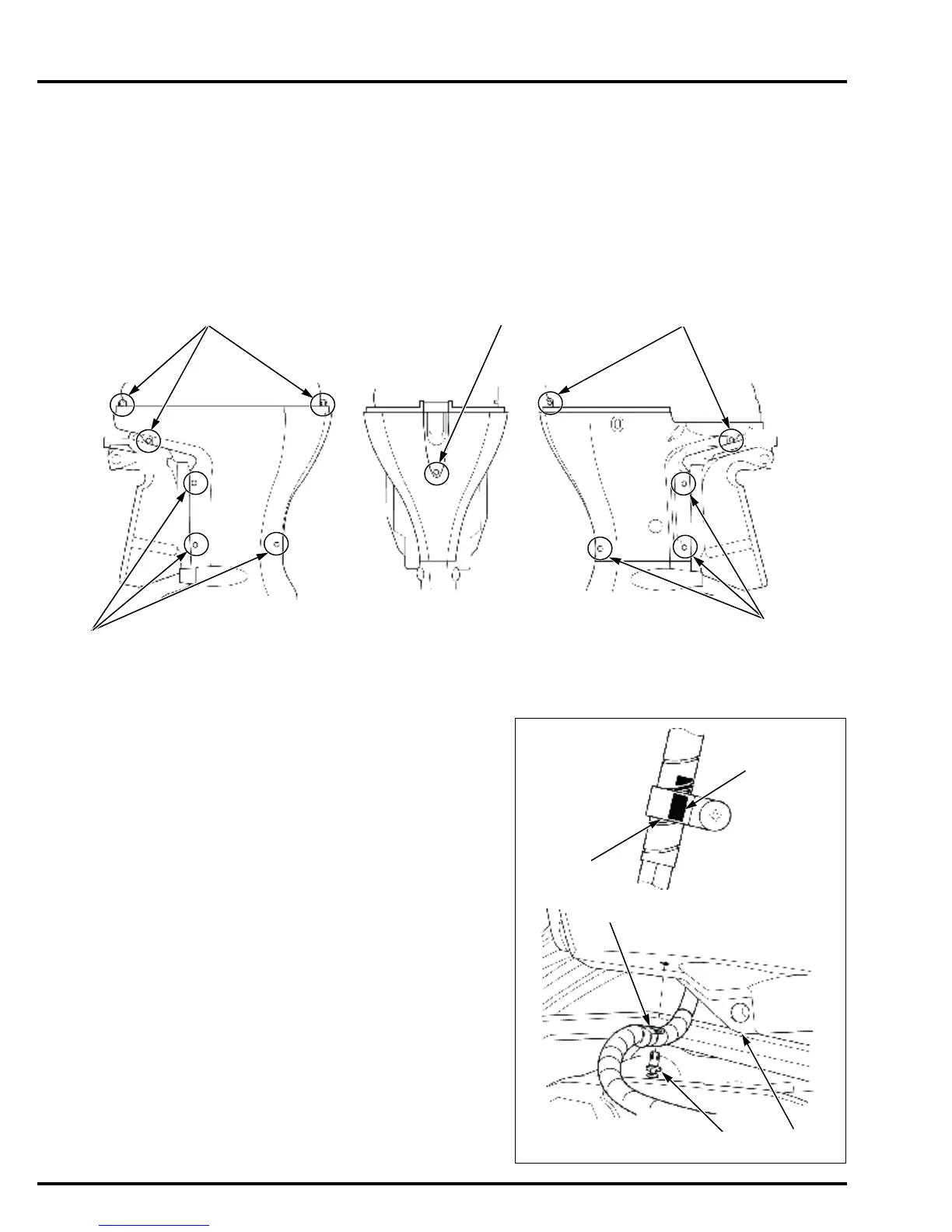

Loosely tighten the six bolt/washers [1] and five special bolts [2] to the L./R. engine under covers.
Loosely tighten the rear bracket bolt [3] to the under cover rear bracket.
• Be sure that the shoulders on the special bolts go into the holes on the L./R. engine under covers.
Tighten the bolts to the specified torque in the numbered order as shown.
Check that the end of the clip [1] aligns with the end of
the taped part [2] of the power tilt motor wire as shown.
Set the clip on the L. engine under cover [3] with care
not to bring it out of alignment with the end of taped part
of the power tilt motor wire.
Tighten the rivet screw [4].
TORQUE:
Rear bracket bolt: 5 N·m (0.51 kgf·m, 3.7 lbf·ft)
Bolt/washer: 10 N·m (1.0 kgf·m, 7 lbf·ft)
Special bolt: 10 N·m (1.0 kgf·m, 7 lbf·ft)
[1]
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
[1]
[2]
[2]
[3]
To Next Page
