COOLING SYSTEM

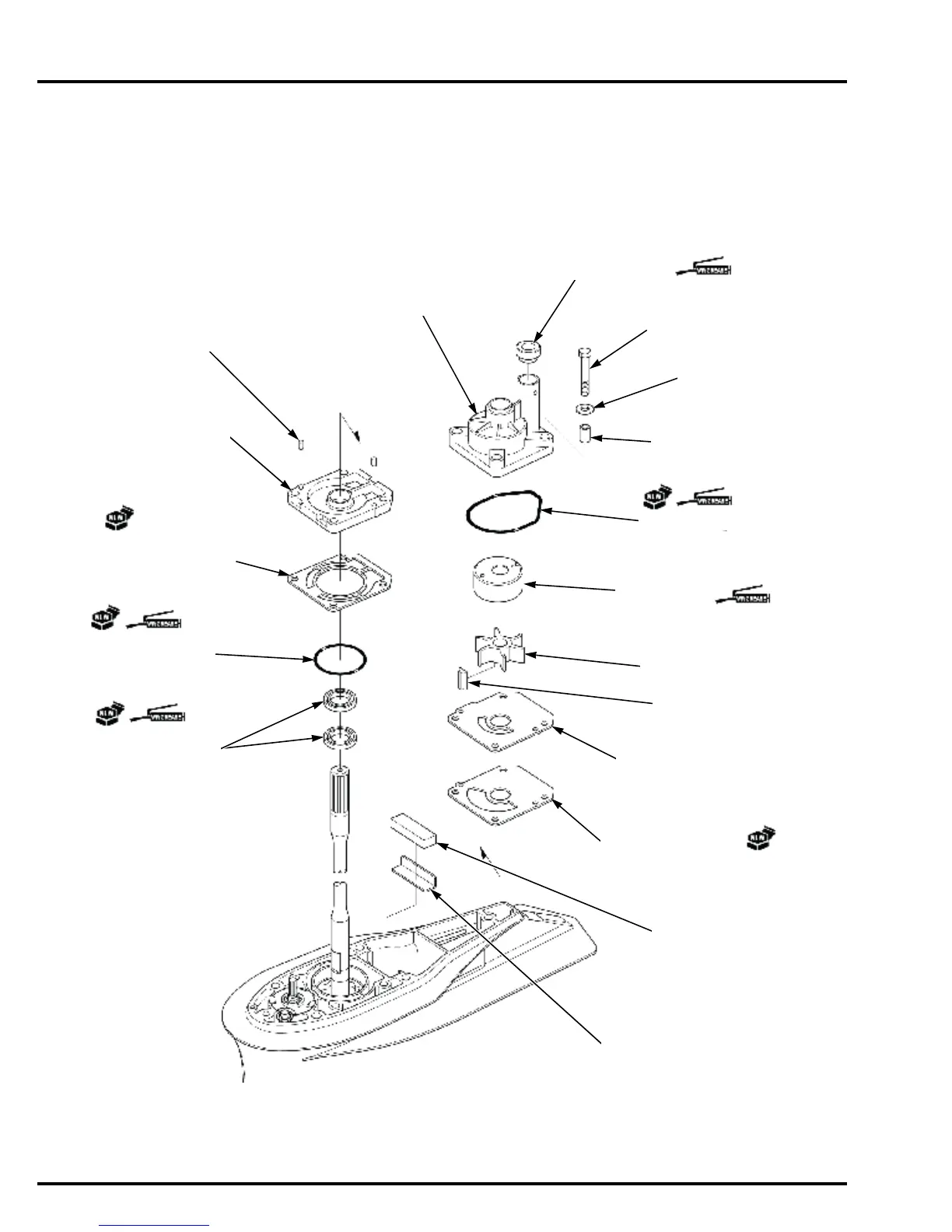

EXPLODED VIEW
DOWEL PIN
(6 x 10 mm) (2)
BOLT (8 x 55 mm) (4)
WASHER (8 mm) (4)
WATER SEAL
(23 x 36 x 6 mm) (2)
WATER PUMP
HOUSING GASKET
WATER TUBE SEAL RING
IMPELLER HOUSING
WATER PUMP
HOUSING
WATER PUMP
HOUSING O-RING
DISTANCE COLLAR (4)
WATER PUMP O-RING
PUMP LINER
PUMP IMPELLER
SPECIAL KEY
IMPELLER COVER
IMPELLER GASKET
RUBBER SETTING PLATE
GEAR CASE GROMMET
19.7 N·m (2.0 kgf·m, 15 lbf·ft)
