2-18
dummyheaddummyhead
SERVICE INFORMATION

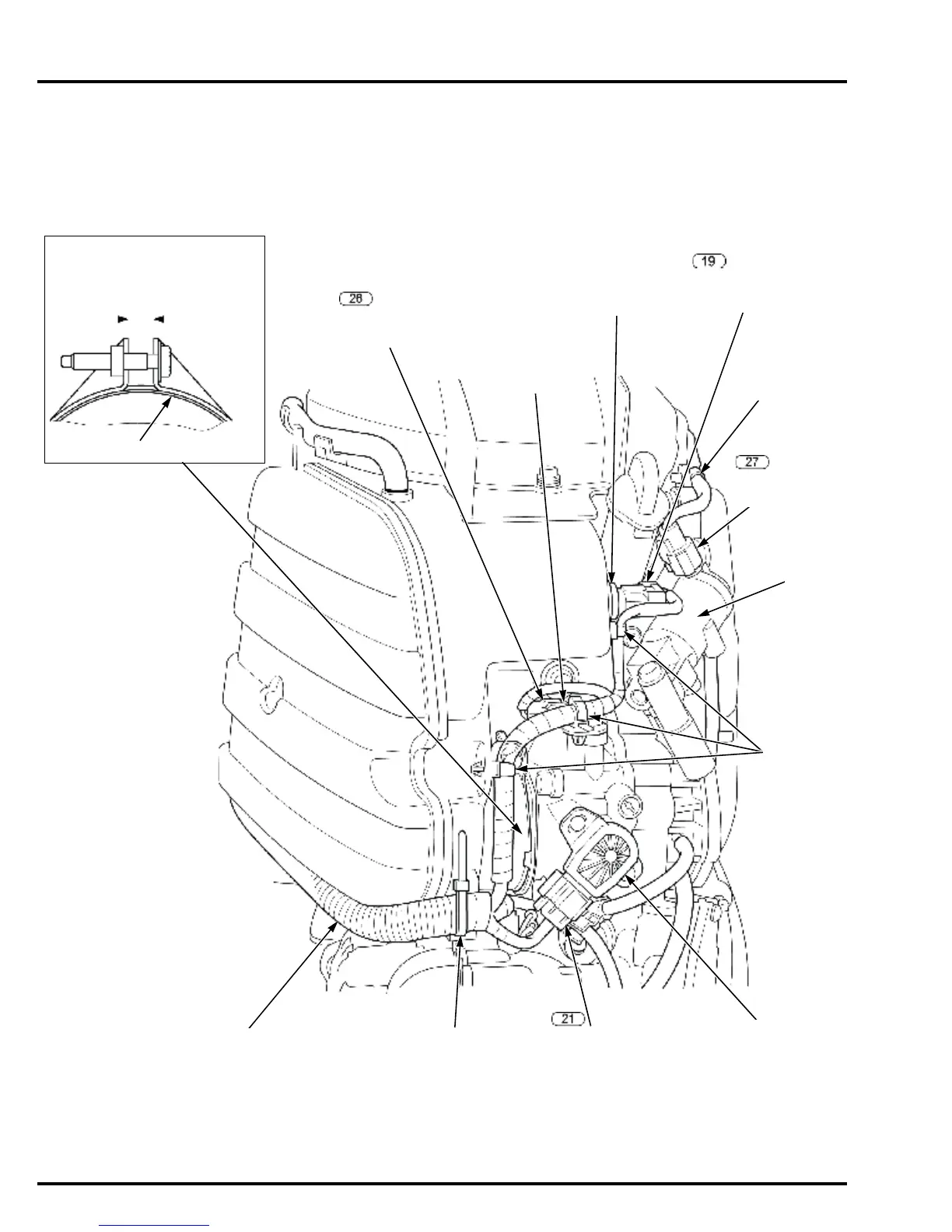

CABLE/HARNESS ROUTING
Tighten the air flow band bolt so
that the band inside dimension is
as shown.
AIR FLOW BAND
MAP SENSOR 3P
CONNECTOR
IAC VALVE 2P
CONNECTOR
6 – 8 mm
(0.24 – 0.31 in)
AIR FLOW BAND
MAP SENSOR
IAT SENSOR
IAT SENSOR 2P
CONNECTOR
HARNESS
BAND CLIP
IAC
VALVE
TP SENSOR 3P
CONNECTOR
TP SENSOR
HARNESS BAND
MAIN HARNESS
HARNESS
BAND CLIP
