CYLINDER HEAD

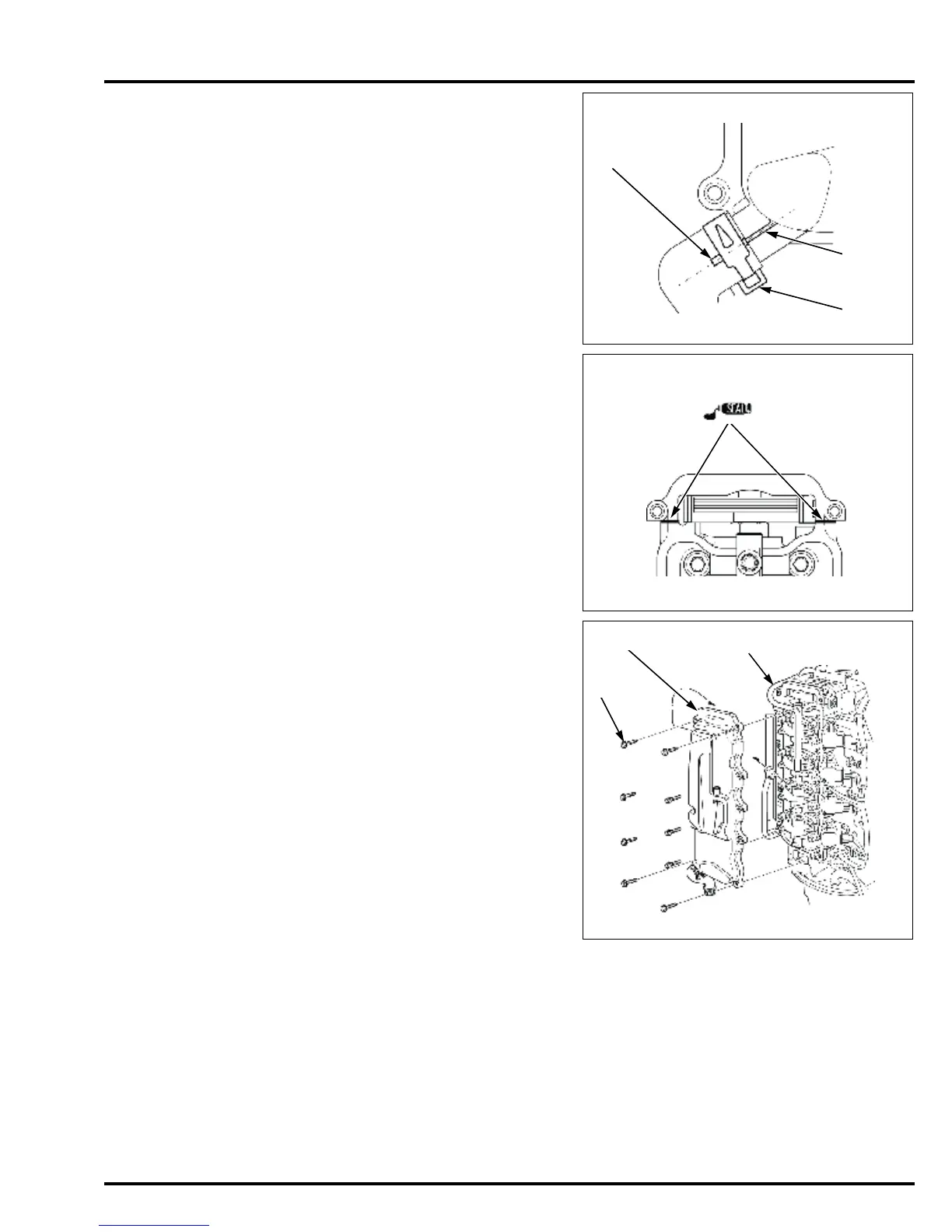

Connect the oil tube to the cylinder head cover by
aligning the projection [1] on the oil tube with the
projection [2] on the cylinder head cover.
Set the tube clamp D29.0 with the lug [3] in the position
shown.
Thoroughly clean the cylinder head/cylinder head cover
mating surfaces using a degreasing cleaning agent.
Apply a bead (2.0 - 3.0 mm (0.08 - 0.12 in) thick) of
liquid gasket (Threebond
®
#1215 or equivalent) to the
cylinder head in the position shown (cylinder head/
chain case mating surfaces).
• Assemble the cylinder head cover within 5 minutes
after application of the liquid gasket. If it has been
left for 5 minutes or longer, remove the old liquid
gasket and apply the liquid gasket again.
• After assembly, wait at least 30 minutes before filling
the engine with oil. Do not start the engine for at
least 3 hours after assembly.
Install the cylinder head cover [1] on the cylinder head.
After installation, move the cylinder head cover lightly
from side to side, making sure the gasket seats
properly.
Loosely tighten the nine bolts [2] on the cylinder head
cover.
Connect the breather tube [3] into the cylinder head
cover securely.
