INDICATOR LIGHT
HARNESS
THROTTLE CABLE
FUEL TUBE A
STARTER CABLE
SHIFT CABLE
REMOTE CONTROL CABLE
HARNESS or TILLER HANDLE
HARNESS

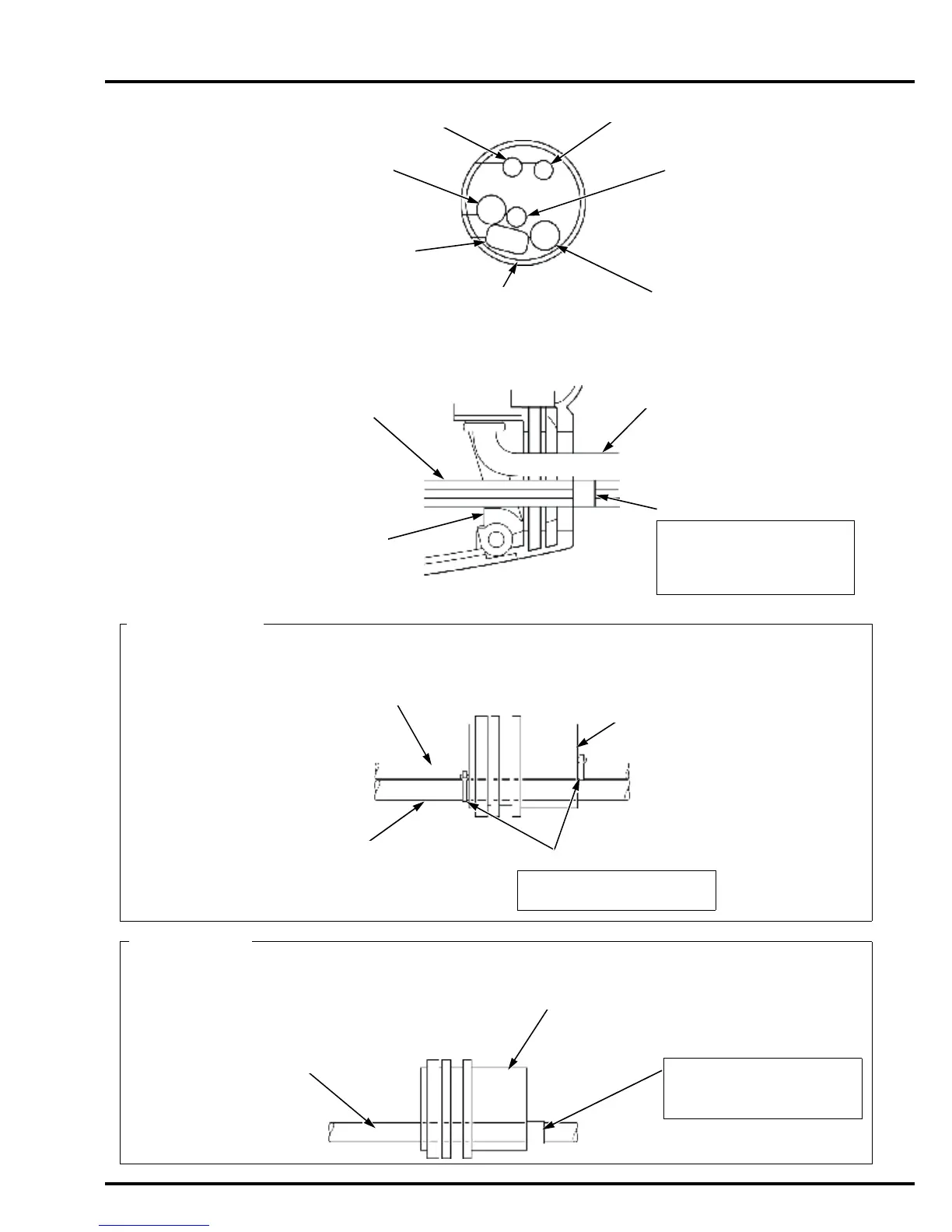

<Front view with the grommet installed into the outboard motor>
UNDER COVER
FRONT BRACKET
Install the starter cable by
aligning the white tape edge
with the under cover front
bracket.
WHITE TAPE
Install each band while pushing
it against the grommet.
BAND
Install the tiller handle harness
by aligning the white tape edge
with the grommet.
WHITE TAPE
REMOTE CONTROL CABLE
GROMMET
FUEL TUBE A
STARTER CABLE
Tiller handle type:
INDICATOR LIGHT
HARNESS
REMOTE CONTROL CABLE
HARNESS
REMOTE CONTROL
CABLE GROMMET
REMOTE CONTROL
CABLE GROMMET
TILLER HANDLE
HARNESS
Remote control type:
To Next Page
