TOHATSU BFT75A - Page 43

2-24
dummyheaddummyhead
SERVICE INFORMATION

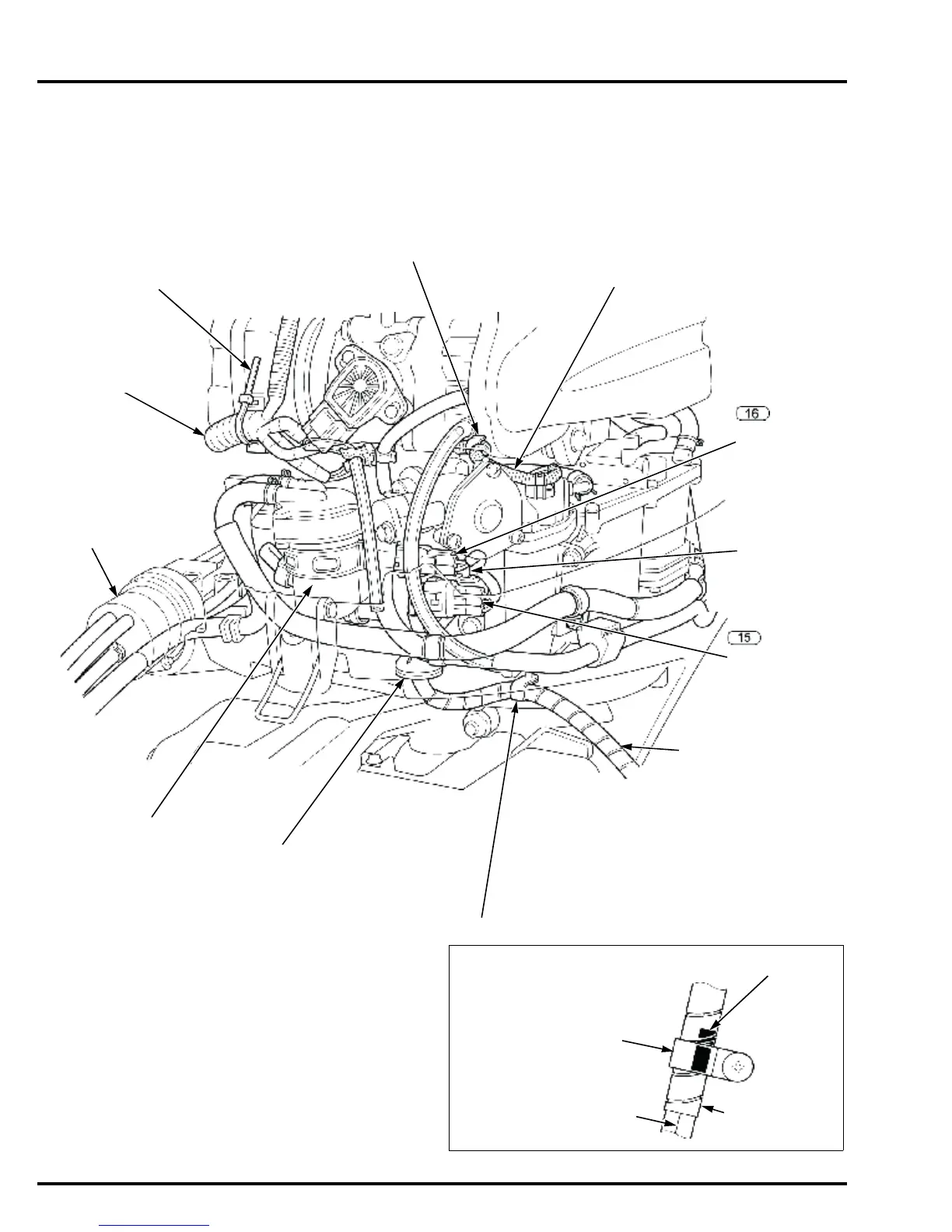

Install the power tilt motor wire
by aligning the lower edges of
the locating tape and clip.
CLIP (14 mm)
LOCATING TAPE
TRIM ANGLE
SENSOR 3P
CONNECTOR
WATER LEVEL
SENSOR/WATER
SEPARATOR
REMOTE
CONTROL
CABLE
GROMMET
MAIN
HARNESS
HARNESS
BAND
WIRE CLAMP
PUMP HARNESS
WATER LEVEL
SENSOR 2P
CONNECTOR
HARNESS
BAND CLIP
SPIRAL TUBE
(12 X 14.6 mm)
UNDER COVER
GROMMET C
SPIRAL TUBE
(12 X 14.6 mm)
POWER TILT
MOTOR WIRE
CLIP (14 mm)
(Except LHGX type)
(Except LHGX type)
(Except LHGX type)
(Except
LHGX type)
