GEAR CASE

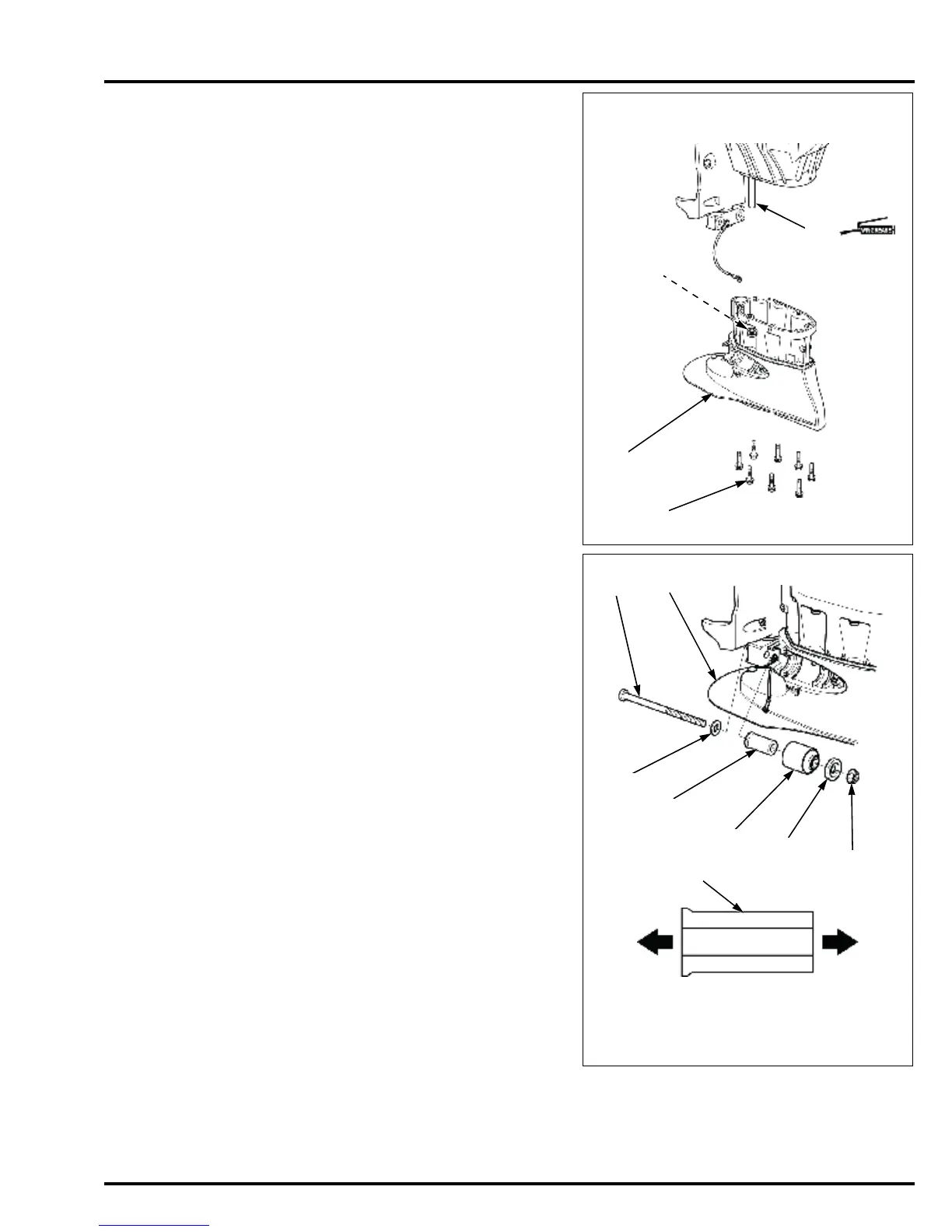

Apply marine grease to the water tube end [1].
Install the extension case [2] on the outboard motor,
aligning the water tube with the extension case
grommet [3].
Tighten the eight bolts [4].
Install the lower mount collar [1], lower rubber mount
[2], and the lower mount stopper [3] on the extension
case [4].
Note the installation direction of the lower mount collar.
Install the washer [5] and bolt [6].
Tighten the nut [7] to the specified torque while holding
the bolt with a wrench.
[2]
[3]
[1]
[4]
TORQUE: 83 N·m (8.5 kgf·m, 61 lbf·ft)
[1]
[1]
LOWER RUBBER
MOUNT SIDE:
LOWER MOUNT
CENTER HOUSING
SIDE:
[2]
[3]
[7]
[5]
[6]
[4]
