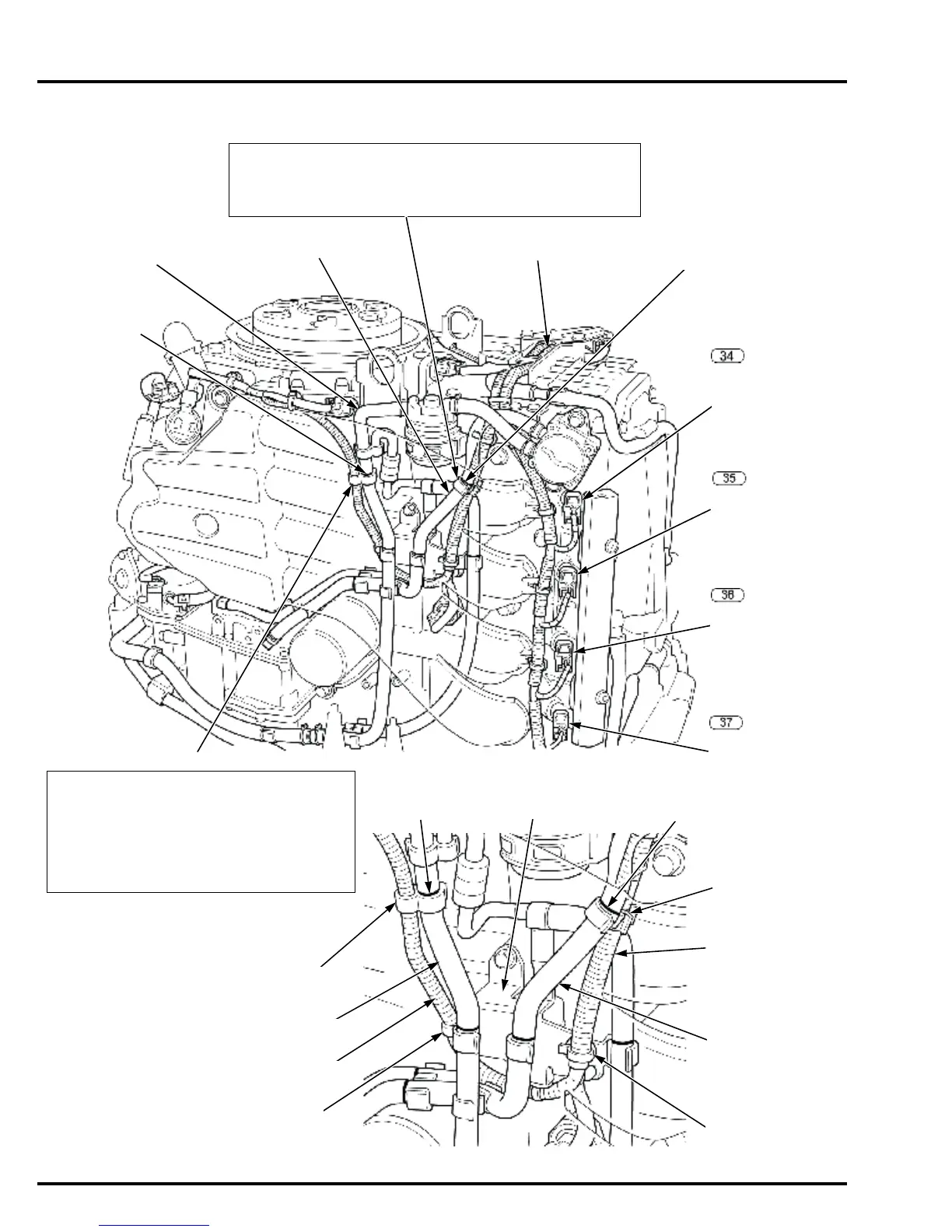

FUEL TUBE C
FUEL TUBE D
MAIN HARNESS
No.1 FUEL
INJECTOR 2P
CONNECTOR
• Set with fuel tube D positioned in front of the main harness.
• Set with the openings facing the fuel line side.
• Set by aligning the upper edge with the paint mark on fuel tube D.
FUEL TUBE CLAMP A
• Set the small clamp onto the main harness with
the opening facing the cylinder block.
• Set the large clamp onto fuel tube C with the
opening facing the cylinder block.
• Set by aligning the upper edge with the paint
mark on fuel tube C.
TUBE CLAMP 7.5 - 11.5
FUEL TUBE CLAMP
BRACKET
FUEL TUBE C
FUEL TUBE
CLAMP A
MAIN HARNESS
FUEL
TUBE D
HARNESS
BAND CLIP
PAINT MARK
PAINT MARK
No.2 FUEL
INJECTOR 2P
CONNECTOR
No.3 FUEL
INJECTOR 2P
CONNECTOR
No.4 FUEL
INJECTOR 2P
CONNECTOR
PAINT MARK
PAINT MARK
HARNESS
BAND CLIP
TUBE CLAMP
7.5 - 11.5
MAIN HARNESS
To Next Page
