MOUNT
MOUNT
MOUNT CASE REMOVAL/
INSTALLATION
Remove the engine from the mount case (page 13-3).
INSTALLATION:
Mounting direction as shown.
SHORT
LONG
NUT (12 mm) (2)
BOLT (12 x 186 mm) (2)

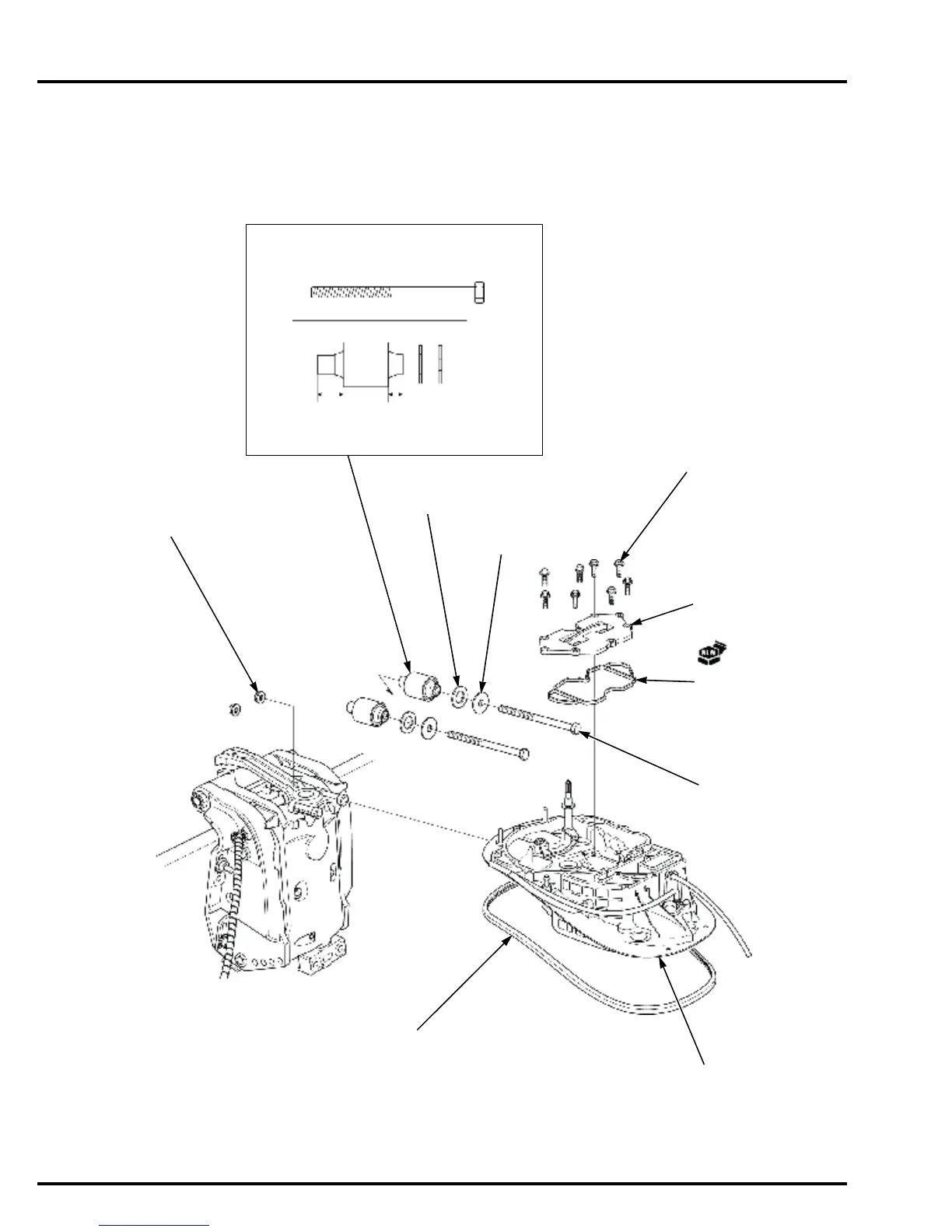

UNDER COVER SEAL A
MOUNT CASE ASSEMBLY
UPPER RUBBER MOUNT (2)
UPPER MOUNT
STOPPER RUBBER (2)
UPPER MOUNT
STOPPER (2)
BOLT (8 x 25 mm) (8)
UPPER MOUNT
COVER
UPPER MOUNT
COVER SEAL
83 N·m (8.5 kgf·m, 61 lbf·ft)
