17-3
dummyheaddummyhead
MOUNT
MOUNT CASE ASSEMBLY/
DISASSEMBLY

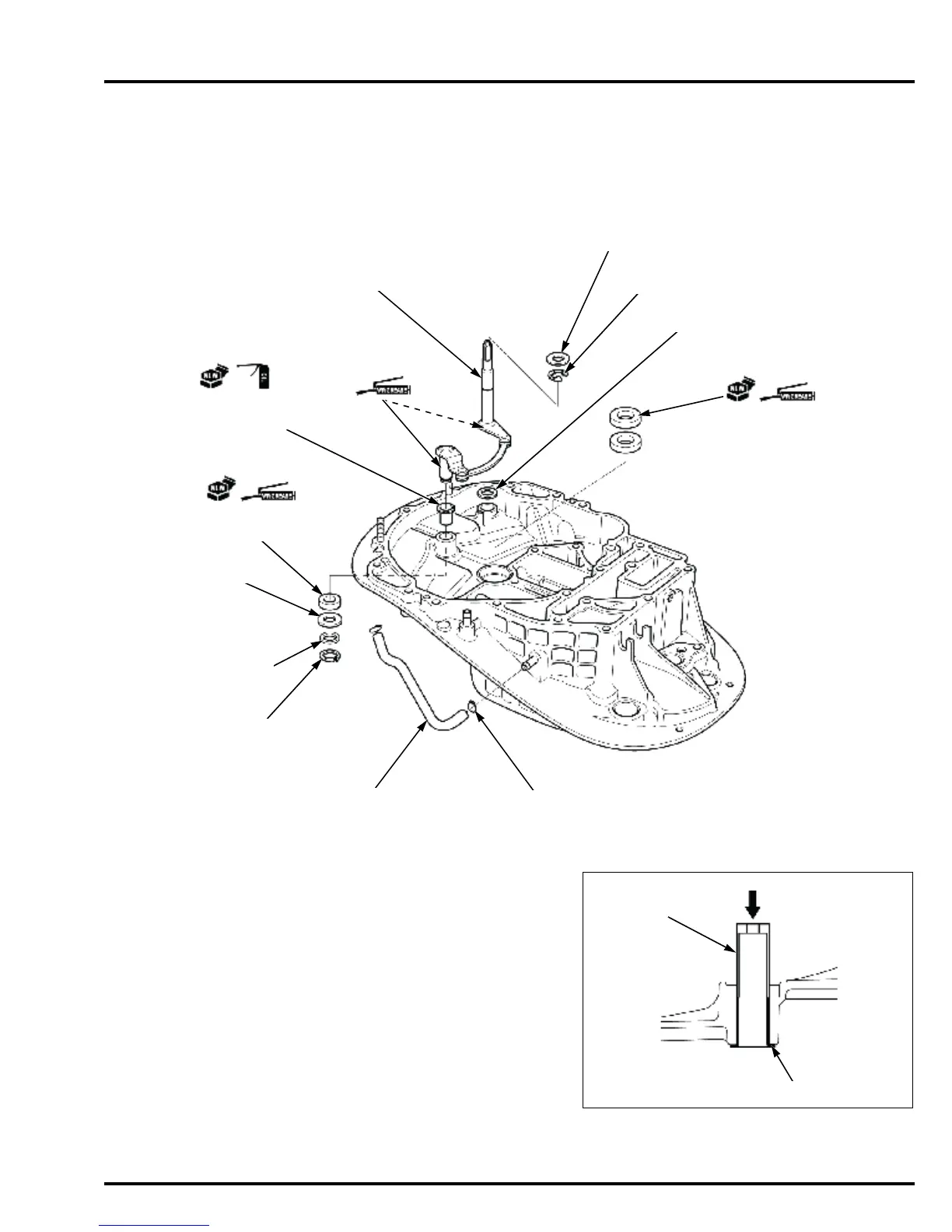

EXPLODED VIEW
Remove the mount case (page 17-2).
FLANGE BUSHING (14 x 16 x 22.5 mm)
REMOVAL
Remove the oil seal (14 x 26 x 6 mm) from mount case
assembly.
Remove the flange bushing [1] using the special tool
and a hydraulic press as shown.
SIDE WASHER (14 mm)
E-RING (12 mm)
SHIFT SHAFT WASHER
WATER SEAL
(22 x 35 x 7 mm) (2)
SHIFT SHAFT ASSEMBLY
FLANGE BUSHING
(14 x 16 x 22.5 mm)
OIL SEAL
(14 x 26 x 6 mm)
WASHER (14 mm)
WASHER (13 mm)
EXTERNAL
CIRCLIP (12 mm)
WATER TUBE A
TUBE CLIP (B10) (2)
TOOL:
MT. assembly holder [2] 07KPF-VD60100
[2]
[1]
