TRIM/TILT

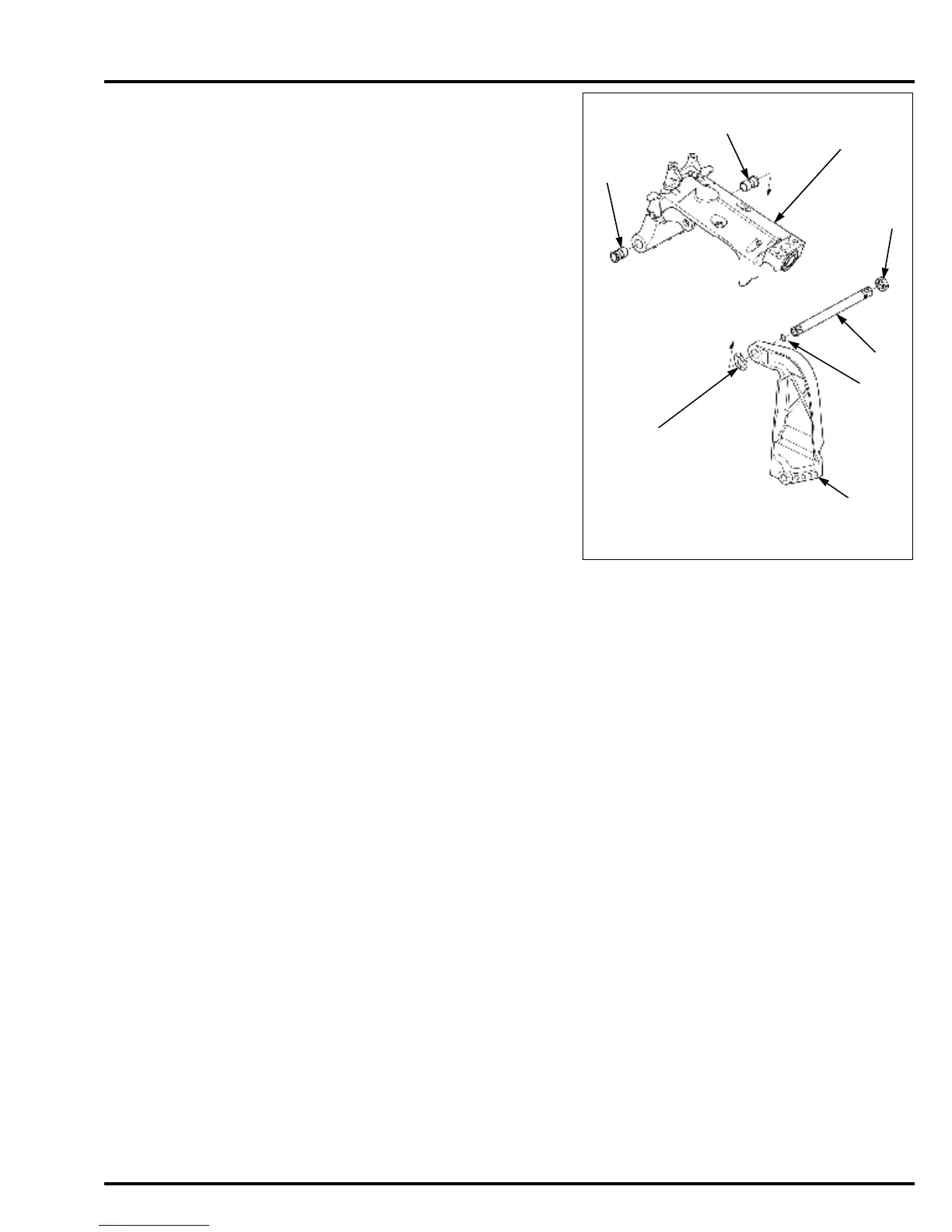

Remove the self-locking nut (7/8-14 UNF) [1] from the
tilting shaft [2].
Remove the swivel case [3] from the tilting shaft, and
then remove the wave washer (26 mm) [4] and the
tilting shaft from the R. stern bracket [5].
Check the swivel case bushings [6] mounted on the
swivel case. Replace the swivel case bushings with
new ones if they are worn, damaged or deformed.
Remove the two swivel case bushings [6].
Remove the tilting shaft O-ring [7].
Remove the wire harness clip from the L. stern bracket.
