18-10
dummyheaddummyhead

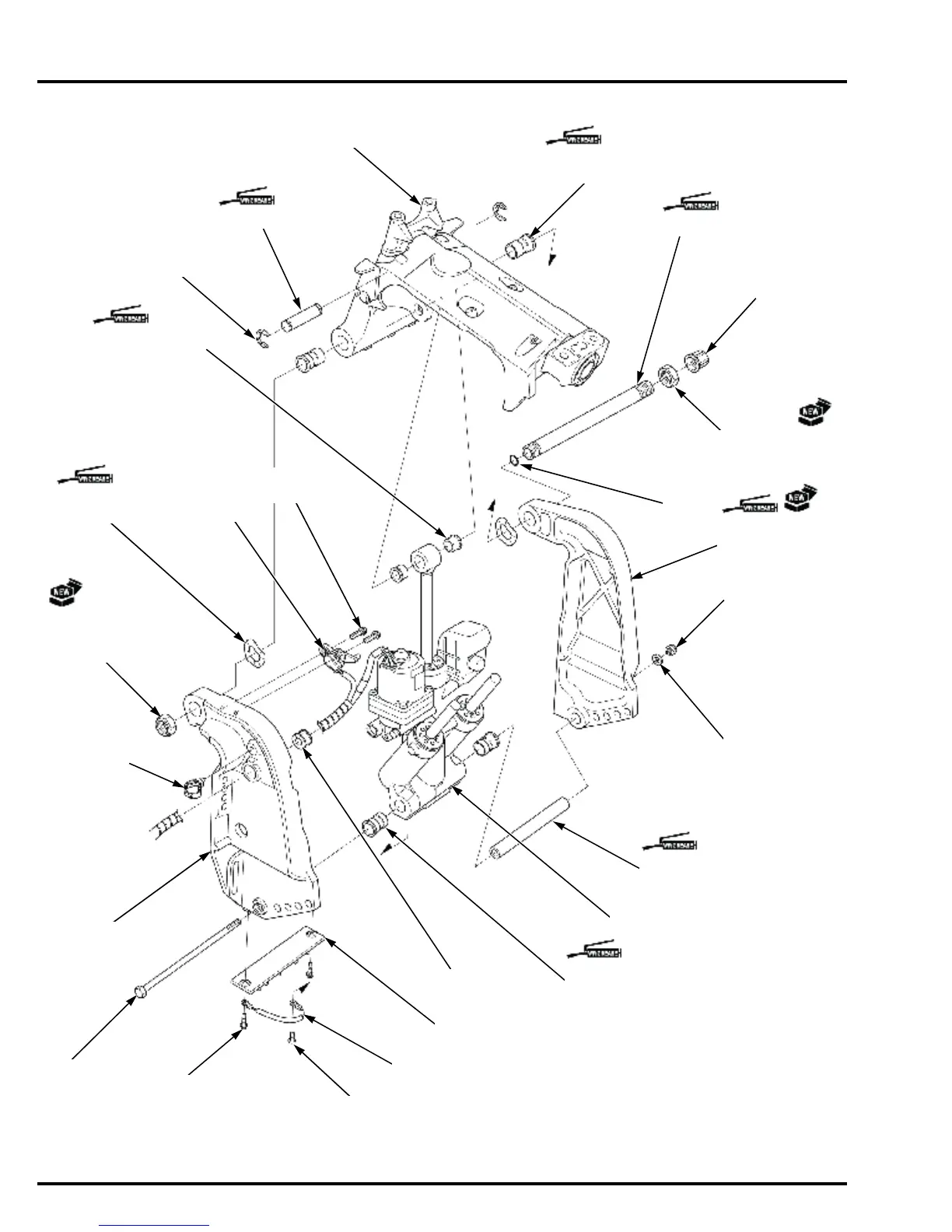

TRIM/TILT
EXPLODED VIEW
TILTING SHAFT
BOLT
(6 X 23 mm) (2)
R. STERN
BRACKET
TRIM
ANGLE
SENSOR
UPPER CYLINDER
BUSHING (2)
WASHER
(10 mm)
LOWER CYLINDER
BUSHING (2)
SWIVEL CASE
UPPER CYLINDER PIN
SWIVEL CASE
BUSHING (2)
L. STERN
BRACKET
WIRE HARNESS
CLIP
LOWER CYLINDER
COLLAR
BOLT
(10 X 235 mm)
E-RING (15 mm) (2)
ANODE METAL
SELF-LOCKING NUT (7/8-14 UNF)
POWER TRIM/TILT
MOTOR CORD
BUSHING
SELF-LOCKING NUT (10 mm)
GROUND CABLE
SCREW (6 X 8 mm)
BOLT
(6 X 20 mm) (2)
O-RING
TILTING BOLT
CAP
34 N·m (3.5 kgf·m, 25 lbf·ft)
WAVE WASHER
(26 mm) (2)
34 N·m (3.5 kgf·m, 25 lbf·ft)
SELF-LOCKING NUT
(25 X 2.0 mm)
