TOHATSU BFT75A - Page 51

2-32
dummyheaddummyhead

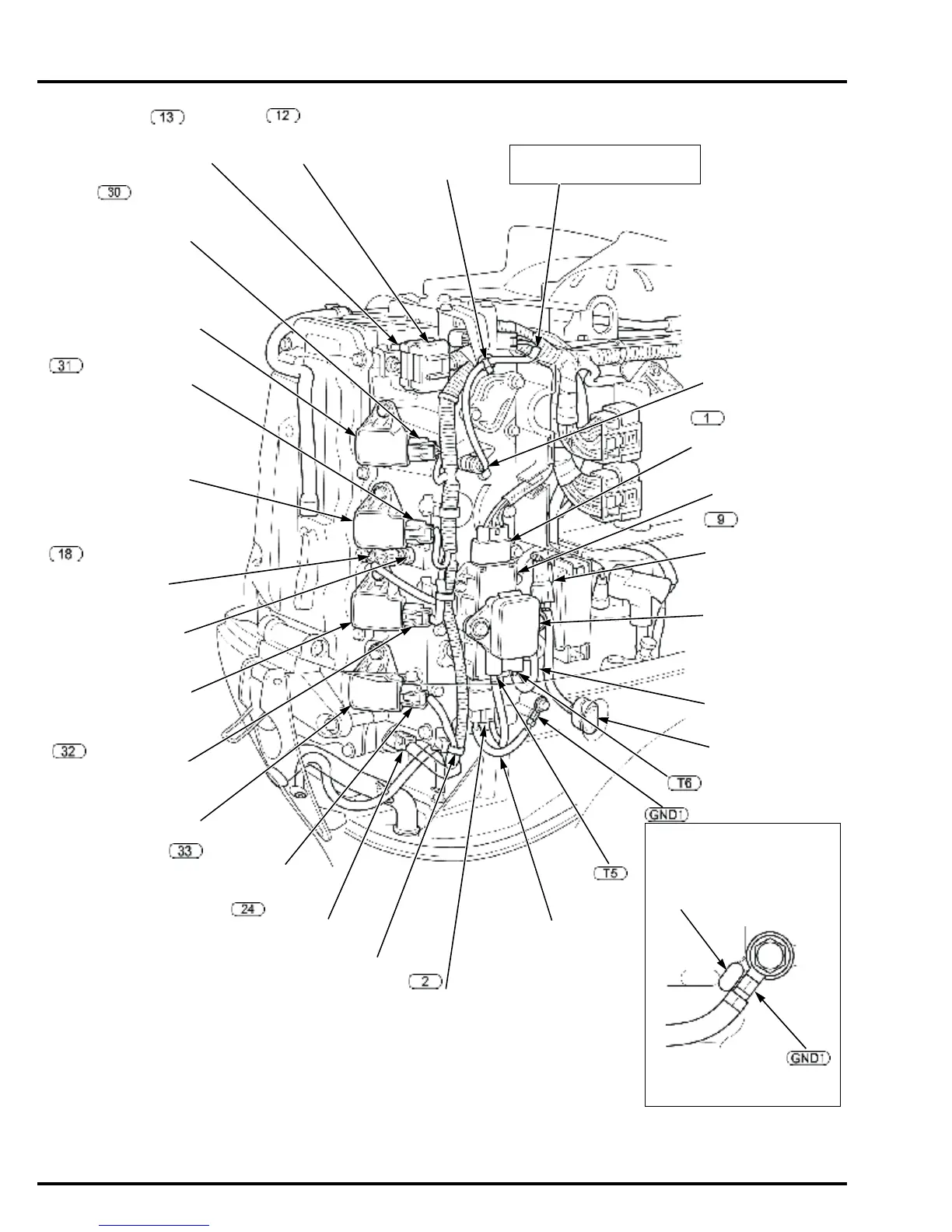

SERVICE INFORMATION
Tighten the bolt while pushing
the ground terminal against
the lug on the crankcase.
LUG
The protector tube must
contact the HO2S wire.
No.1 IGNITION COIL
3P CONNECTOR
STATOR 3P
CONNECTOR
REGULATOR/
RECTIFIER
POWER TRIM/TILT
SWITCH 3P
CONNECTOR
70 A FUSE BOX
FUSE CABLE
POWER TRIM/TILT
SWITCH
REGULATOR/
RECTIFIER
GROUND CABLE
REGULATOR/
RECTIFIER 3P
CONNECTOR
HARNESS
STRAP (30 mm)
CMP 3P CONNECTOR
No.2 IGNITION COIL
3P CONNECTOR
No.2 IGNITION COIL
ECT SENSOR 3
2P CONNECTOR
ECT SENSOR 3
No.3 IGNITION COIL
No.3 IGNITION COIL
3P CONNECTOR
No.4 IGNITION COIL
No.4 IGNITION COIL
3P CONNECTOR
HO2S
JOINT
CONNECTOR 1
JOINT
CONNECTOR 2
HARNESS BAND
CLIP
HO2S WIRE
No.1 IGNITION COIL
(Except LHGX type)
(Except LHGX type)
