TECHNICAL FEATURES
TECHNICAL FEATURES

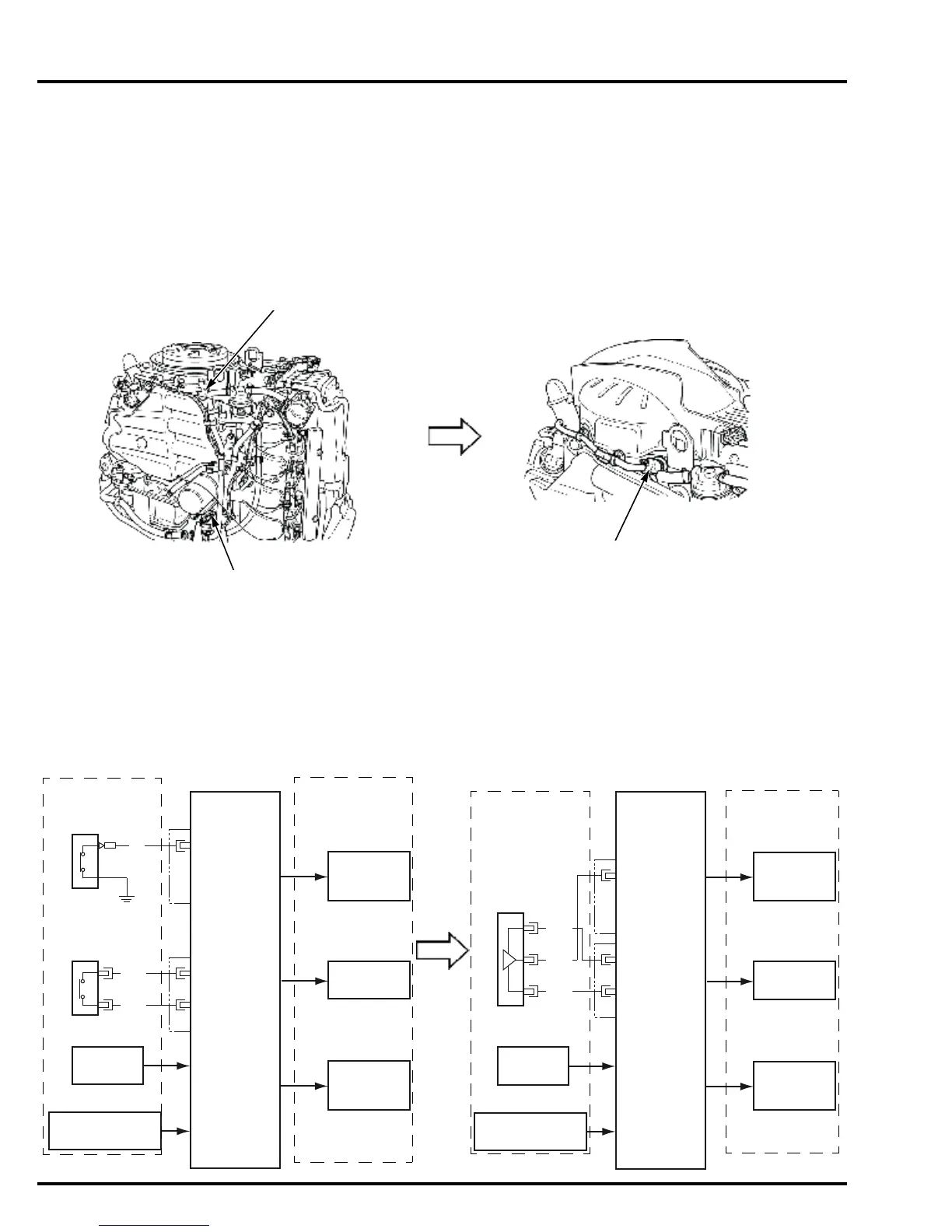

OIL PRESSURE ALERT SYSTEM
SYSTEM DESCRIPTION
This model utilizes an oil pressure alert system with the EOP sensor, which detects the oil pressure linearly, instead of a
conventional system that uses two EOP switches (high pressure side/low pressure side).
This system enables more accurate control of pressure alert, depending on the engine speed and engine temperature, which
realizes an enhanced reliability of the whole system.
CONVENTIONAL SYSTEM WITH EOP SWITCHES:
EOP SWITCH (HIGH
PRESSURE SIDE)
EOP SWITCH (LOW
PRESSURE SIDE)
NEW SYSTEM WITH EOP SENSOR:
EOP SENSOR
SG2
VCC2
POIL
G
Y/R
Bu
SG2
OPSH
OPSL
G/R
Y/R
P
CONVENTIONAL SYSTEM
ENGINE
SPEED
ENGINE
TEMPERATURE
OIL
INDICATOR
LIGHT
WARNING
BUZZER
ENGINE
SPEED
CONTROL
OPERATION
CONTROL
ECM
DETECTION
NEW SYSTEM
ECM
OPERATION
CONTROL
DETECTION
EOP SWITCH
(LOW
PRESSURE SIDE)
EOP SWITCH
(HIGH
PRESSURE SIDE)
EOP SENSOR
ENGINE
SPEED
ENGINE
TEMPERATURE
OIL
INDICATOR
LIGHT
WARNING
BUZZER
ENGINE
SPEED
CONTROL
