SERVICE INFORMATION
Cut the band end so its length is
15 – 20 mm (0.6 – 0.8 in).
REMOTE CONTROL
CABLE (SHIFT CABLE)
REMOTE CONTROL
CABLE (THROTTLE
CABLE)
POWER TRIM/
TILT SWITCH
WARNING
BUZZER
TUBE A
TUBE (40 mm)
INDICATOR
LIGHT
HARNESS
BAND B (2)
EMERGENCY
STOP SWITCH
TUBE B
COMBINATION
SWITCH
HARNESS BAND
POWER TRIM/
TILT SWITCH
WIRE
HARNESS
BAND

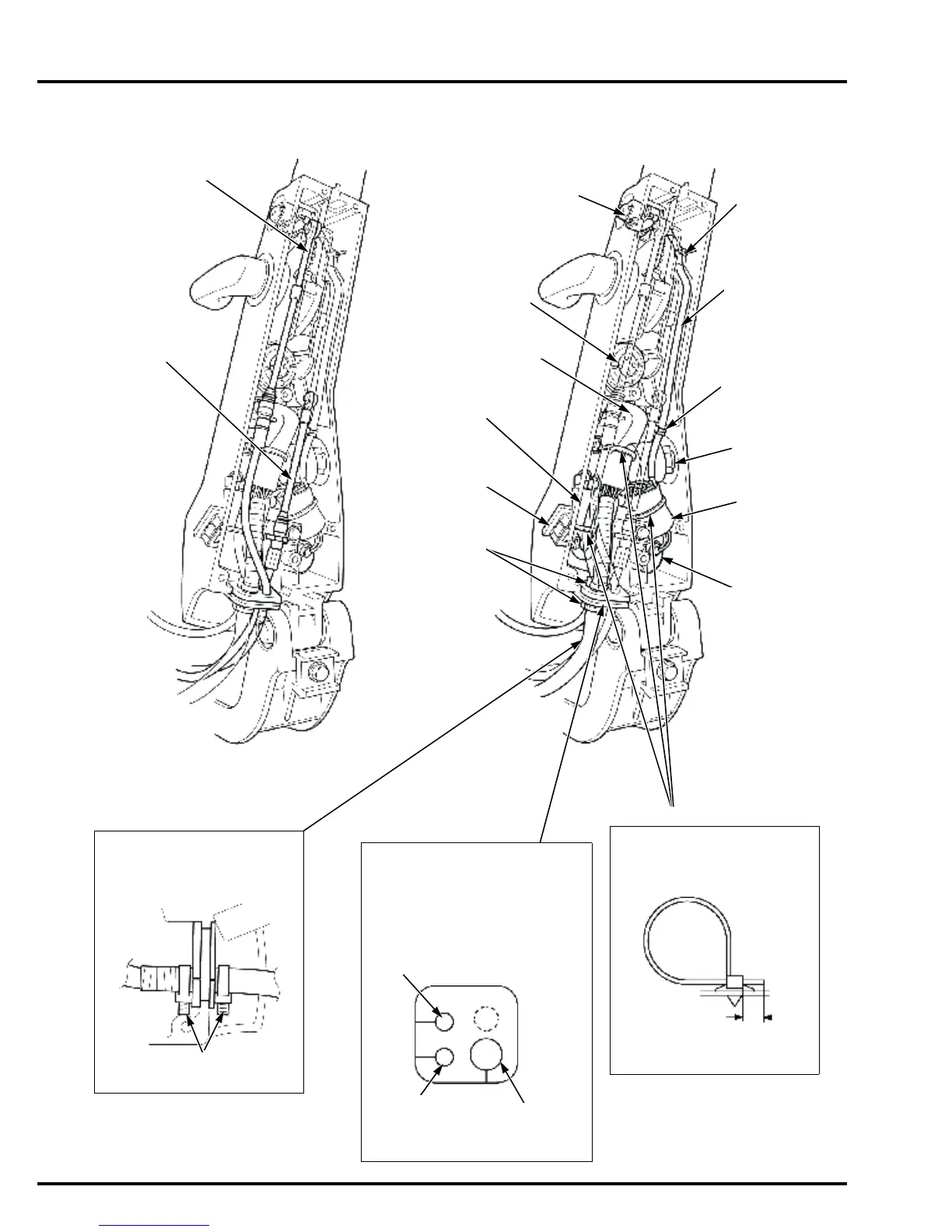

Set the cable as shown.
TILLER HANDLE CABLE
Set the grommet between
harness bands B.
<Grommet viewed from the
outboard motor side>
HARNESS
BAND B
TILLER HANDLE
CABLE HARNESS
HOLE
THROTTLE
CABLE HOLE
SHIFT CABLE
HOLE
15 – 20 mm
(0.6 – 0.8 in)
TILLER HANDLE TYPE:
GROMMET
HARNESS BAND CLIP
(Except LHGX
type)
(Except LHGX
type)
(Except LHGX
type)
(Except LHGX
type)
