SERVICE INFORMATION

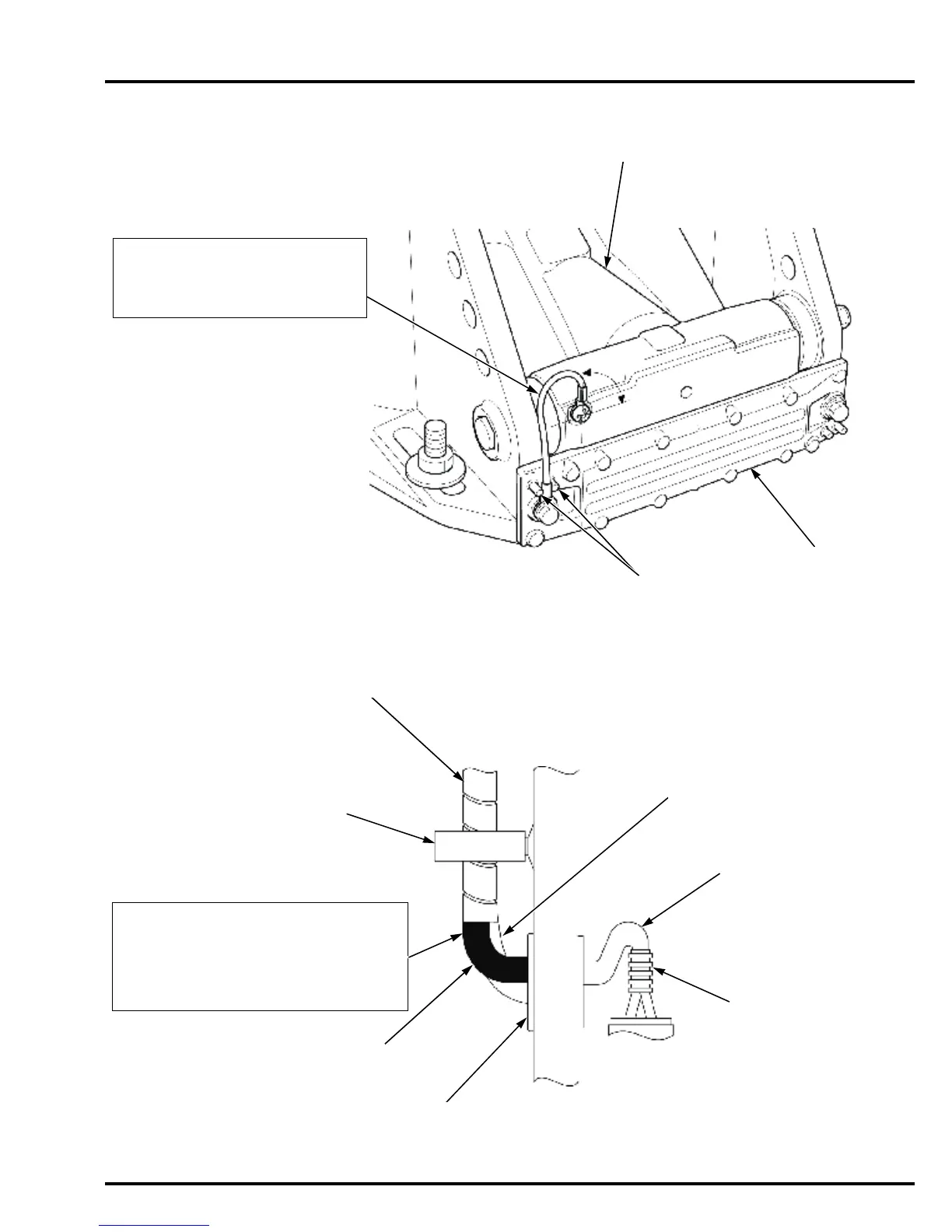

• Install by aligning the lower edge of the tape
with the motor wire bushing.
• Wrap the spiral tube by aligning the lower
edge with the upper edge of the tape on the
power tilt motor wire.
POWER TILT MOTOR
POWER TRIM/TILT
• Route between the lugs of the anode
metal.
• Install so that the angle is 90° as
shown at the power trim/tilt side.
LEAD WIRE
LUG
ANODE METAL
CORRUGATE TUBE
POWER TILT
MOTOR WIRE
TRIM ANGLE
SENSOR WIRE
WIRE
HARNESS CLIP
SPIRAL TUBE
(12 X 14.6 mm)
TAPE
MOTOR WIRE GROMMET
90°
(Except LHGX type)
(Except LHGX type)
(Except LHGX type)
(Except LHGX type)
(Except LHGX type)
(Except LHGX type)
(Except LHGX type)
