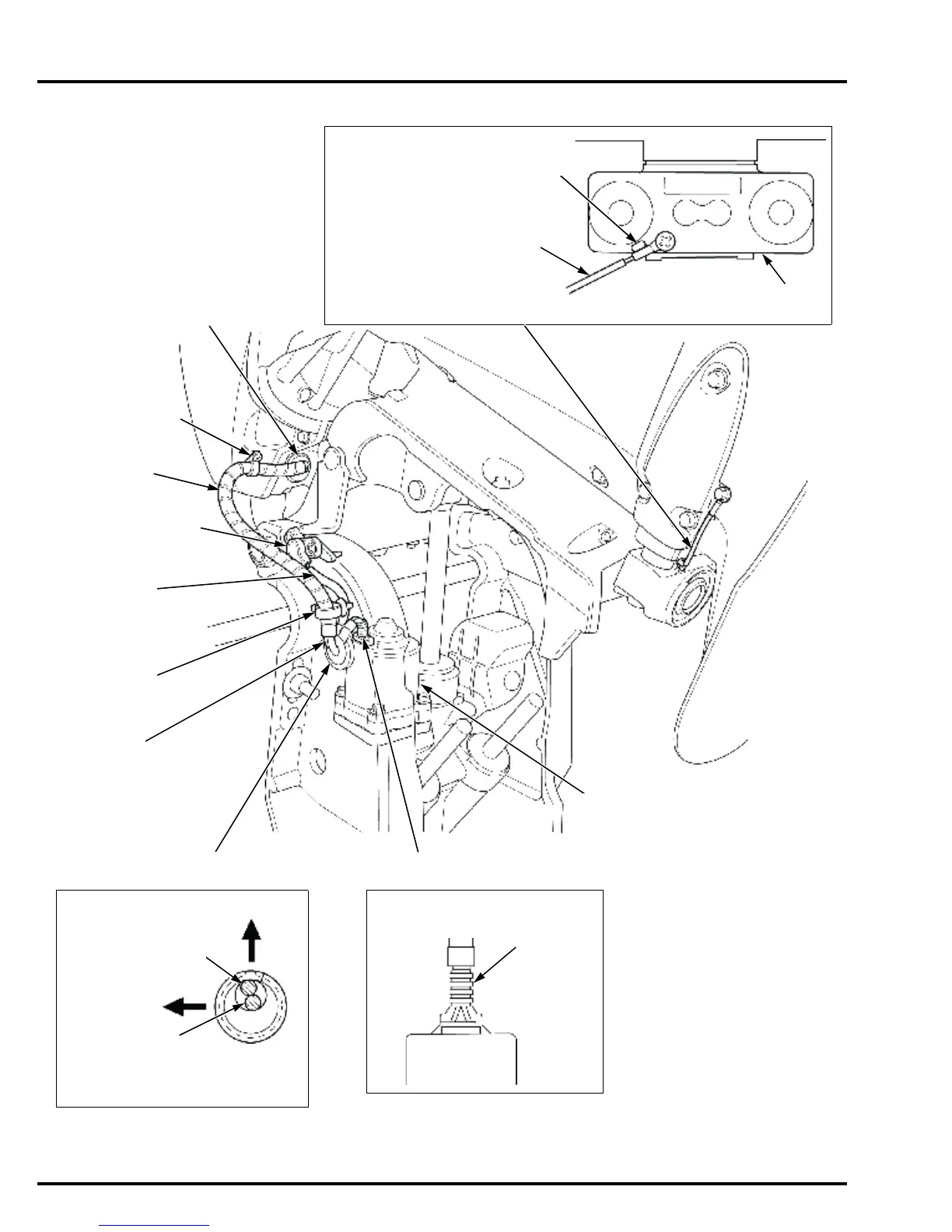

SERVICE INFORMATION
LEAD WIRE (137 mm)
Tighten the screw while pushing
the terminal against the lug of the
lower mount center housing.
UNDER COVER
GROMMET C
LUG
LEAD WIRE
(137 mm)
CLIP (14 mm)
SPIRAL TUBE
(12 X 14.6 mm)
WIRE
HARNESS CLIP
POWER TRIM
MOTOR WIRE
POWER TRIM MOTOR
CORRUGATE TUBE
This should
stand at
right angle.
MOTOR WIRE GROMMET
REARWARD
(Viewed from the
inside of the
stern bracket)
LOWER MOUNT
CENTER HOUSING
TRIM ANGLE
SENSOR WIRE
TRIM ANGLE
SENSOR WIRE
POWER TRIM
MOTOR WIRE
UPPER (ENGINE SIDE)
(Except LHGX
type)
(Except LHGX type)
(Except LHGX type)
TRIM ANGLE SENSOR
(Except LHGX type)
(Except LHGX type)
(Except LHGX type)
(Except LHGX type)
(Except LHGX type)
(Except LHGX type)
(Except LHGX type)
