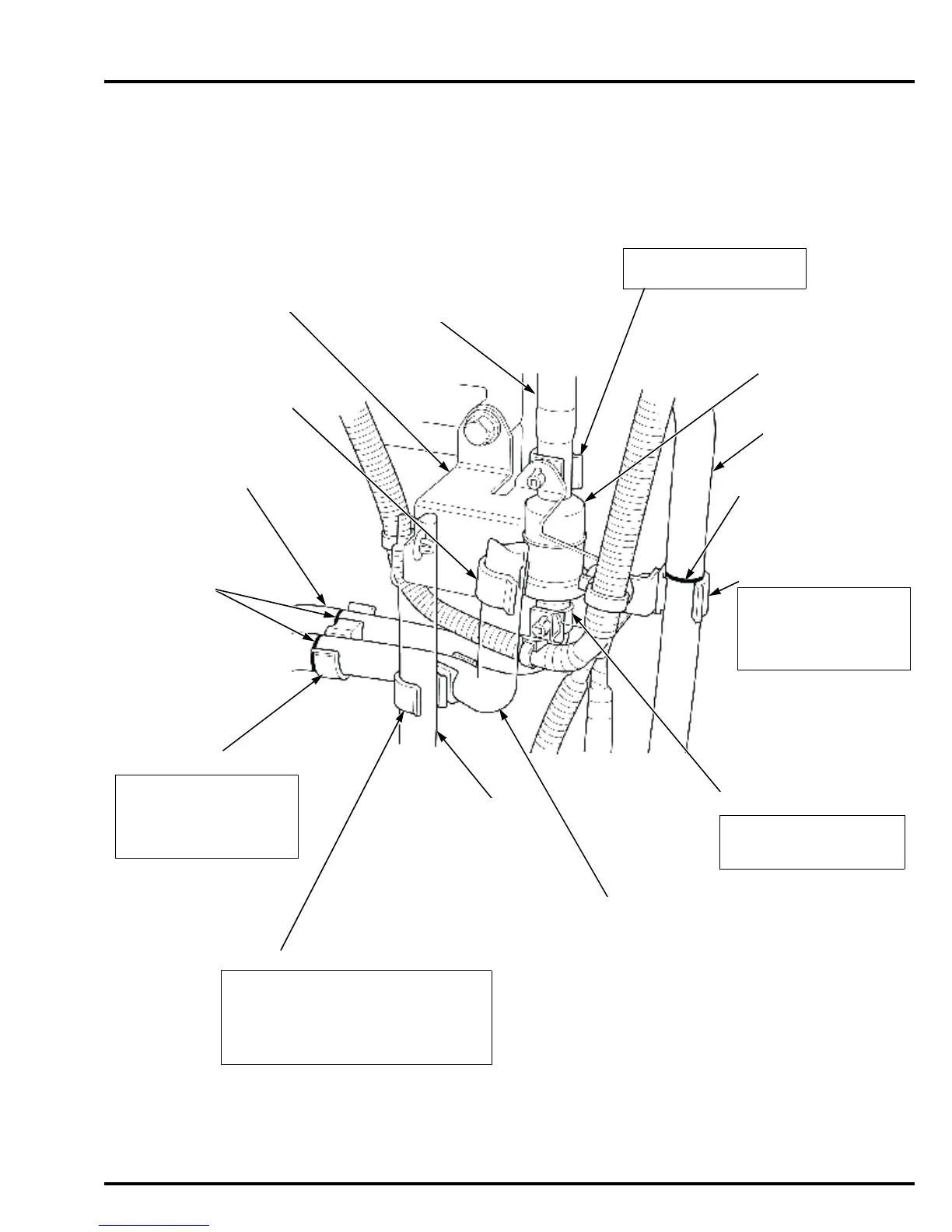

Install with the opening
facing the fuel tube C side.
• Install fuel tube D into the inside clip with
the opening of the clip facing up.
• Install fuel tube C into the outside clip
with the opening of the clip facing the
fuel line side.
FUEL TUBE D
AIR VENT
STRAINER
Install with the opening
facing as shown and align
the upper edge with the
paint mark.
FUEL TUBE CLAMP B
AIR VENT
TUBE B
FUEL TUBE
CLAMP B
AIR VENT
TUBE A
Install with the openings
facing up and align the left
edge with the right edge of
the paint marks.
FUEL TUBE CLAMP A
Install with the opening
facing the fuel line side.
FUEL TUBE CLAMP B
FUEL TUBE
BRACKET
HOSE CLIP
PAINT MARK
AIR VENT
TUBE C
FUEL TUBE CLAMP B
FUEL TUBE C
PAINT MARKS
To Next Page
