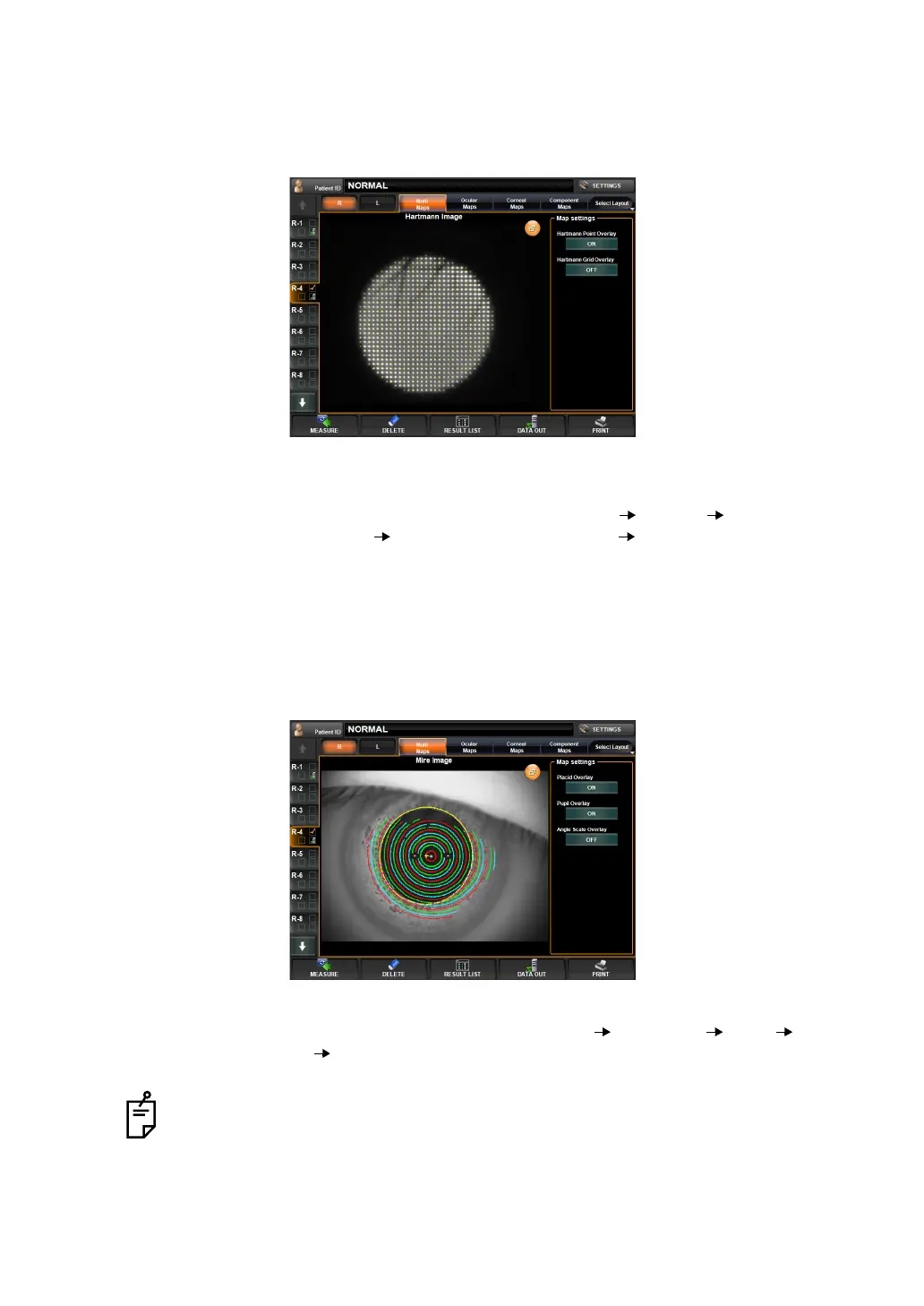

DISPLAYING THE MEASUREMENT RESULT
SETTING OVERLAY OF HARTMANN IMAGE, MIRE IMAGE
EXAMPLE: HARTMANN IMAGE
The image used for point image detection can be confirmed.
EXAMPLE: MIRE IMAGE
(Overlay-displayed ring/pupil image)
You can confirm how ring detection is performed. There are a total of 19 rings, and since rings
are colored and overlaid, it is possible to confirm the detection condition. Rings are colored in
red, green and blue starting from the inside and moving out so that the outermost ring is col
-
ored in red. The pupil is yellow-overlayed.
Operation: • When the image is tapped and dragged to the right, the overlay
condition can be changed as None
Cross Enclose with
square Cross/Enclose with square None in this order.
Operation: • When the image is tapped and dragged to the right, the overlay
condition can be changed as None
Ring/pupil Ring Pupil
None in this order.
When the corneal Mire image is enlarged and displayed from the corneal aberra-
tion map and IOL selection map, the overlay cannot be changed by dragging the
image. Besides, part of display items of "Map Setting" is different. For details, see
page
100.
(Example: Overlay display)
