DISPLAYING THE MEASUREMENT RESULT
DESCRIPTION ABOUT MEASUREMENT RESULTS
Here the data display of measurement results is described.
ANALYSIS CENTER
In the analysis result, data analyzed with the detected pupil center as the analysis center is
displayed.
If the pupil is not detected, the pupil diameter is not displayed. In this case, data obtained by
analyzing with the mechanical center (the main body's alignment sight) as the analysis center
is displayed.
The wavefront analysis center shows deviation from the mechanical center analyzed with the
pupil center, using center displacement.
DESCRIPTION ABOUT RMS DISPLAY OF OCULAR ABERRATION

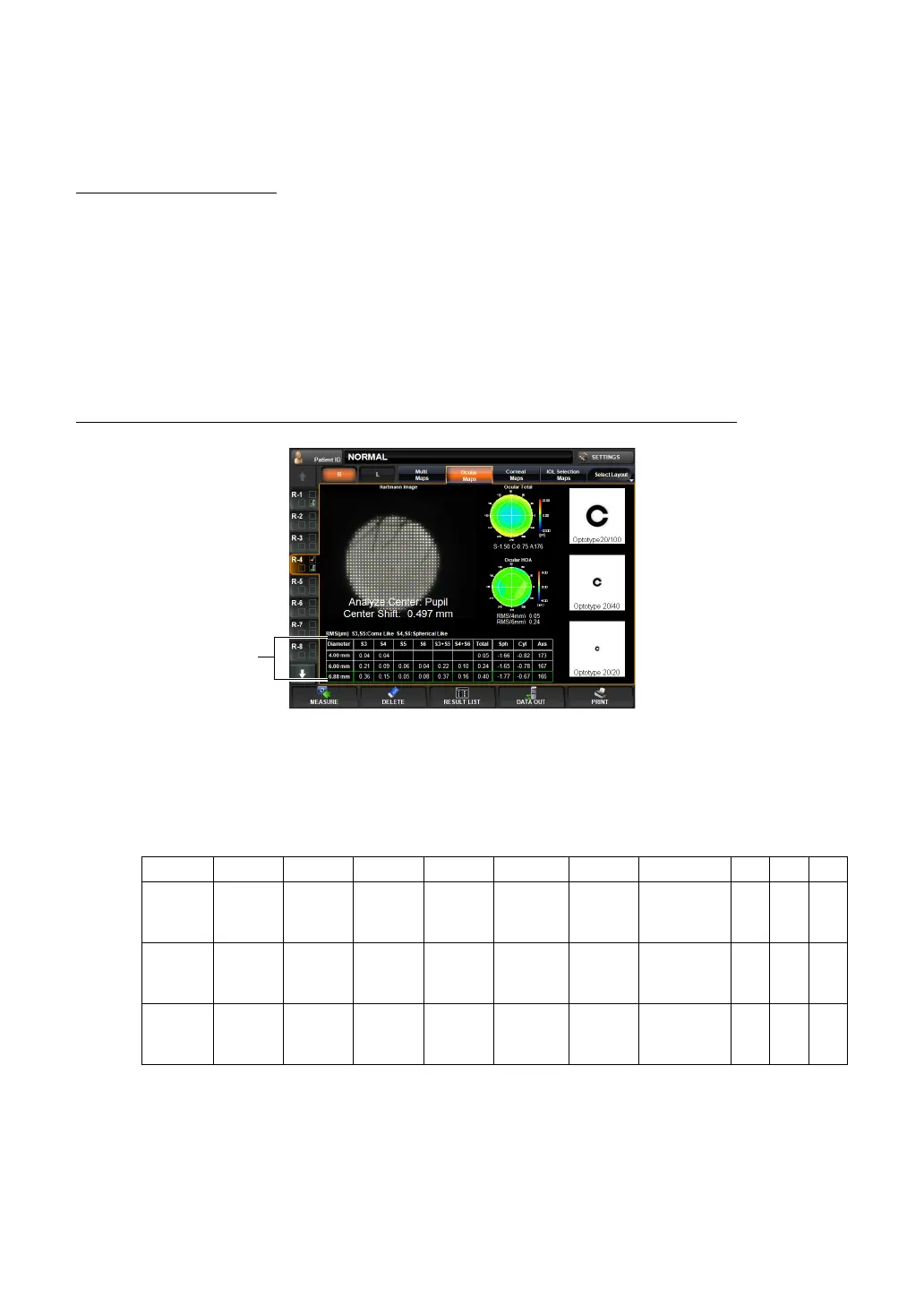

The table below is displayed in the ocular aberration map.
RMS display quantitatively shows higher order aberrations.
The table shows RMS values by summarizing coefficients for each order.
Diameter S3 S4 S5 S6 S3+S5 S4+S6 Total Sph Cyl Axs
(1) 4.00mm
3rd-order
RMS
4th-order
RMS
––– ––– ––– –––
Total higher-
order aberra
-
tion RMS
S C A
(2) 6.00mm
3rd-order
RMS
4th-order
RMS
5th-order
RMS
6th-order
RMS
3rd+5th-
order RMS
4th+6th-
order
RMS
Total higher-
order aberra
-
tion RMS
S C A
(3) (7.00mm)
3rd-order
RMS
4th-order
RMS
Total higher-
order aberra
-
tion RMS
S C A
RMS display of ocular
aberration
