190
REFERENCES

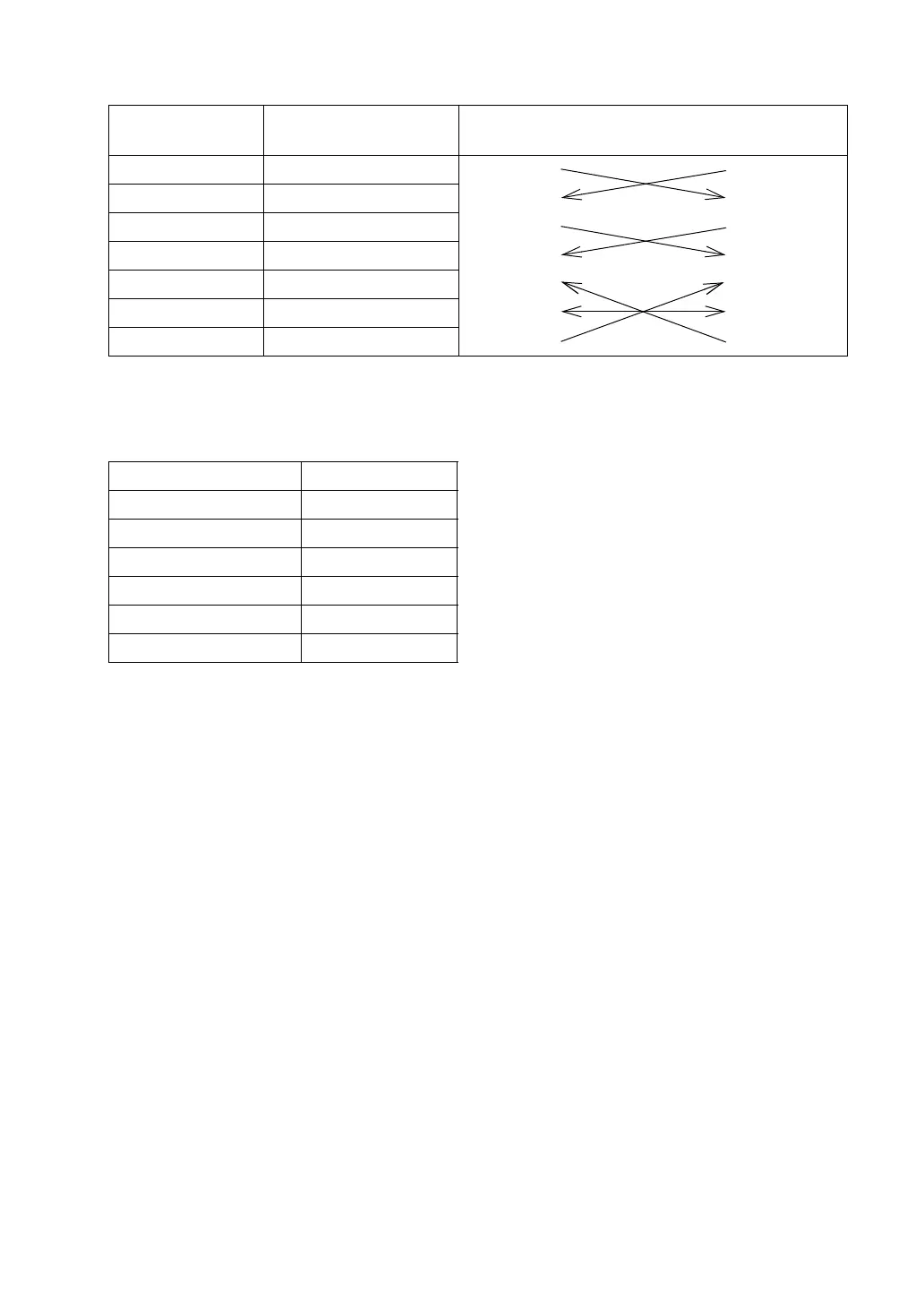

DIN 8pin - DIN 8pin connection
TRANSMISSION FORMULA
RTS-CTS control
Code Description
KR-1W side External
device side
SD (TXD) Data transmission 2 2
RD (RXD) Data receiving 3 3
RS (RTS) Request transmission 4 4
CS (CTS) Transmission ready 5 5
DR (DSR) Data set ready 6 6
SG (GND) Signal grounding 7 7
ER (DTR) Data terminal ready 8 8
Synchronization Non-synchronous
Communication speed 2400/9600 bps
Start bit 1 bit
Stop bit 1 bit
Data length 8 bit
Parity None
Operating code ASCII code
