Workman HDX AutoPage 5 − 10Chassis
Service and Repairs

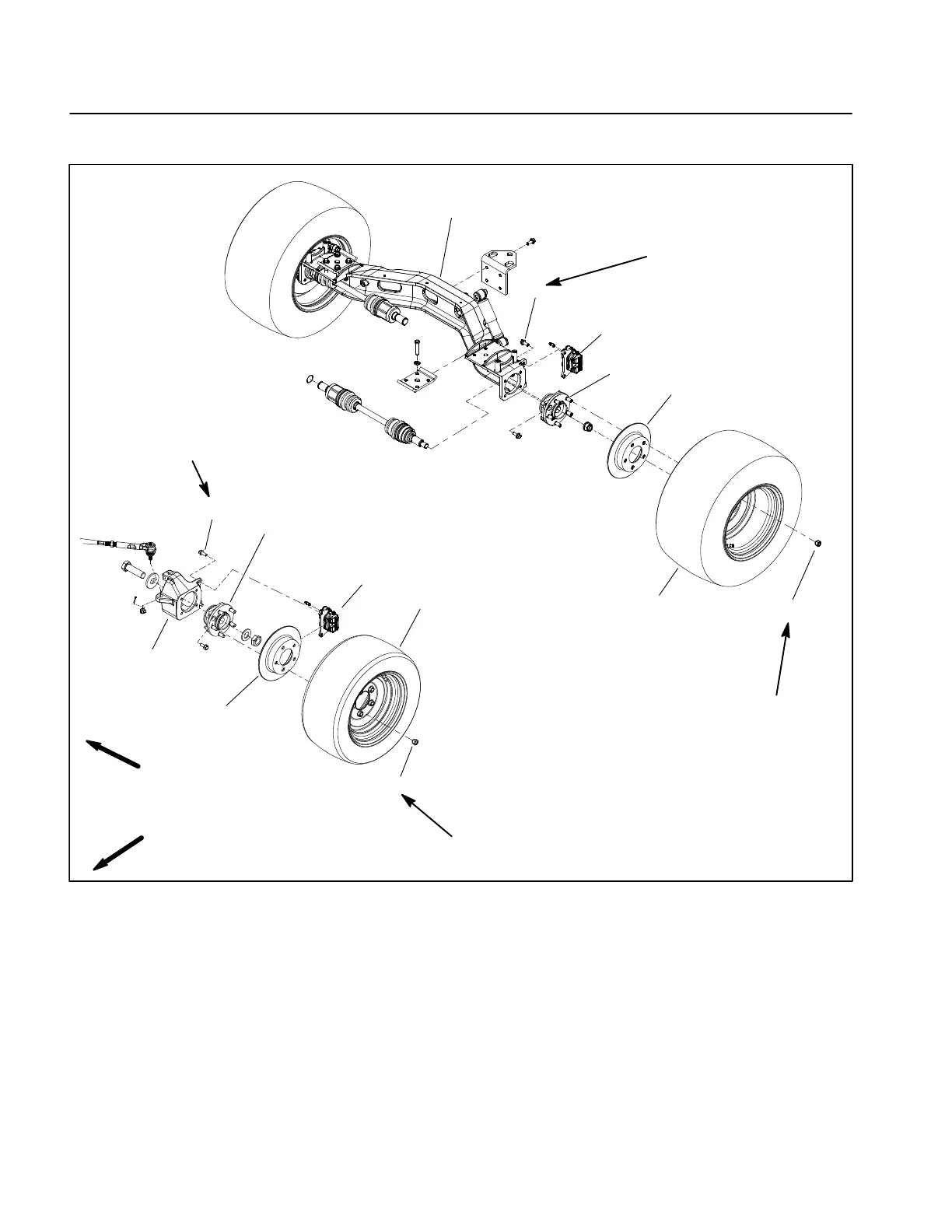

Wheel Assembly
1. Front wheel assembly
2. Brake rotor
3. Wheel hub assembly
4. Lug nut (5 per wheel)
5. Brake caliper
6. Flange head screw (2 per caliper)
7. Front knuckle (LH shown)
8. Rear wheel assembly
9. Rear axle
Figure 4
5
4
6
1
2
3
80 to 90 ft−lb
(109 to 122 N−m)
35 to 40 ft−lb
(48 to 55 N−m)
FRONT
RIGHT
5
3
8
9
2
4
80 to 90 ft−lb
(109 to 122 N−m)
35 to 40 ft−lb
(48 to 55 N−m)
6
7
