Toro Workman HDX Auto - Wheel Hub

Workman HDX AutoPage 5 − 26Chassis
Wheel Hub

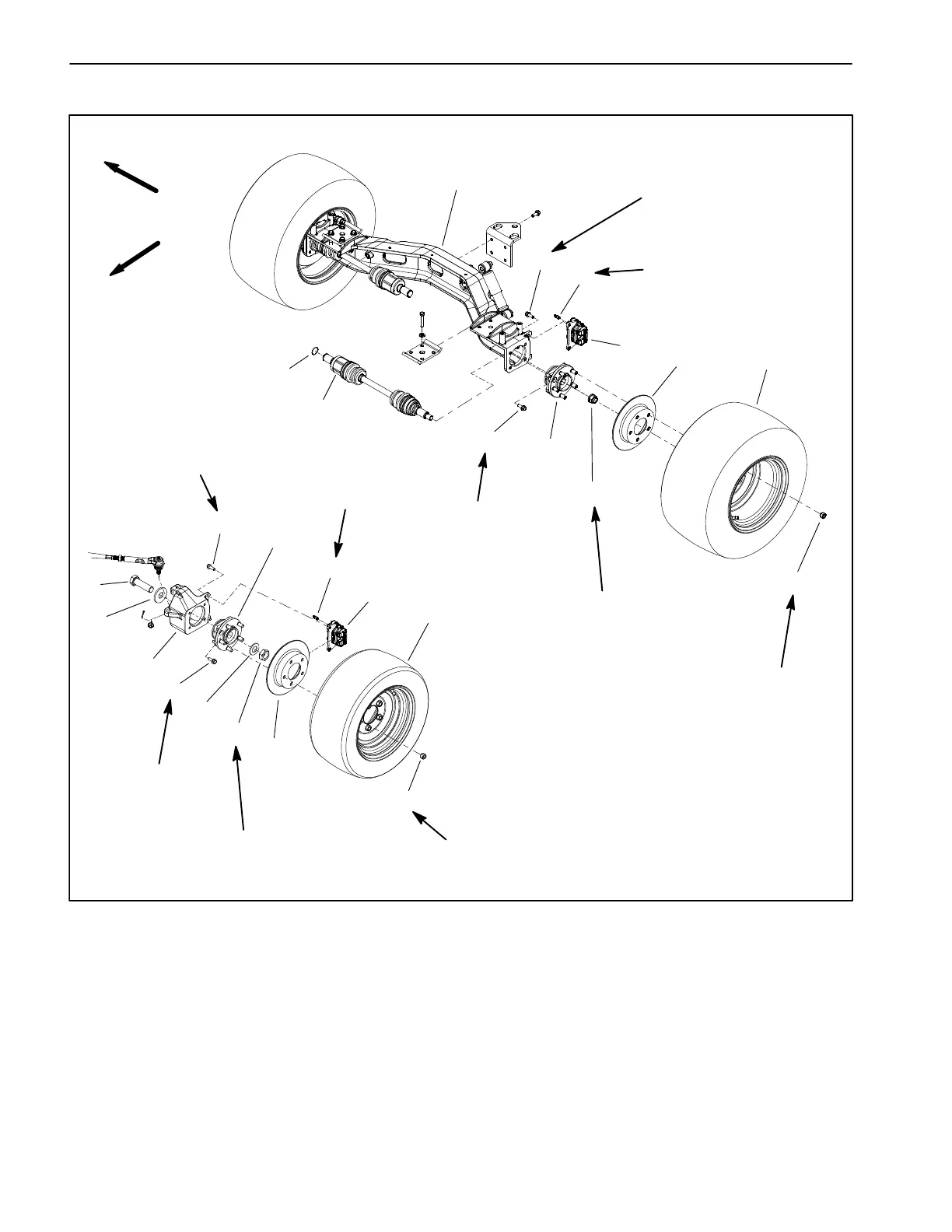

Figure 20
FRONT
RIGHT
1. Front wheel assembly
2. Brake rotor
3. Wheel hub assembly
4. Lug nut (5 per wheel)
5. Brake caliper
6. Flange head screw (2 per caliper)
7. Front knuckle (LH shown)
8. Bleed screw
9. Lock nut
10. Flat washer
11. Hardened washer
12. Cap screw
13. Flange head screw (4 per hub)
14. Rear axle
15. Rear wheel assembly
16. Spindle nut
17. CV axle assembly
18. O−ring
5
3
2
4
80 to 90 ft−lb
(109 to 122 N−m)
35 to 40 ft−lb
(48 to 55 N−m)
6
5
4
6
1
2
3
80 to 90 ft−lb
(109 to 122 N−m)
35 to 40 ft−lb
(48 to 55 N−m)
7
8
8
54 to 66 in−lb
(6.2 to 7.4 N−m)
54 to 66 in−lb
(6.2 to 7.4 N−m)
9
10
11
13
12
15
14
16
18
17
13
35 to 40 ft−lb
(48 to 55 N−m)
170 to 180 ft−lb
(231 to 244 N−m)
170 to 180 ft−lb
(231 to 244 N−m)
35 to 40 ft−lb
(48 to 55 N−m)
NOTE: If vehicle is equipped with optional four wheel
drive kit, see CV Axle Assembly in the Service and Re-
pairs section of Chapter 8 − Four Wheel Drive (Optional
Kit) for front wheel hub removal and installation proce-
dure.
