Toro Workman HDX Auto - Front Control Arms

Workman HDX AutoPage 5 − 32Chassis

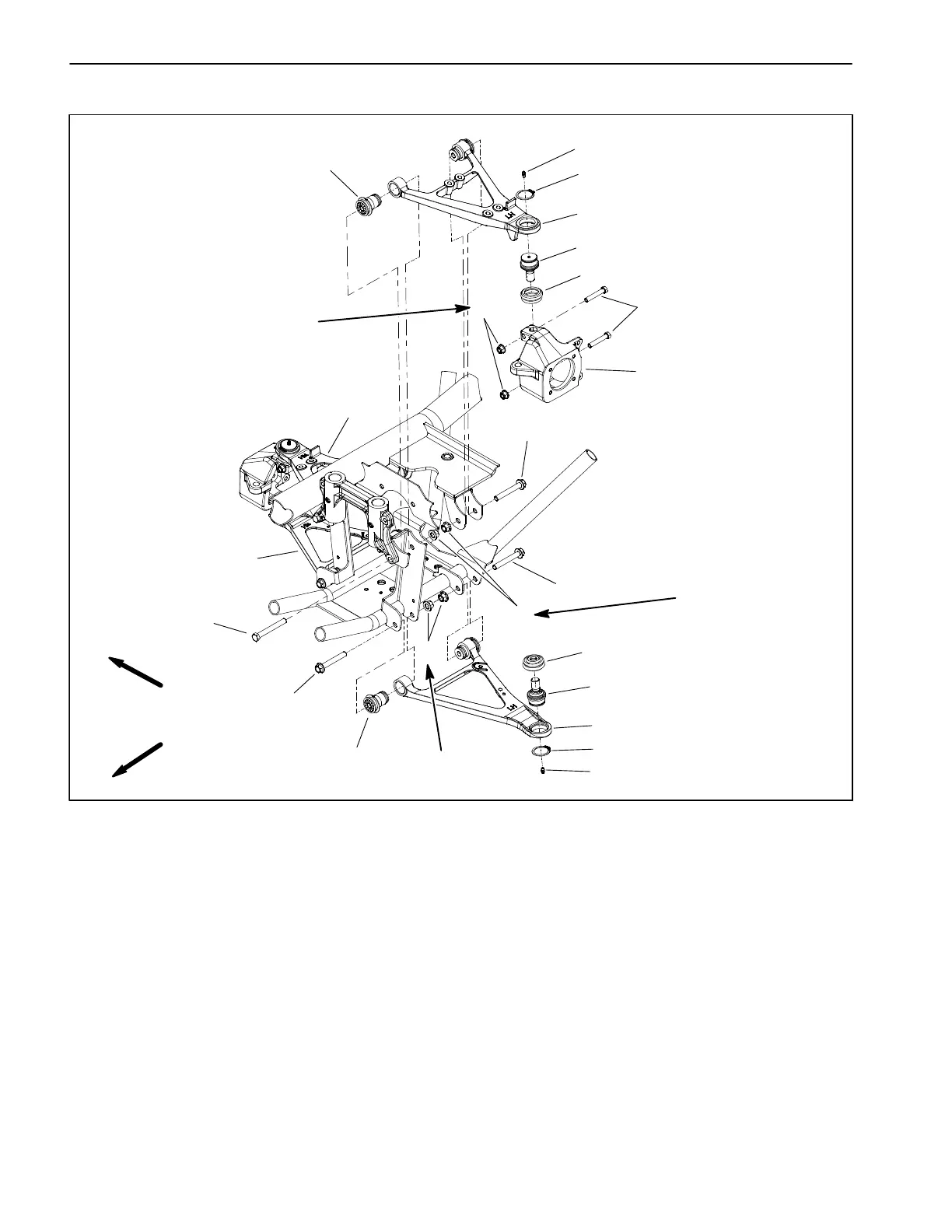

Front Control Arms
1. LH upper control arm
2. LH lower control arm
3. RH upper control arm
4. RH lower control arm
5. Cap screw (4)
6. Flange nut (4)
7. Flange head screw (6)
8. Lock nut (8)
9. Cap screw (2)
10. Flange bushing (2 used per arm)
11. Ball joint
12. Grease fitting
13. Ball joint seal
14. Knuckle (LH shown)
15. Retaining ring
Figure 24
FRONT
RIGHT
40 to 50 ft−lb
(55 to 67 N−m)
70 to 80 ft−lb
(94 to 109 N−m)
3
9
1
4
2
7
10
12
12
14
11
10
5
13
15
6
8
7
7
8
11
13
15
70 to 80 ft−lb
(94 to 109 N−m)
