Workman HDX AutoPage 4 − 40Drive Train
Rear Differential

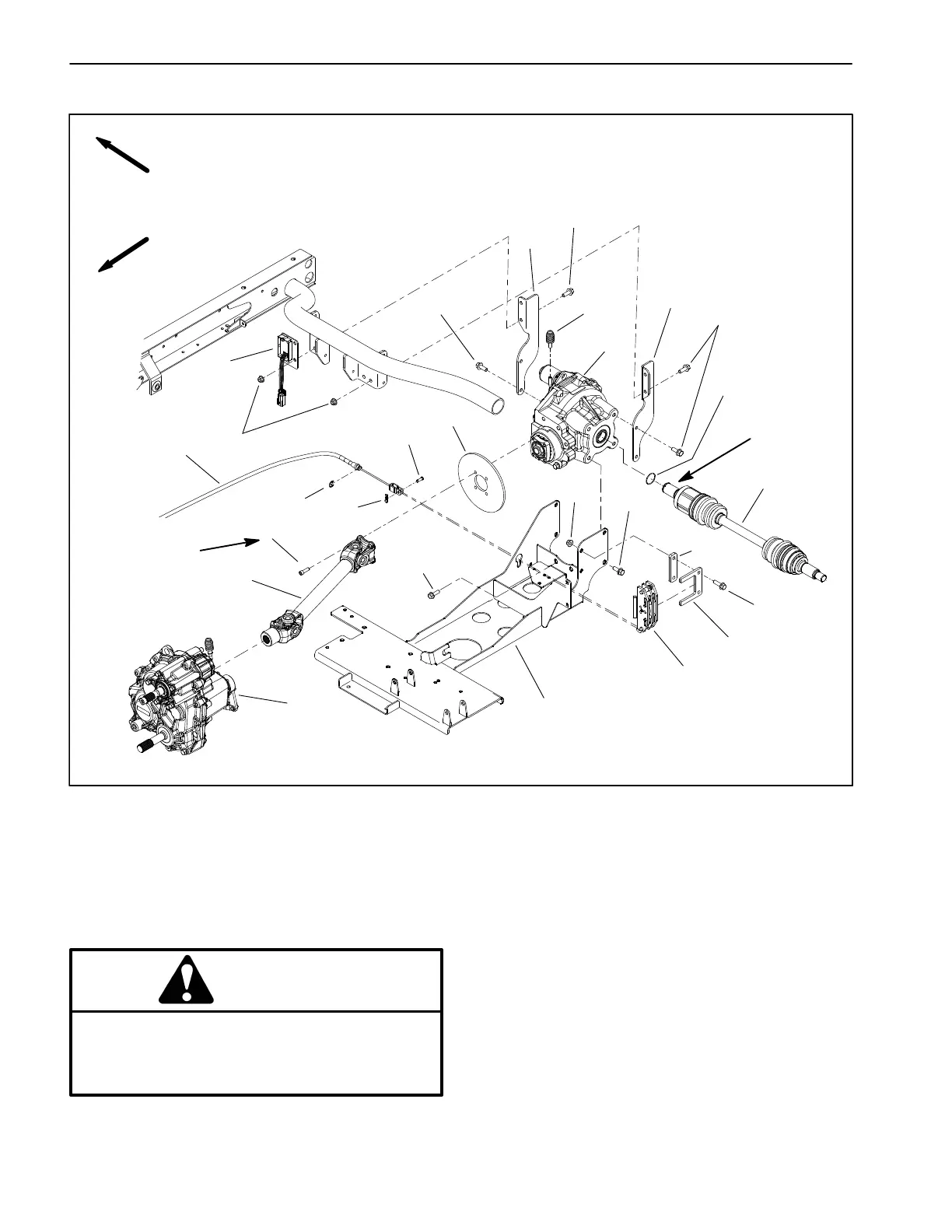

Figure 45
FRONT
RIGHT
1. Transmission
2. Rear differential
3. Rear driveshaft
4. Socket head screw (4)
5. Parking brake rotor
6. Parking brake caliper
7. Flange head screw (2)
8. Lock nut (6)
9. Brake mount plate
10. Spacer
11. Parking brake cable
12. Clevis pin
13. Hair pin
14. Retaining ring
15. Engine/transmission mount
16. Flange head screw (14)
17. Breather
18. O−ring (2)
19. CV axle (2)
20. LH rear differential mount
21. RH rear differential mount
22. Solenoid controller assembly
23 to 27 ft−lb
(32 to 36 N−m)
2
3
6
8
9
10
11
13
1
5
7
12
14
4
15
8
16
17
16
16
16
16
18
19
20
21
22
Antiseize
Lubricant
CAUTION
The engine, exhaust system and drive system
components may be hot. To avoid possible
burns, allow all components to cool before work-
ing on drive system components.
