Toro Workman HDX Auto - Speed Control System

Workman HDX AutoPage 4 − 16Drive Train

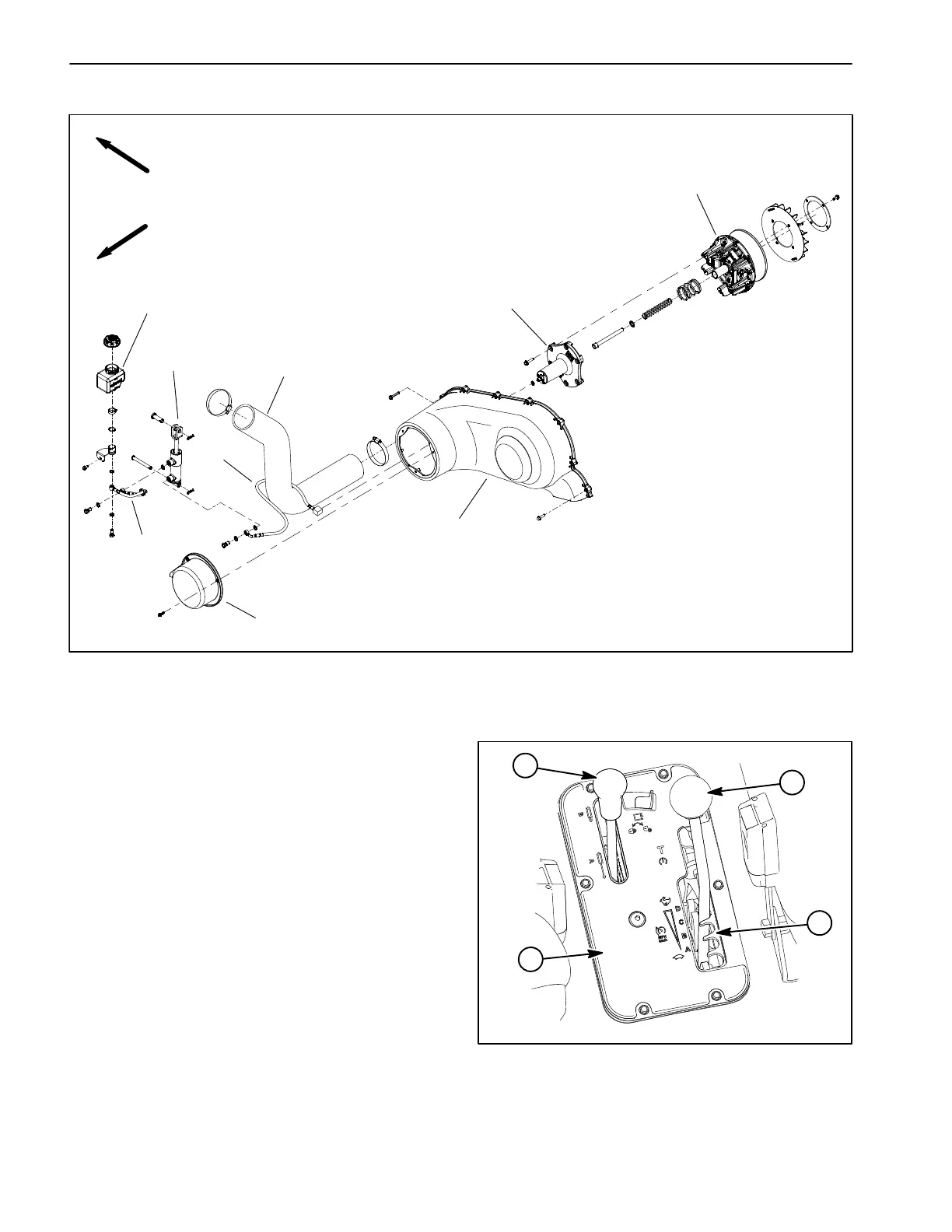

Speed Control System
1. Primary clutch
2. Speed limiter assembly
3. CVT enclosure cover
4. Speed limiter cover
5. CVT intake hose
6. Speed control hose
7. Cylinder
8. Hose
9. Reservoir
Figure 17
FRONT
RIGHT
2
3
6
1
5
7
4
8
9
The Workman Auto speed control system includes the
speed limiter assembly, cylinder, reservoir, speed range
lever and connecting hoses.
Disassembly (Fig. 17)
1. Park vehicle on a level surface, shut engine off, re-
move key from ignition switch and apply parking brake.
2. Move speed range lever to the transport (T) position
to remove pressure in the speed control system.
3. Remove control plate from seat base to access
speed control system components (Fig. 18):
A. Remove knobs from speed range lever and hy-
draulic lift lever.
B. Remove six (6) washer head screws that secure
control plate to seat base.
C. Lift control plate from seat base.
1. Speed range lever
2. Speed range settings
3. Hydraulic lift lever
4. Control plate
Figure 18
2
1
3
4
