Toro Workman HDX Auto - Adjustments; Shift Cable Adjustment

Workman HDX Auto Page 4 − 11 Drive Train
Adjustments
Shift Cable Adjustment
For correct vehicle operation, shift cable adjustment
should allow the transmission lever on the seat base
console (Fig. 10) to move fully between all transmission
positions.
1. Park vehicle on a level surface, raise and support ve-
hicle cargo bed (if installed), shut engine off and engage
the parking brake. Remove key from the ignition switch.
2. Adjust jam nuts on shift cable (item 6 in Fig. 11) to al-
low full range of motion between PARK and DRIVE at
transmission lever. If necessary, additional cable adjust-
ment can be made with jam nuts on cable clevis (item 7
in Fig. 11) at transmission lever.
3. Make sure that jam nuts are properly tightened after
adjustment.
4. Remove bed support from cargo bed lift cylinder and
lower bed after shift cable adjustment is completed.

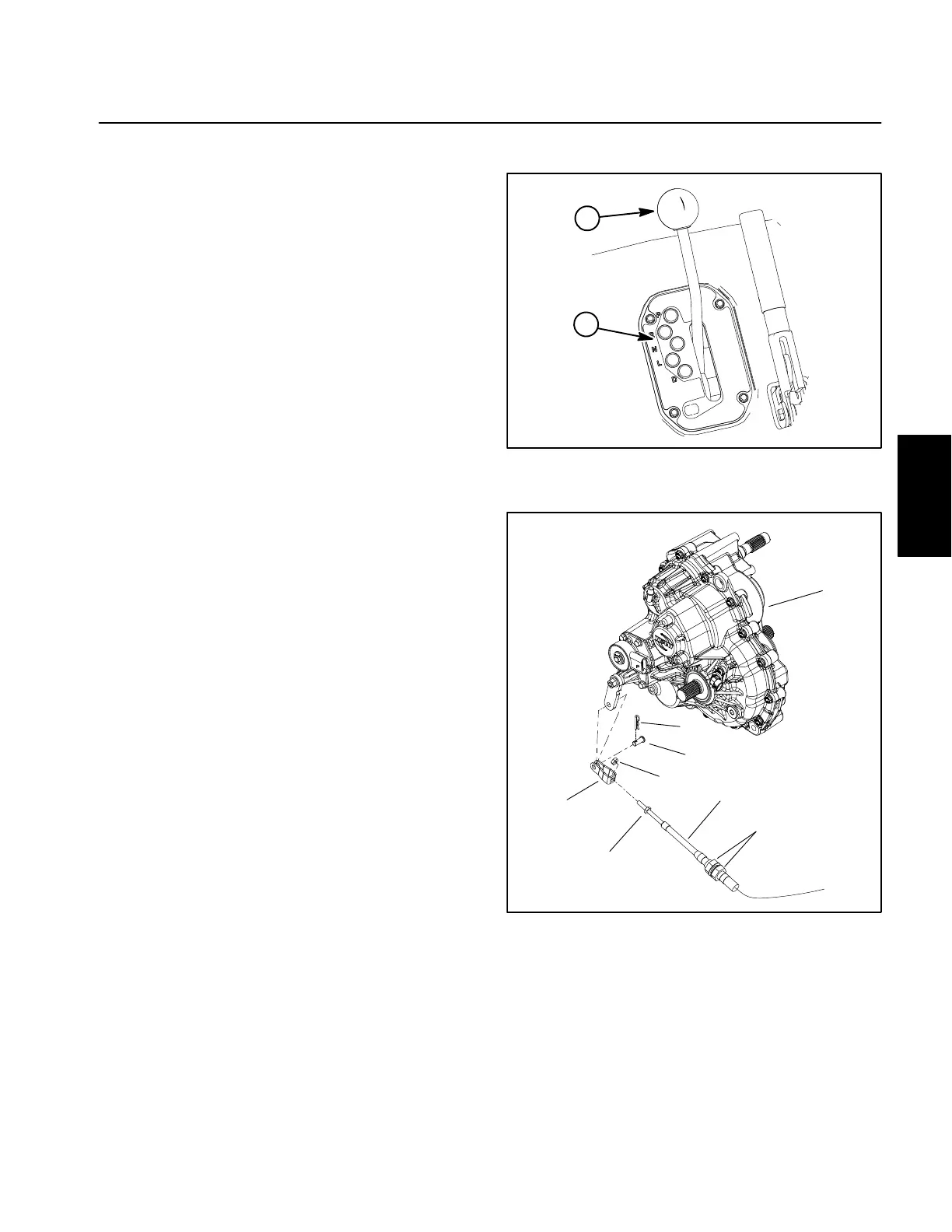

1. Transmission lever 2. Transmission positions
Figure 10
2
1
1. Transmission
2. Shift cable
3. Hairpin
4. Clevis pin
5. Cable clevis
6. Jam nut (2)
7. Jam nut (2)
Figure 11
2
3
6
1
5
4
7
7
