Workman HDX AutoPage 5 − 24Chassis

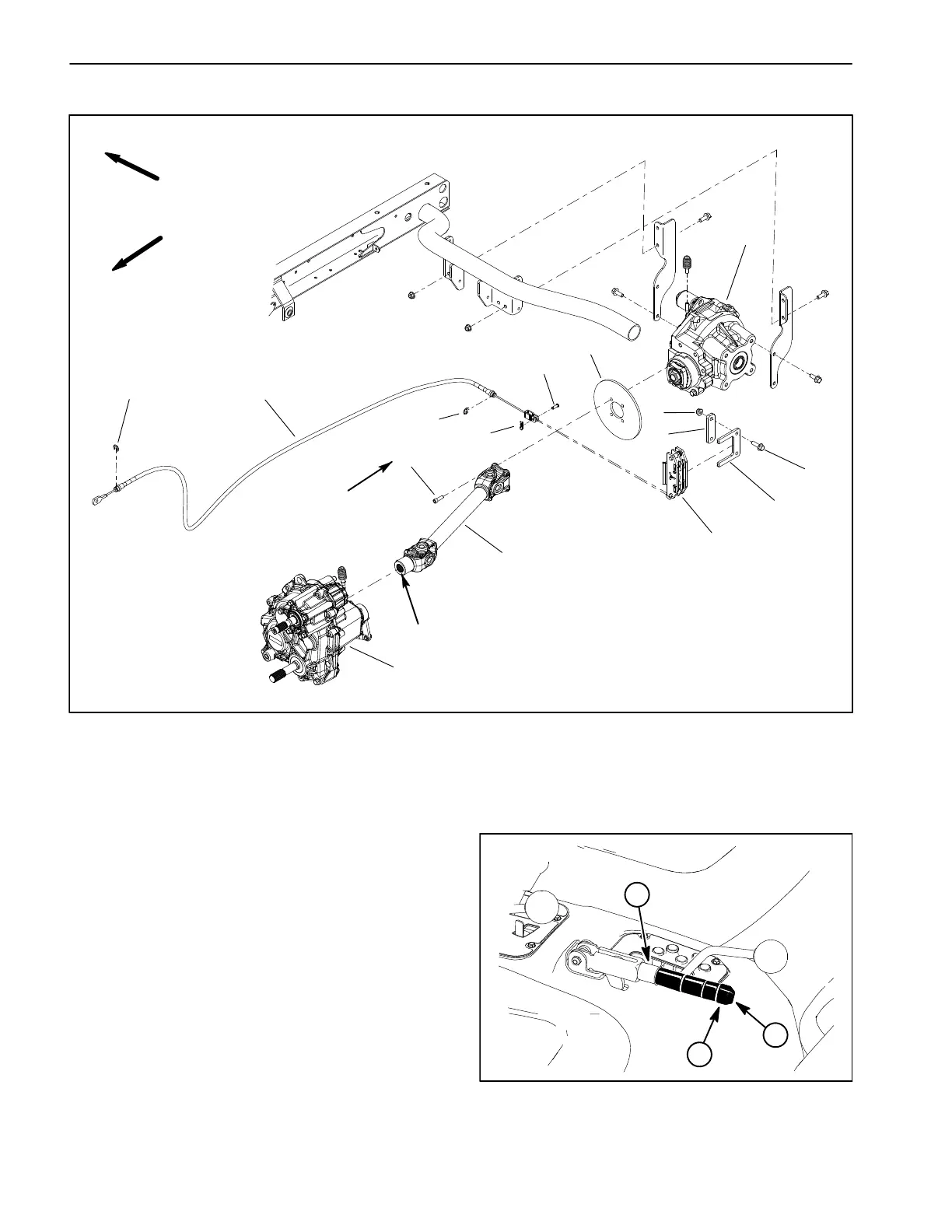

Parking Brake Caliper
1. Transmission
2. Rear differential
3. Parking brake cable
4. Retaining ring (2)
5. Clevis pin
6. Hairpin
7. Parking brake rotor
8. Parking brake caliper
9. Flange nut (2)
10. Flange head screw (2)
11. Brake mount plate
12. Parking brake spacer
13. Socket head screw (4)
14. Rear driveshaft
Figure 17
2
3
6
8
9
10
11
13
1
5
7
12
14
4
4
23 to 27 ft−lb
(32 to 36 N−m)
Grease
FRONT
RIGHT
Disassembly (Fig. 17)
1. Park vehicle on a level surface, raise and support ve-
hicle cargo bed (if installed), shut engine off and engage
the parking brake. Remove key from the ignition switch.
2. Remove brake lever handle from parking brake le-
ver. Loosen set screw in parking brake lever knob
(Fig. 18). Turn knob on parking brake lever counter-
clockwise all the way to loosen brake cable adjustment.
3. Jack up and support rear of vehicle (see Jacking Ve-
hicle in the Safety Instructions section of Chapter 1 −
Safety).
Figure 18
1. Parking brake lever
2. Knob
3. Set screw
1
2
3
