Toro Workman HDX Auto - Gear Pump (Vehicles with High Flow Hydraulics)

Workman HDX AutoPage 7 − 38Hydraulic System
Gear Pump (Vehicles with High Flow Hydraulics)
1. Hose clamp (4)
2. Hydraulic hose
3. Hydraulic hose
4. Hydraulic hose
5. O−ring
6. 45
o
hydraulic fitting
7. O−ring
8. Hydraulic hose
9. O−ring
10. 45
o
hydraulic fitting
11. O−ring
12. Gear pump
13. Flange nut (4)
14. Flange head screw (4)
15. Pump mount
16. Square key
17. 45
o
hydraulic fitting (2)
18. Hydraulic fitting
19. O−ring
20. Tee fitting
21. O−ring
22. Oil filter assembly
23. Hydraulic manifold

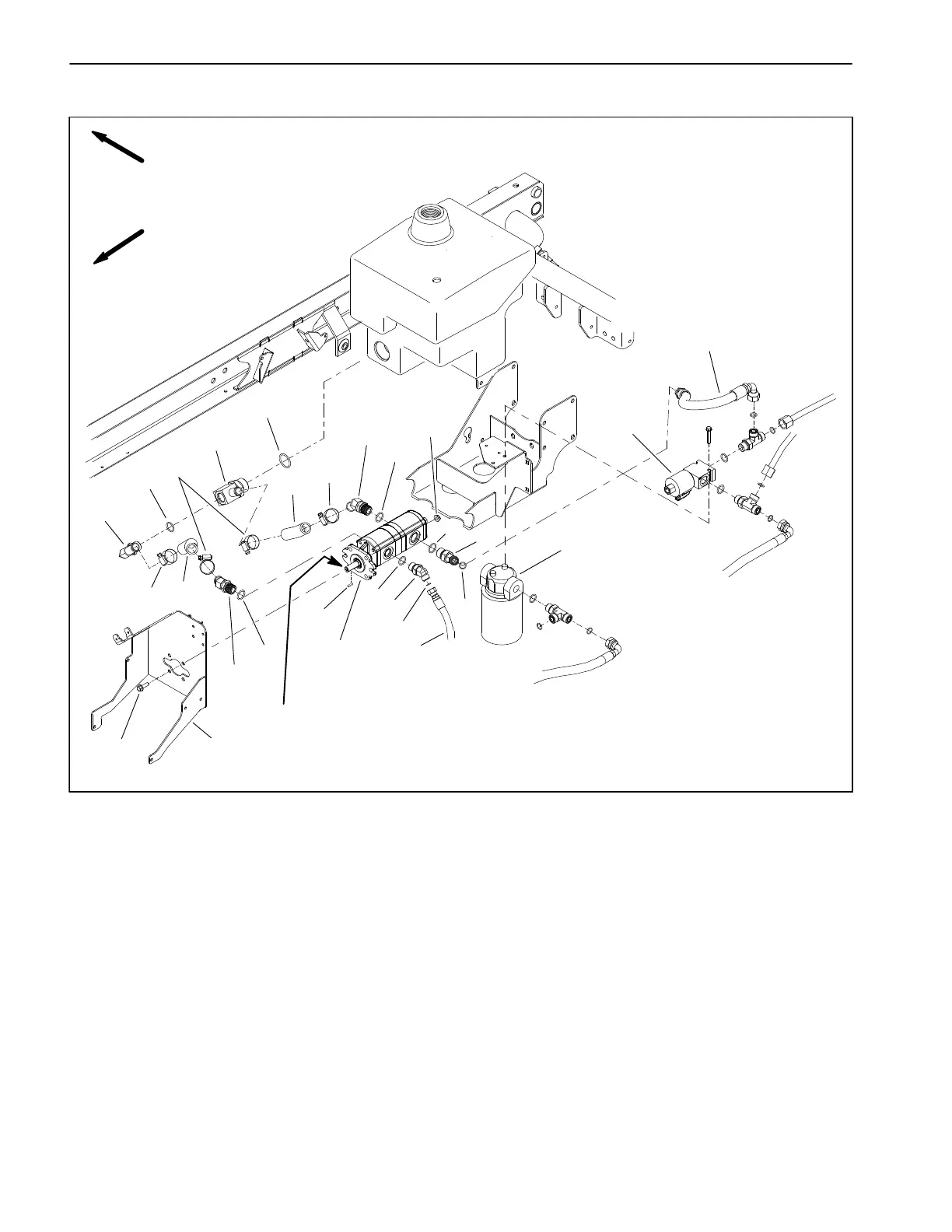

Figure 31
FRONT
RIGHT
2
3
6
8
9
10
11
13
1
5
7
12
14
15
17
18
19
20
4
21
22
23
1
1
16
17
Antiseize
Lubricant
7
7
NOTE: Workman HDX automatic vehicles equipped
with High Flow Hydraulics use a two (2) section gear
pump as shown in Figure 31.
