Workman HDX AutoPage 7 − 42Hydraulic System

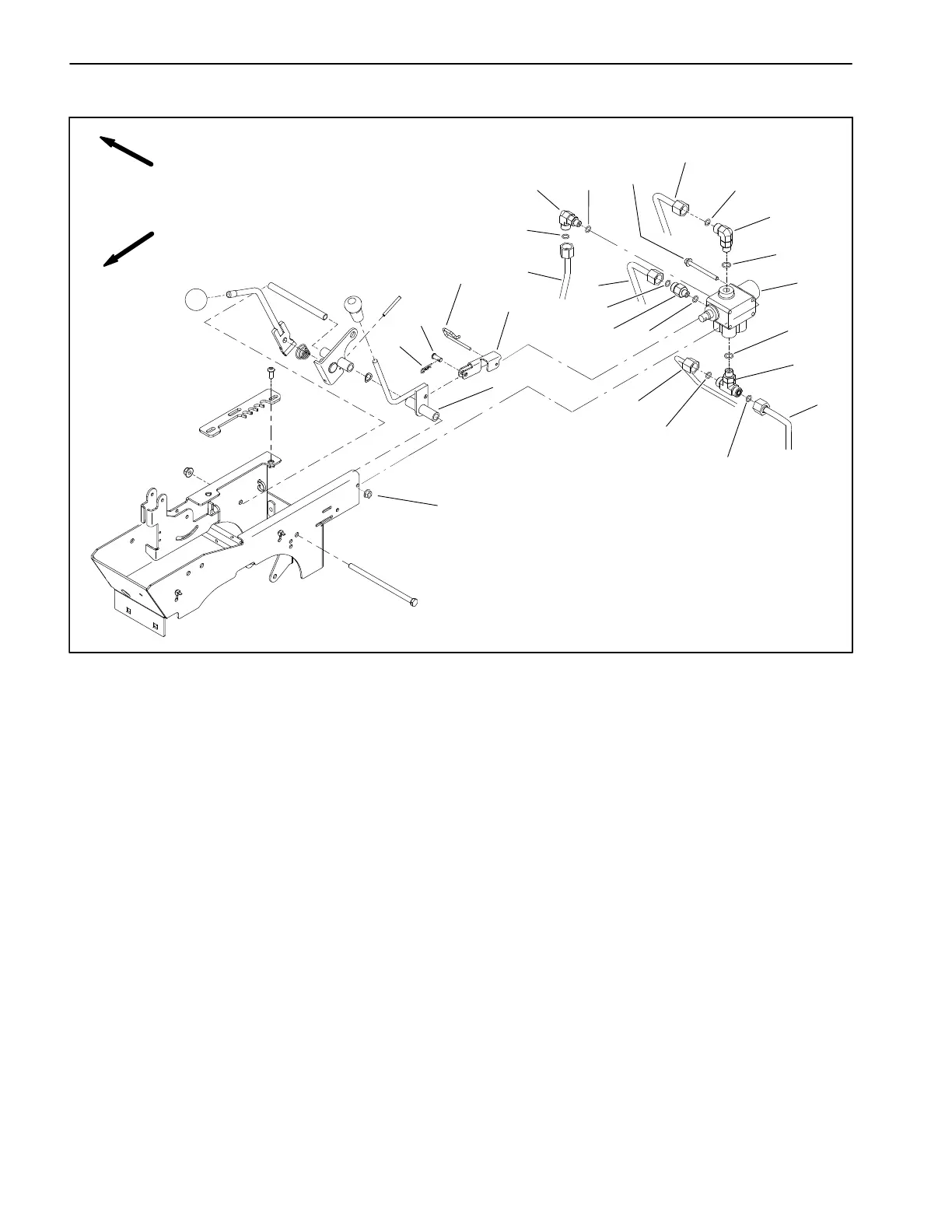

Lift Valve
1. Lift valve
2. O−ring
3. Tee fitting
4. Hyd. tube (steering circuit return)
5. O−ring
6. Hyd. tube (return to hydraulic filter)
7. Flange nut (2)
8. Lift lever
9. Clevis pin
10. Hairpin
11. Retainer pin
12. Link
13. 90
o
hydraulic fitting
14. Hyd. tube (to male quick fitting)
15. Hyd. tube (to female quick fitting)
16. 90
o
hydraulic fitting
17. O−ring
18. Hydraulic adapter
19. Flange head screw (2)
20. Hyd. tube (pressure supply)
Figure 34
1
2
3
4
5
6
7
8
9
10
FRONT
RIGHT
11
12
13
14
15
16
17
18
19
20
2
5
5
5
17
5
