Toro Workman HDX Auto - CVT Drive Belt

Workman HDX AutoPage 4 − 24Drive Train
CVT Drive Belt
1. Engine
2. Transmission
3. Primary clutch
4. Secondary clutch
5. CVT drive belt
6. Washer head screw (3)
7. Speed limiter cover
8. Banjo washer
9. Flange head screw (6)
10. Speed limiter assembly
11. Compression spring
12. Compression spring
13. Speed control hose
14. CVT enclosure cover
15. Washer head screw (9)
16. Washer head screw (2)
17. Spanner plate
18. CVT intake hose
19. Hose clamp (2)
20. Cylinder
21. Reservoir
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
4
17
18
19
20
19
21

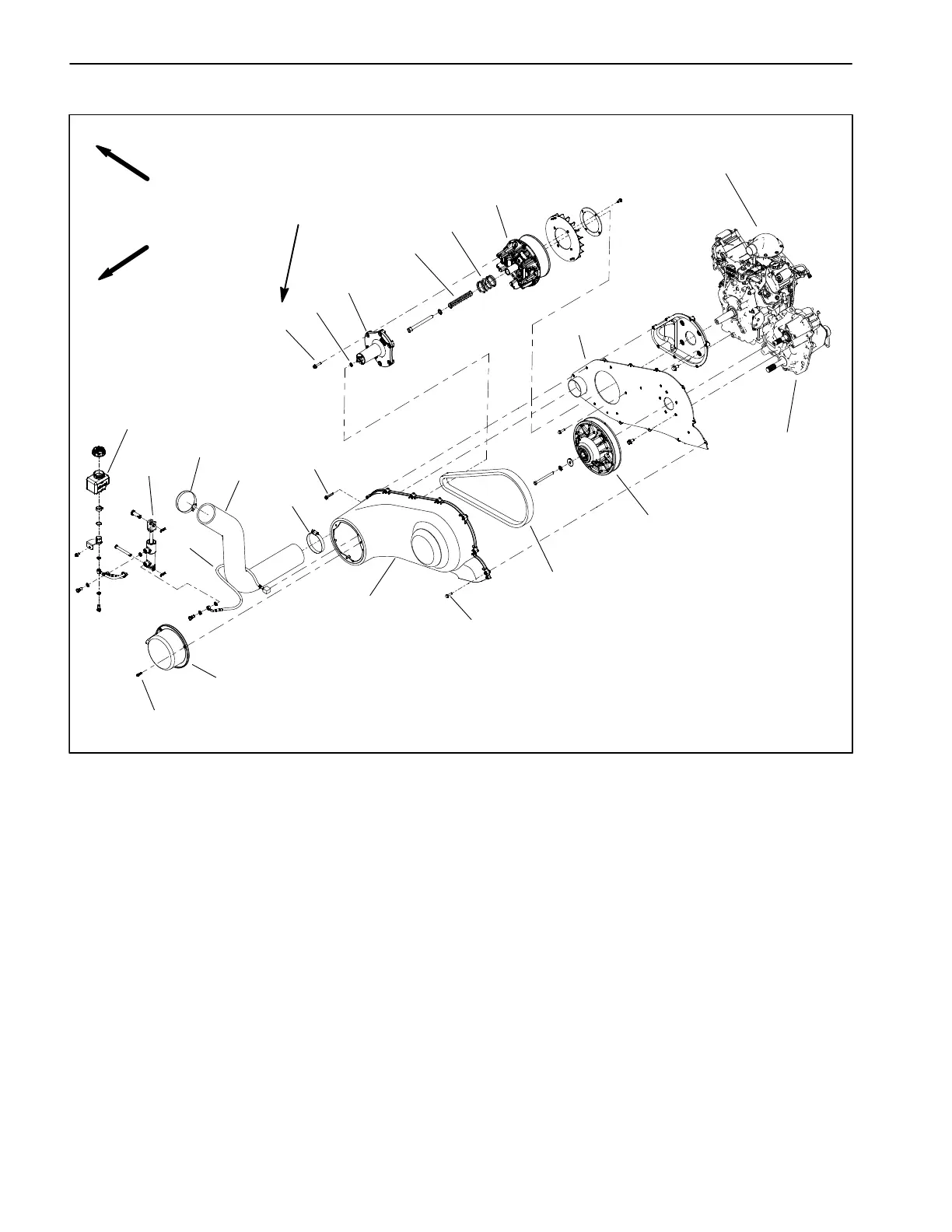

Figure 28
FRONT
RIGHT
105 to 120 in−lb
(11.9 to 13.5 N−m)
