Toro Workman HDX Auto - CV (Constant Velocity) Axle Assembly

Workman HDX AutoPage 8 − 4Four Wheel Drive (Optional Kit)
Service and Repairs

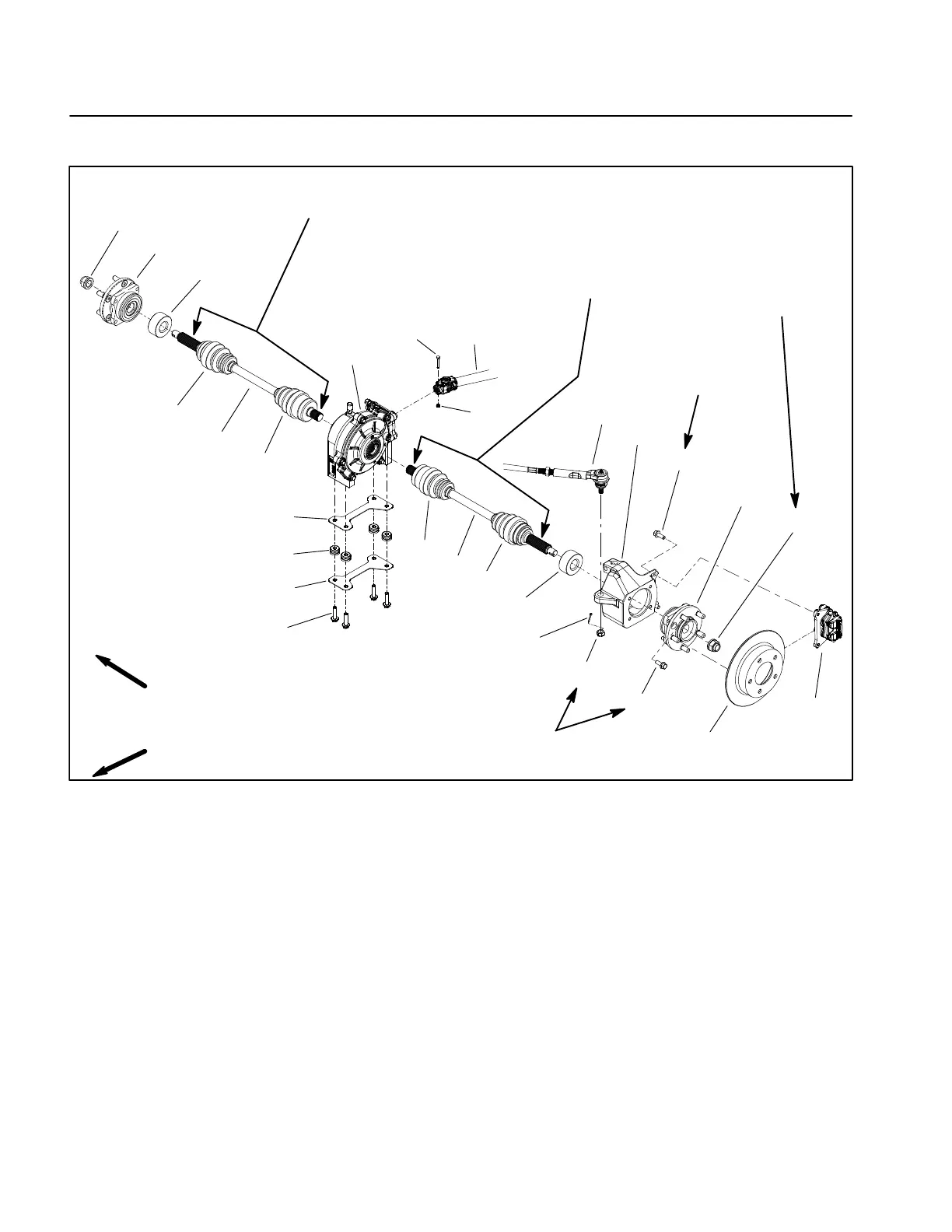

CV (Constant Velocity) Axle Assembly
1. Spindle nut
2. CV axle assembly (2)
3. Differential assembly
4. Flange head screw (4)
5. Driveshaft
6. Cap screw
7. Lock nut
8. Wheel hub assembly (2)
9. Tie rod assembly (2)
10. Axle spacer (2)
11. Flange head screw (8)
12. Brake caliper (LH shown)
13. Brake rotor (2)
14. Slotted hex nut (2)
15. Cotter pin (4)
16. Knuckle (LH shown)
17. Differential plate (2)
18. Mount (4)
19. Inboard boot (1 per axle)
20. Outboard boot (1 per axle)
Figure 1
FRONT
RIGHT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
10
8
11
16
17
17
18
170 to 180 ft−lb
(231 to 244 N−m)
Antiseize
Lubricant
Antiseize
Lubricant
35 to 40 ft−lb
(48 to 55 N−m)
35 to 40 ft−lb
(48 to 55 N−m)
19
19
20
20
