Toro Workman HDX Auto - Engine

Workman HDX Auto
Page 3 − 20
Kohler Gasoline Engine
Engine

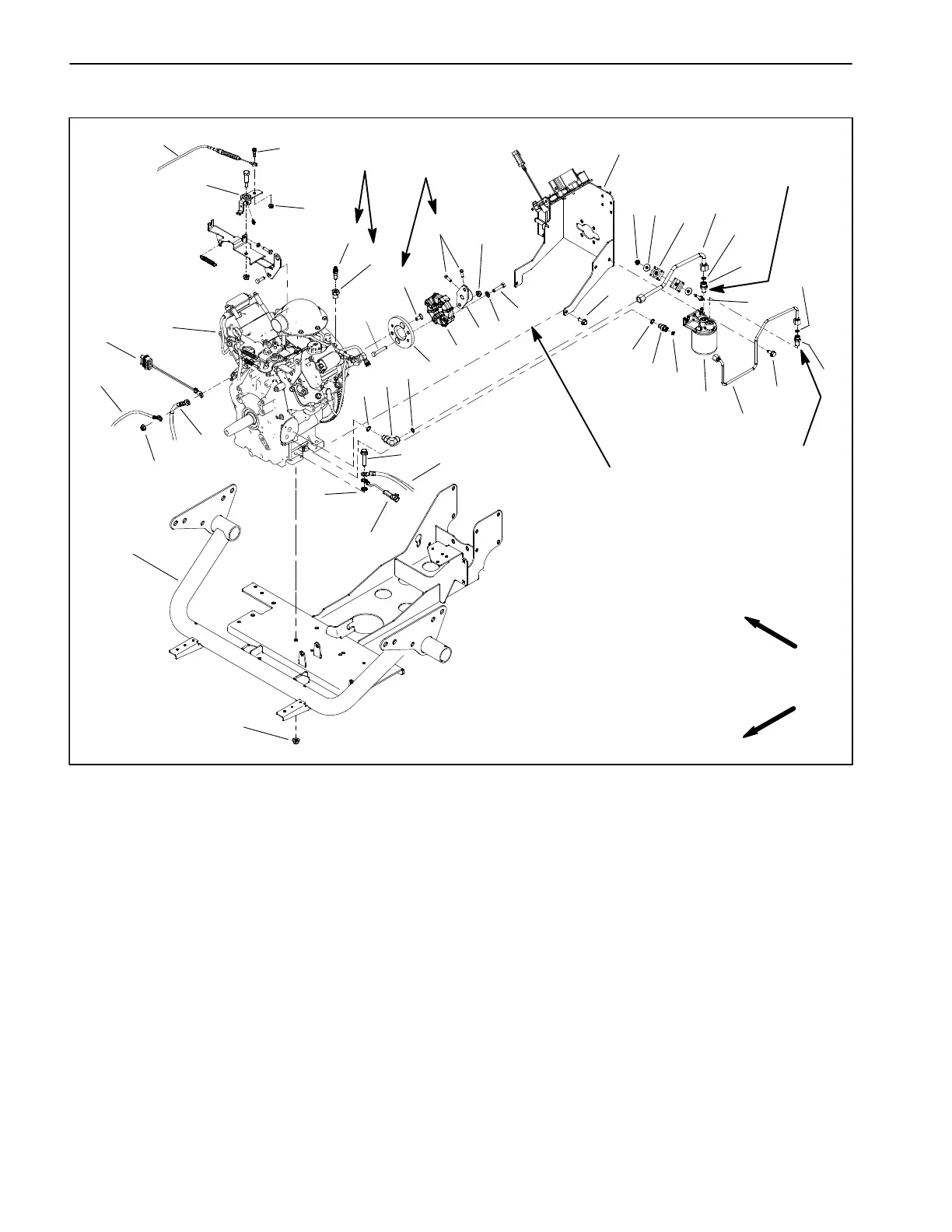

Figure 21
1. Engine
2. Sub−frame assembly
3. Pump mount
4. Fusible link harness
5. Positive battery cable
6. Regulator wire
7. Nut
8. Straight fitting
9. Temperature sender
10. Flange head screw (4)
11. Flange nut (4)
12. Lock washer
13. Wire harness ground
14. Negative battery cable
15. Cap screw (2)
16. Flat washer (2)
17. Rubber coupler
18. Pump coupler adapter
19. Cap screw (2)
20. Flange nut (2)
21. Pump hub
22. Set screw (2)
23. Socket head screw (2)
24. Flange head screw (2)
25. Oil filter assembly
26. Washer head screw (2)
27. Flange nut
28. Washer (2)
29. Tube clamp (2)
30. Flange head screw
31. Hydraulic tube
32. Hydraulic tube
33. Hydraulic fitting
34. O−ring
35. Hydraulic fitting
36. O−ring
37. O−ring
38. Hydraulic fitting
39. O−ring
40. O−ring
41. 90
o
hydraulic fitting
42. O−ring
43. Accelerator cable
44. Throttle bell crank
45. Flange nut
46. Shoulder bolt
FRONT
RIGHT
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19
20
4
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
Thread
Sealant
Thread
Sealant
Thread
Sealant
Thread
Locker
Thread
Locker
