Toro Workman HDX Auto - Front Differential

Workman HDX AutoPage 8 − 12Four Wheel Drive (Optional Kit)
Front Differential

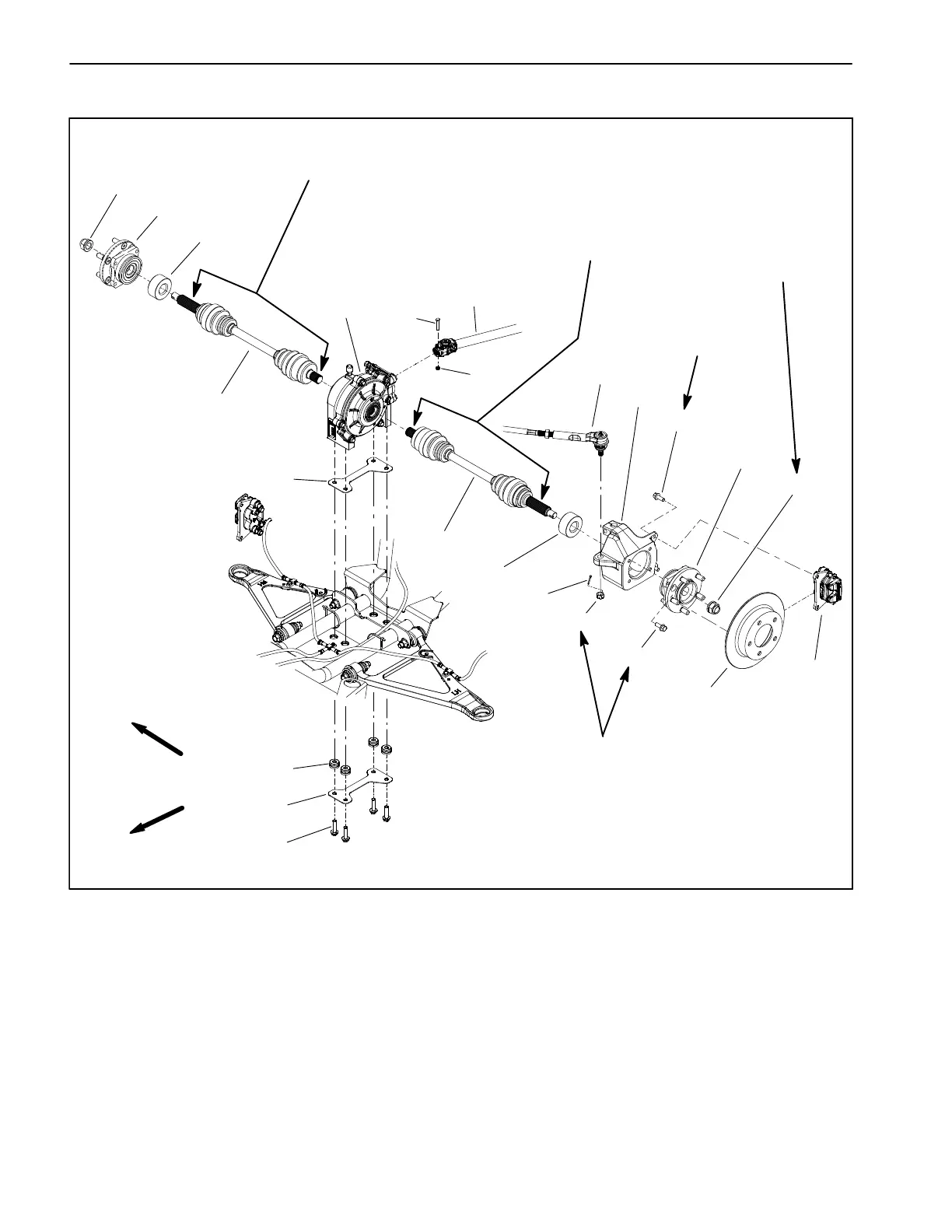

Figure 7
FRONT
RIGHT
1. Spindle nut (2)
2. CV axle assembly (2)
3. Differential assembly
4. Flange head screw (4)
5. Driveshaft
6. Cap screw
7. Lock nut
8. Wheel hub assembly (2)
9. Tie rod assembly (2)
10. Axle spacer (2)
11. Flange head screw (8)
12. Brake caliper (LH shown)
13. Brake rotor (2)
14. Slotted hex nut (2)
15. Cotter pin (4)
16. Knuckle (LH shown)
17. Differential plate (2)
18. Mount (4)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
10
8
11
16
17
17
18
35 to 40 ft−lb
(48 to 55 N−m)
35 to 40 ft−lb
(48 to 55 N−m)
170 to 180 ft−lb
(231 to 244 N−m)
Antiseize
Lubricant
Antiseize
Lubricant
