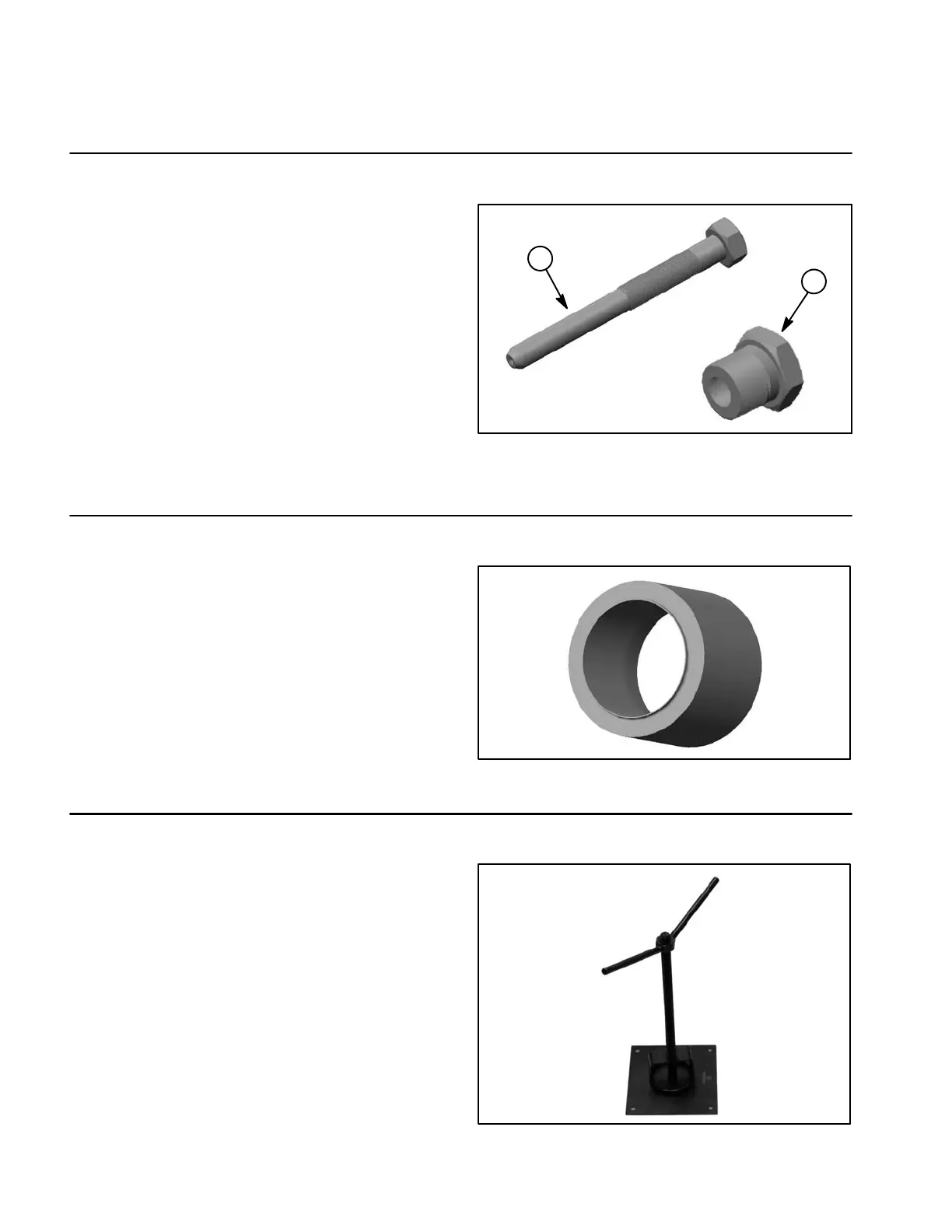

Workman HDX AutoPage 4 − 8Drive Train
Special Tools
Order the following special tools from your Authorized
Toro Distributor.
Clutch Removal Tools
The clutch removal tool is required to remove the prima-
ry clutch from the tapered drive shaft of the engine. It is
threaded into the primary clutch after the clutch retaining
screw is removed.
The clutch removal tool can also be used to remove the
secondary clutch from the transmission input shaft. An
adapter is required to allow the clutch removal tool to be
used to remove the secondary clutch.
Clutch Removal Tool: TOR6032
Secondary Clutch Adapter: TOR6033
1. Clutch removal tool 2. Adapter
Figure 7
2
1
Piston Installation Tool
The piston installation tool is used to install the piston in-
to the speed limiter assembly.
Toro Part Number: TOR6034
Figure 8
Secondary Clutch Press Tool
The secondary clutch press tool is used to compress the
compression spring in the secondary clutch to allow re-
moval of the retaining ring and separation of the clutch
sheaves.
Toro Part Number: TOR6027
Figure 9
