Toro Workman HDX Auto - Hydraulic Reservoir

Workman HDX AutoPage 7 − 30Hydraulic System

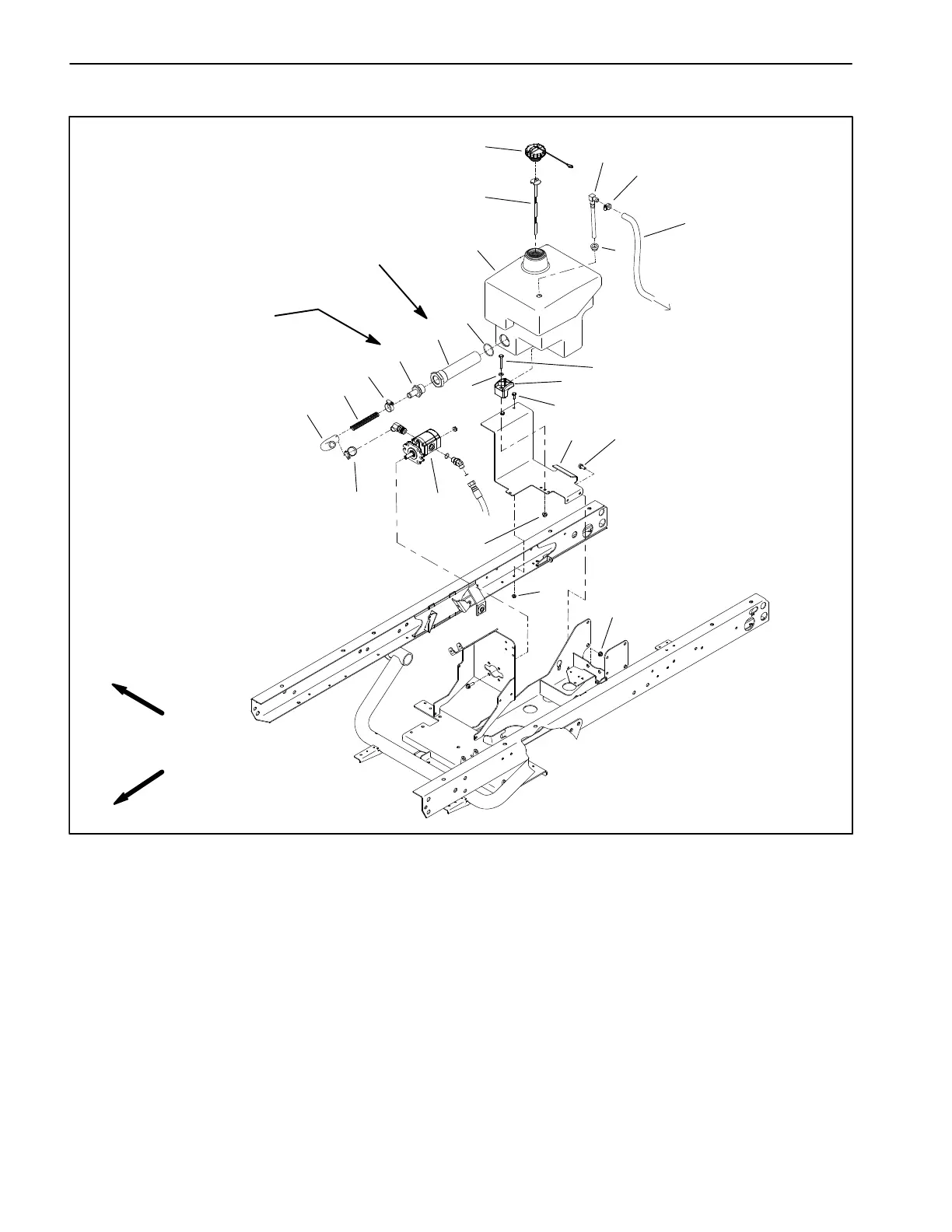

Hydraulic Reservoir
1. Hydraulic reservoir
2. Dipstick
3. Reservoir cap
4. Hydraulic hose
5. Hose clamp
6. Standpipe
7. Bushing
8. O−ring
9. Strainer
10. Barbed fitting with O−ring
11. Hose clamp (2)
12. Spring
13. Suction hose
14. Gear pump
15. Cap screw
16. Flat washer
17. Clamp
18. Reservoir mount
19. Flange head screw (2)
20. Flange head screw (2)
21. Flange nut (3)
22. Flange nut (2)
Figure 24
FRONT
RIGHT
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19
20
4
21
22
11
21
TO OIL
FILTER
90 to 110 ft−lb
(123 to 149 N−m)
55 to 60 ft−lb
(75 to 81 N−m)
HYDRAULIC RESERVOIR FOR
STANDARD HYDRAULICS
The hydraulic reservoir on all Workman HDX Auto vehi-
cles is the same. Vehicles with standard hydraulics use
a single section gear pump and single suction hose
(shown in Fig. 24). Vehicles with high flow hydraulics use
a two (2) section gear pump with two (2) suction hoses
(shown in Fig. 25).
NOTE: Refer to your Operator’s Manual for checking
hydraulic fluid level in the reservoir.
