Toro Workman HDX Auto - Fuel Tank

Workman HDX Auto
Page 3 − 8
Kohler Gasoline Engine
Fuel Tank

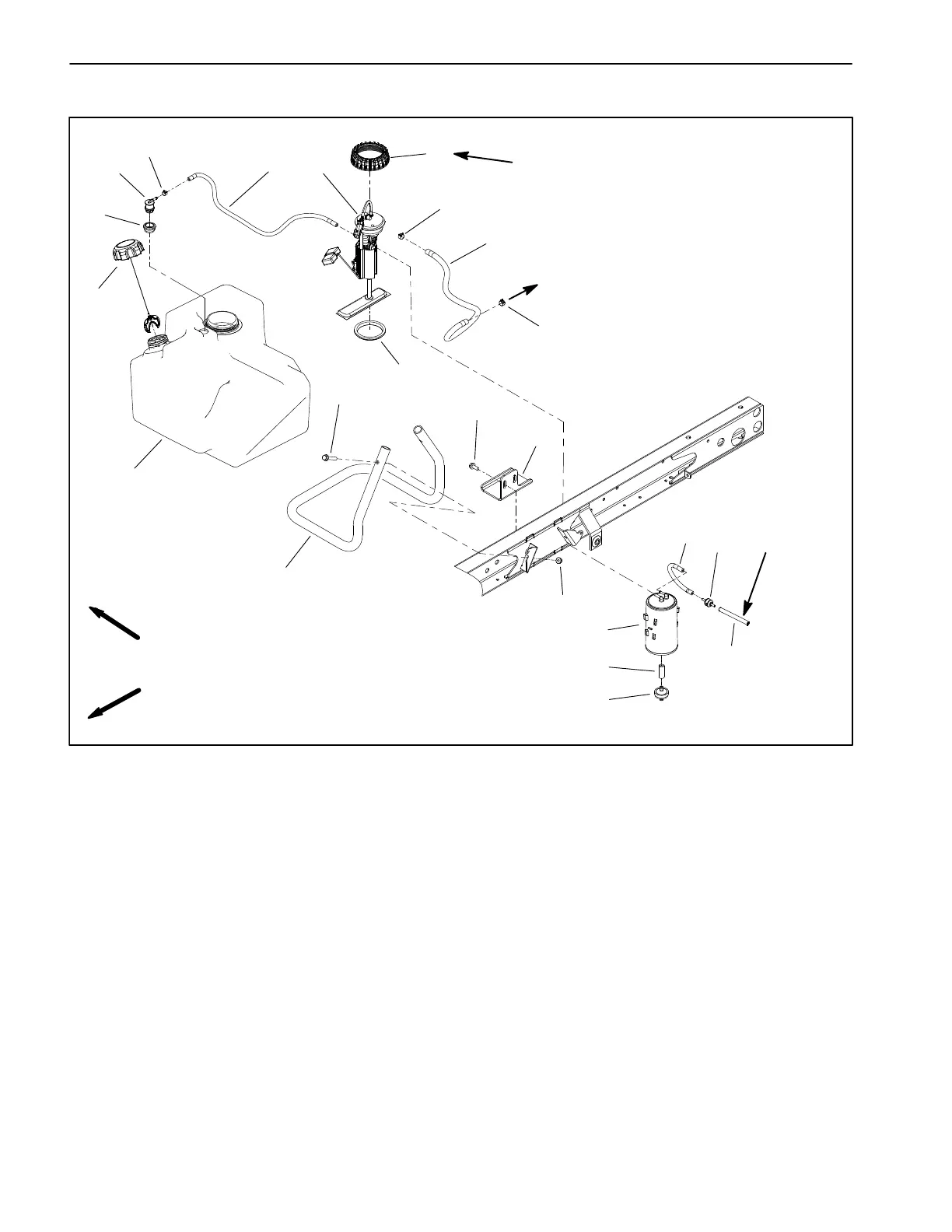

Figure 8
1. Support tube
2. Washer head screw (2)
3. Flange nut (2)
4. Fuel tank
5. Grommet
6. Rollover valve
7. Retainer plate
8. Washer head screw (2)
9. Fuel tank cap
10. Fuel pump assembly
11. Carbon canister
12. Hose clamp (2)
13. Fuel hose
14. Fresh air filter
15. Vacuum check valve
16. Hose clamp
17. Fuel supply hose
18. Tank vent hose
19. Fuel hose (2)
20. Fuel pump retainer
21. Gasket
FRONT
RIGHT
175 to 200 in−lb
(20 to 22 N−m)
TO ENGINE
PURGE PORT
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19
20
4
21
12
19
TO ENGINE
FUEL INLET
