Workman HDX AutoPage 4 − 36Drive Train

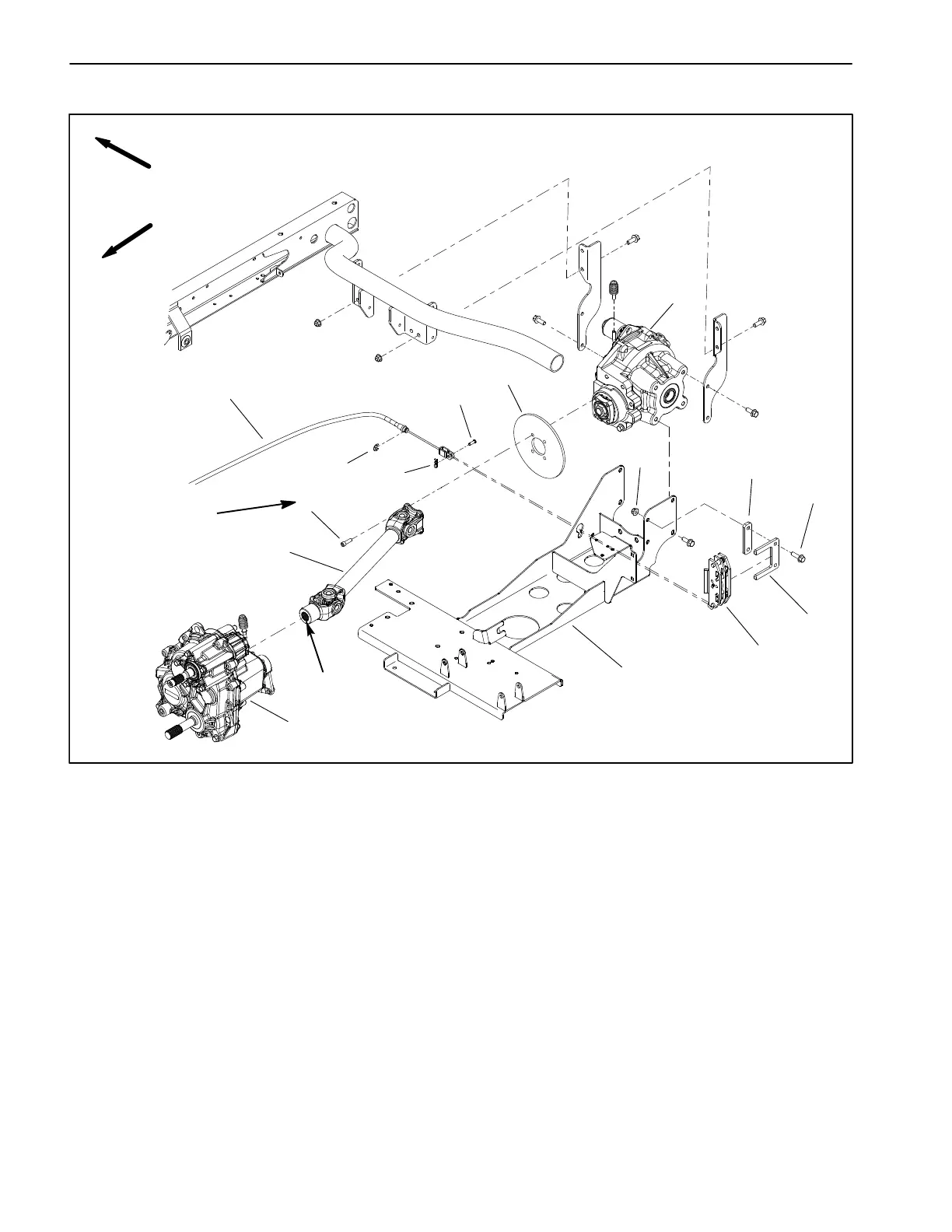

Rear Driveshaft
1. Transmission
2. Rear differential
3. Rear driveshaft
4. Socket head screw (4)
5. Parking brake rotor
6. Parking brake caliper
7. Flange head screw (2)
8. Lock nut (2)
9. Brake mount plate
10. Spacer
11. Parking brake cable
12. Clevis pin
13. Hair pin
14. Retaining ring
15. Engine/transmission mount
Figure 41
FRONT
RIGHT
23 to 27 ft−lb
(32 to 36 N−m)
2
3
6
8
9
10
11
13
1
5
7
12
14
4
15
Grease
