Toro Workman HDX Auto - Front Differential Service

Workman HDX AutoPage 8 − 14Four Wheel Drive (Optional Kit)
Front Differential Service
1. O−ring
2. O−ring
3. Set screw
4. Flange head screw (9)
5. Bearing (2)
6. Bearing
7. Bushing
8. Bushing
9. Bushing
10. Oil seal (2)
11. Oil seal
12. Internal retaining ring
13. Retaining ring
14. Input cover
15. Cover plate assembly
16. Ring gear
17. Gear case
18. Thrust bearing
19. Roller cage assembly
20. Output hub (2)
21. Gear shim
22. Roller (14)
23. Torsion spring
24. H−clip spring (14)
25. Thrust button
26. Gear spacer
27. Pinion gear
28. Armature plate
29. Plug clip
30. Drain plug
31. Fill plug
32. Vent

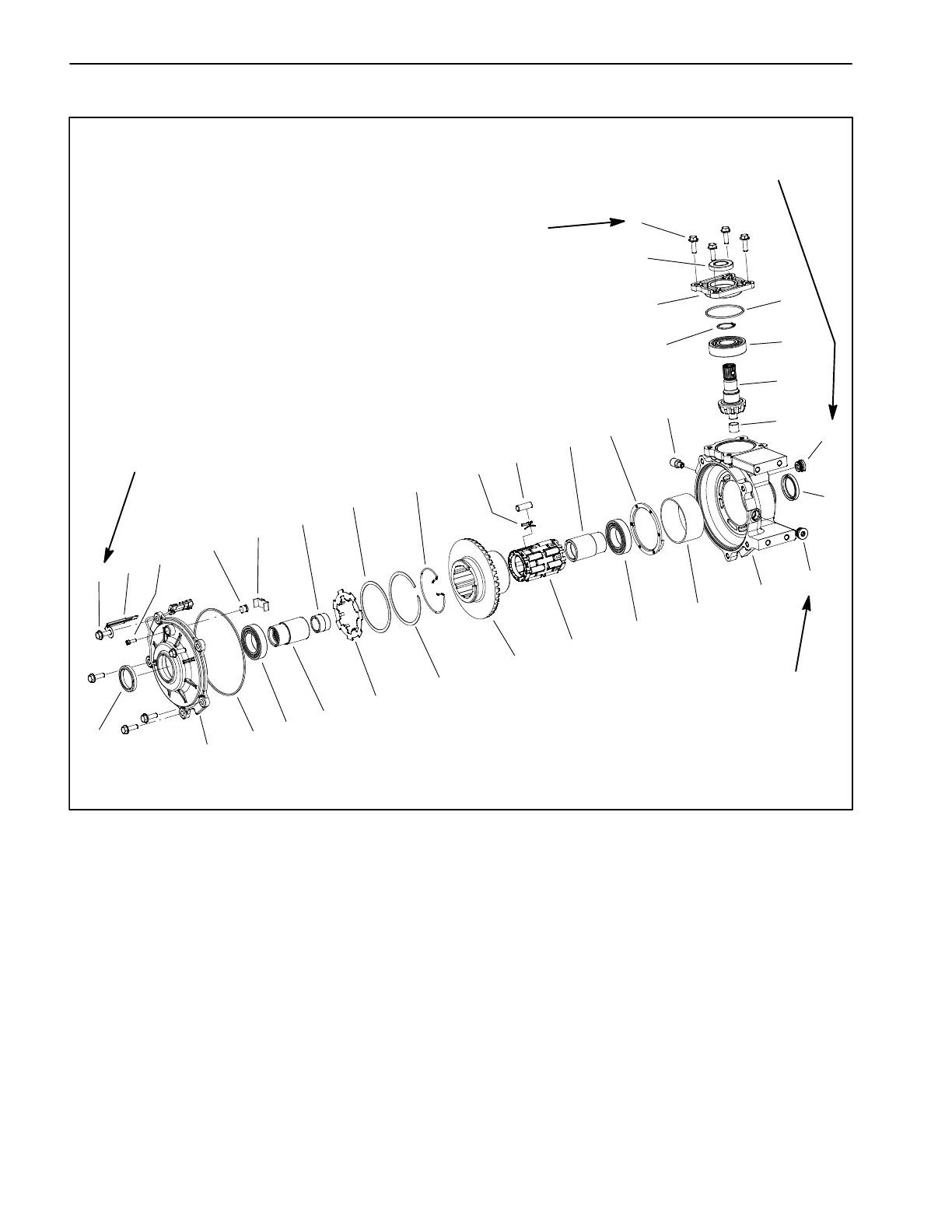

Figure 8
14 to 20 ft−lb
(19 to 27 N−m)
14 to 20 ft−lb
(19 to 27 N−m)
8 to 30 ft−lb
(11 to 17 N−m)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
18
19
20
21
22
23
24
25
26
27
28
29
31
32
20
5
10
4
17
30
8 to 30 ft−lb
(11 to 17 N−m)
